Specifications
1.ip65 socket waterproof2.10A/15A 250V/125V
3.Approval:CCC
4.Standard:GB17465.1 GB17465.2
5.100% test before shipment

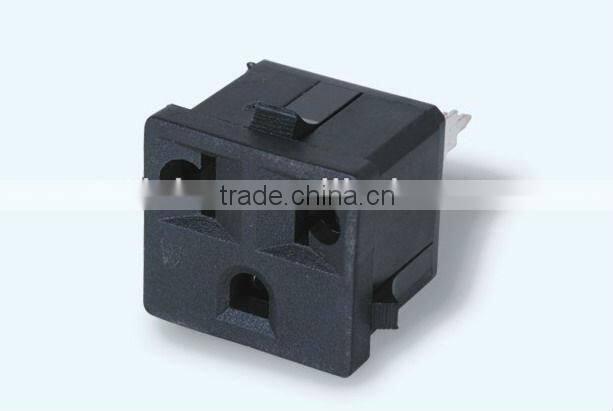

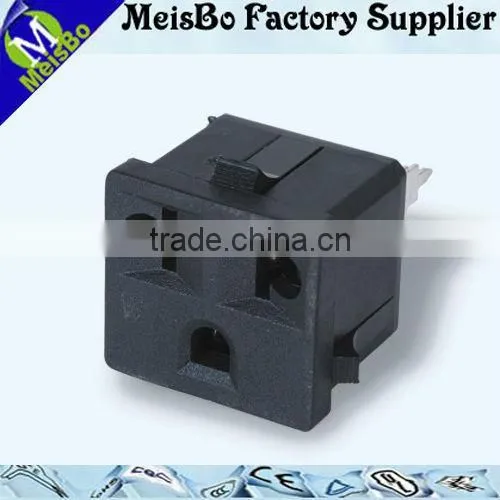

15A/10/ 125V/250V American or Euro ip65 socket waterproof
Production Specification
Actuator (non-lighted): Nylon 66 94V-2
Actuator (lighted): Polycarbonate
Case: Nylon 66 94V-2
Spring: teel Wire
Contacts: Silver Alloy
Movable Arm: Silver-Plated Copper Alloy
Terminal :Tin-Plated Copper Alloy
Ratings:10A 15A 250V 125V
Electrical Life at Rated Load:10,000 (VDE)
6,000 (UL)
Dielectric Strength:1500vac ac/min
Insulation Resistance: 100MΩ min
Initial Contact Resistance: 50MΩ max
Temperature Range: -25°C to +85°C
