Female jack dc plug connector tip

Specifications

1.Female jack dc plug connector tip
2.Material:Copper
3.Rated Load:DC 30V 0.3A
4.Certificate:CE
5.Color:black

Female jack dc plug connector tip









































World DC Power Jack Selling point :



1.Can use in more than 150 countries
2.Good quality with elegant apperance
3.CE ROHS approved



Quality World DC Power Jack :



1.Product Details.

1)Converts UK/US/AU/EU Plugs,with universal socket for use in

more than 150 countries, ensuring that you`ll never need another

adapter.

2)Press button to slide out the appropriate plug for instant power

or to charge your device.

3)elegant outlook,easy-taking size and package makes you feel

different and superior.

4)It's Compact, self-contained unit eliminates the tangle of

regular adapters for exceptional ease-of-use. Safety release

button and built-in fuse ensure safe operation every time.

5)Has safety shutter to protect against electric shock.

6)1 year Warranty

2.Technical detalis DC Power Jack :


1.Body Material:USE Best PC Originated from GE/LG/BYER

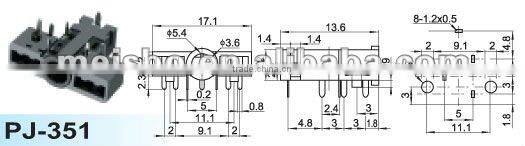

   Model:PJ-351

   Type:DC power jack .
   Available Color:Black,white,gray,green,pink,blue,yellow.
   Max.power:DC 30V  0.3A

   Contact Resistance: 0.03Ω max

   Insulation Resistance :100MΩ min

   Withstand Votage :AC 500V(50Hz)/min

   Insertion and Extaction Force:3~30N

   Temperature: -20~70°C

    Life: 5000 cycles

2.Standard:Fully CE&CCC Approved.
   Package:White box,500pcs/Carton.
   Carton Size: 54.50*27.50*46.50 CM.
