Roll to Roll Silk Screen Printing Machine

Roll to Roll Silk Screen Printing Machine photo-1
US$ 5,000 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Guangdong, China
Brand Name:
HFT
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Guangdong, China
Brand Name HFT
Model Number HFT-320 screen press
Usage Paper Printer
Automatic Grade Automatic
Gross Power 13KW
Dimensions(L*W*H) 3500X1000X150

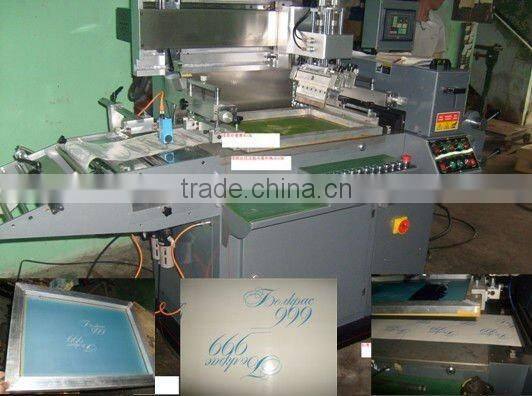

HFT-screen-2-300 roll to roll silk screen printing machine

Has English spoken technology team to do after sales in Egypt, Russia, Vietnam, Bangladeshi, U.A.E. Indonesia.
roll to roll silk screen printing machine

roll to roll silk screen printing machine

roll to roll silk screen printing machineroll to roll silk screen printing machine

roll to roll silk screen printing machine

is high quality full automatic silk-screen machine making printing, and UV solidifying as a whole, can reprint many times and make contraposition exact, and has the features of beautiful design, automatic feeding, and simple and convenient printing operation.



1.Adopt full automatic CNC equipment. Human-computer touch screen shows all the functions and makes printing operation simple and convenient.


2.Set the speed and length arbitrarily, and count printing amount exactly. Set numerical ??#118alue automatic stop when there are no filling materials.


3.Automatic feed, digital computer trace, adjust hectograph a little back and forth and left and right, exact hitching position, can reprint many times.


4.Printing scraper adopts Japanese famous brand mumerical control servo motor system, makes print position exact, and promotes accuracy of hitching position greatly coordinating with pull paper servo system .


5.The air-powered module and cylinder all adopt imported brand name products.


6.Numerical control paper servo motor system adopts Japanese brand name products, and makes overprint exact, and has strong paper throw stability and long life.


7.The UV solidifying system, specially designed by the factory, Its special low temperature design makes printing heat sensitive paper and film paper not become deformed because of temperature, has high accuracy in quadric printing and turning over cover.and gets the praise and appreciation of the industry.

8.Can print special material, such as PVC, PET, transfer paper, film, Dacron, self-adhesive trademark paper and so on.


Main technical parameter:

Type

screen-2-300

Maximum printing width in mm

300

Maximum printing speed: r/min

80

Printing Area:mm

300MM 80MM

Screen size:mm

500MM50MM

Power:kw

13

Mechanical Dimensions:mm

L3550, 1000, 1800

Weight in kg

1800
