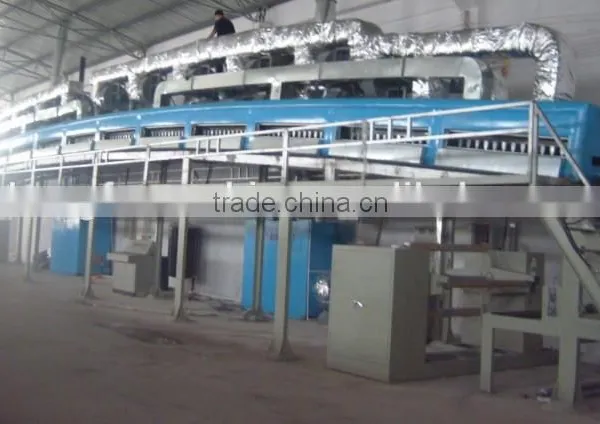

1. Fuction
1. Unwinder: Chain-style turret, controls tension by magnetic-power brake with manual adjustment and alignment. non-stoping exchanging shaft.
2. The prime glue Coater: the fixed quantity to the film in accordance with the clearance between rubber roller and embossing roller.
3. Nozzle of the oven is designed with the knock-down aluminum-alloy pieces and the inner heat preservation plate is made of stainless steel. Multi-zone temperature control design is employed and can accurately control temperature at each zone..
4. Tension of the belt could be manually adjusted through the coating suction table.
5. The frame canvas sets are designed with EPC alignment mechanism and pneumatic canvas tensioner.
6. The cooling pull station consists of the cooling roller and pull roller.
7. Coater: Comma Scrape model. Precision: 0.002MM
8. Fully-automatic low-tension stacking machine and surface rewinder. The are all respective one set of independent equipment each and controlled by PLC controller. Making operation simple and easy.
9. Effetive width for mechanical processing: 1.3M. 1.6M.
10. Width of base material:800-1600mm.
11. Diameter of base material: Max. unwinding diameter 800mm. non-stoping exchanging for rewinding shaft.
12. Mechanical speed: Max 200m/min
13. Coating speed: Max 200m/min.
14. PLC controlled.
2.What can we offer ?
Whole production line for making adhesive paper and tape, from coating machine, slitting
machine, cutting machine to printing machine. Turn on key base offer.
3. Why choose Hongfat?
The best choice for turn on key offer.
3.1 Hongfat can really help you to set up the coating factory from zero, no matter machine
production, installing, training for operator, maintenance, raw material supplier identify and
business convoy.
3.2 He can lend you English-speaking operator.
3.3 Some machine is 3 years’ guarantee.
3.4 English-speaking engineers have the experiences of serving more than 20 countries.
They are many company which is much bigger than Hongfat, they are
many company who can make good machine as Hongfat. Especially, when
we talk about machine, we like to say German machine is good. While after
they get your money, few of them can really be patience to set up your
business from Zero. Especially when your request seems out of their duty,
Especially the job is beyond the duty of machine seller.
If you have good experience already and just want good machines. Hongfat is one of your
choice. If you want to set up the coating factory from Zero, Hongfat is your only choice.
4.Machine guarantee?
2 years

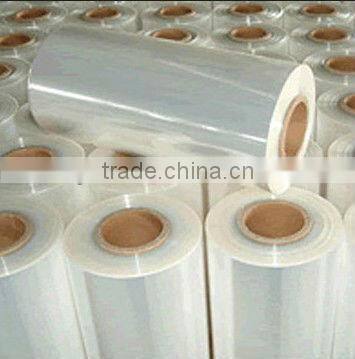

5.Sample produced by coating machine

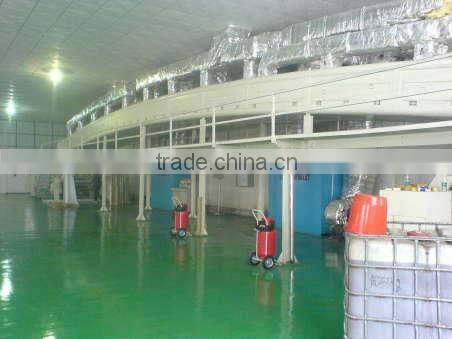

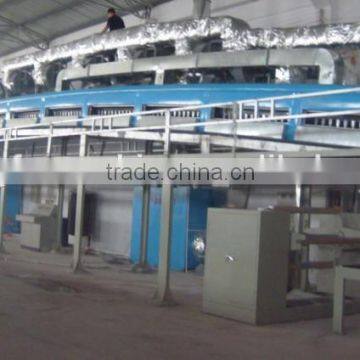

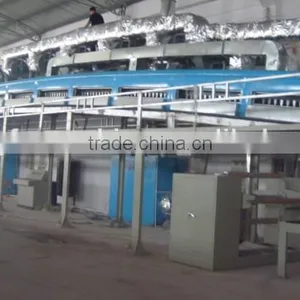

6..Factory view and export loading
7.Fair in overseas
