1.Fuction
The HFT-1600 Sticker paper coating machine is widely used for coating :
Sticker paper, Masking paper,Adhesive paper, Foam tape,Lable paper,Double sides adhesive tape, Stationary tape, Kraft paper coating ,Masking tape,Electrical insulation tape ,reflective tape and so on .
2.Main Parameter
Model | HFT1600 |
Coatingwidth | 1600mm |
Material | Roll material such as film, Paper, Cloth, Foil, etc. |
Unwinding dia. | φ300~1500mm |
ewinding dia. | φ300~1500mm |
Oven temperature | 30 ~ 220°C(According to the material) |
Oven length | 3 ~ 48 m (According to the material) |
Coating speed | 10 ~ 100 m/min (According to the material) |
Coating type | Comma scraper coating, Micro gravure coating, Mayer bar coating, three-rollers coating, etc. |
Heating tyope | Electric heating, steam heating, oil heating, etc. |
1.Heating oven could be opened by hydraulic,The guide roller in the oven was driving synchro.
2.HMI ,Man and machine face to face interface touch.
3.Rewinding controlled by auto diminishing taper tension,it could avoid the materials damaged.
4. High precision auto edge correction system,
5.With inflammable gas detecting alarm (suitable for solvent glue );automatically controlled program after alarm,the speed reduces to 1m/min, if the fault can’t be removed after 3 minutes,the machine will stop.
6.This machine should be installed on firmly cement ground, need no special foundation, fix expansion bolt on key parts

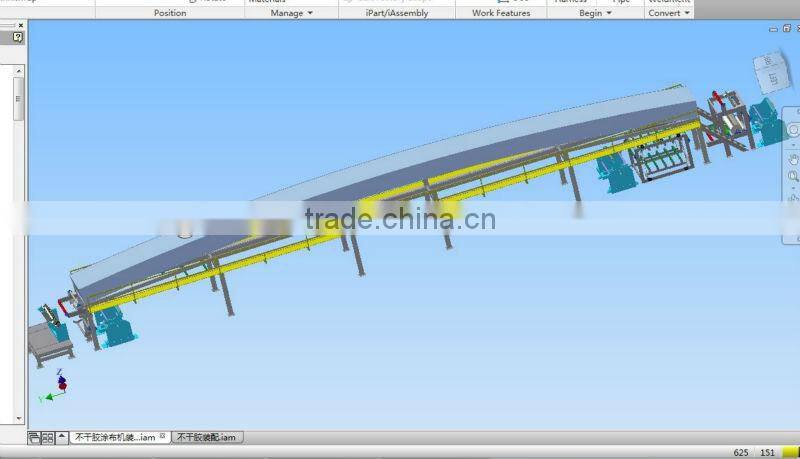

3-D view of main part

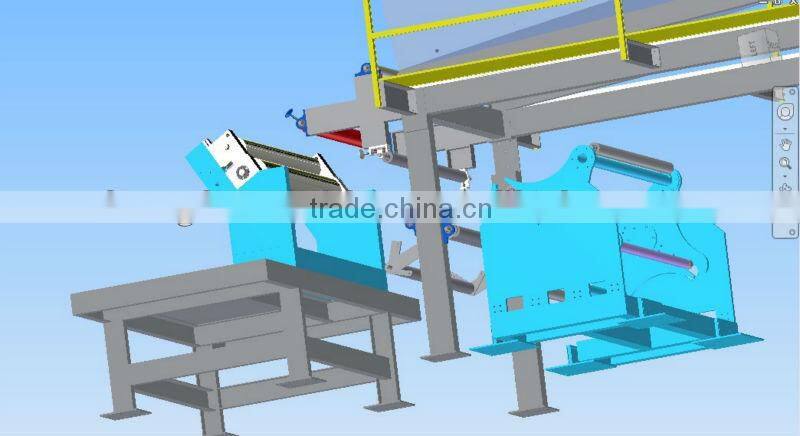

Precision coating head and non-stoping unwinding

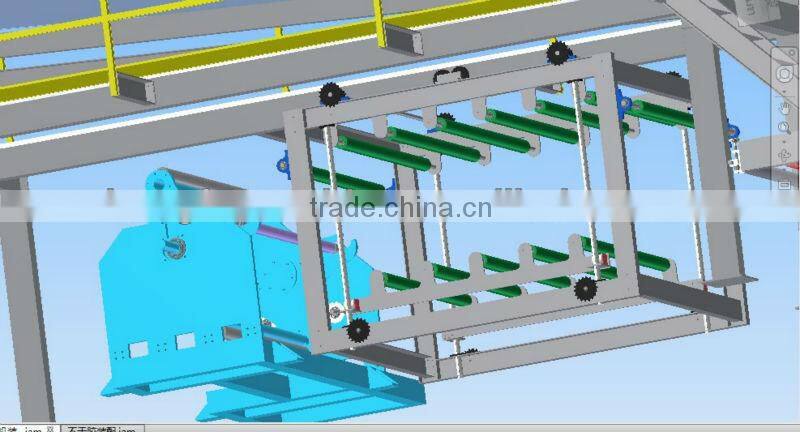

Automatic unwinding
3.What can we offer ?
Whole production line for making adhesive paper and tape, from coating machine,
slitting machine, cutting machine to printing machine. Turn on key base offer.
4. Why choose Hongfat?
The best choice for turn on key offer.
4.1Hongfat can really help you to set up the coating factory from zero, no matter
machine production, installing, training for operator, maintenance, raw
material supplier identify and business convoy.
4.2 He can lend you English-speaking operator.
4.3 Some machine is 3 years’ guarantee.
4.4 English-speaking engineers have the experiences of serving more than 20 countries.
They are many company which is much bigger than Hongfat, they are
many company who can make good machine as Hongfat. Especially, when
we talk about machine, we like to say German machine is good. While after
they get your money, few of them can really be patience to set up your
business from Zero. Especially when your request seems out of their duty,
Especially the job is beyond the duty of machine seller.
If you have good experience already and just want good machines. Hongfat is one of your
choice. If you want to set up the coating factory from Zero, Hongfat is your only choice.
5Machine guarantee?
2 years
6.Sample produced by this machine
7..Factory view and export loading
8.Fair in overseas
