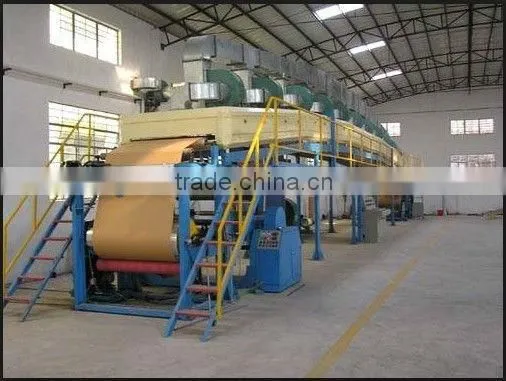

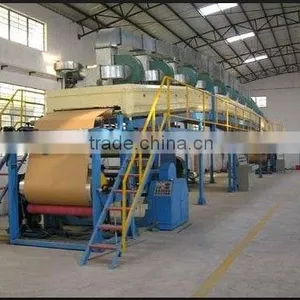

Help CenterHFT- Kraft Paper Coating Machine
Related Products
-
HFT-PVC Film Coating MachineUS$ 100,000 - 250,000MOQ: 1 Set -
HFT-PP Film Coating MachineUS$ 100,000 - 300,000MOQ: 1 Set
-
HFT-1600 BOPP Bar Coating MachineUS$ 80,000 - 280,000MOQ: 1 Set
-
HFT-1600 Double Faced Adhesive Tape Coating MachineUS$ 80,000 - 100,000MOQ: 1 Set
-
HFT-adhesive Paper Coating MachineUS$ 100,000 - 300,000MOQ: 1 Set
Kraft paper coating machine is suitable for kraft paper coating, sticker paper coating, adhesive paper coating, silicon paper coating, double faced paper coating, PET film coating, PVC film coating, PE tape coating, etc.
1.Application:
Our HFT- MULTI-FUNCTIONAL KRAFT PAPER COATING MACHINE is widly used for making kraft paper, termal paper, silicon paper,adhesive paper, label paper ,adhsevie tape ,release paper ,glassine paper, alumium,CPP ,PET ,Bopp ,Fabric , wet laminating reels ETC.
2.Characteristics:
1.Heating oven could be opened by hydraulic,The guide roller in the oven was driving synchronous with host machine
2. HMI ,Man and machine face to face interface touch screen.
3. High precision auto edge position correction system,Rewing roll will have high precision edge neat
4. With inflammable gas detecting alarm (select for solvent glue );
5. NON-Stop Machine station(Optional)
6. Double layers cycle drying oven, Both sides coating could be finished in One step. (Optional)
7. Each heating section is controlled independent. .
7. Current output type temperature control system makes heating quicker and electricity saving
8. Rewinding controlled by auto diminishing taper tension,it could avoid the materials damaged
9. Machine should be installed on firmly cement ground, need no special foundation, fix expansion bolt on key parts
Common matters |
Raw material |
Kraft paper,PET, BOPP, PVC, PE, PI,Fabric ,Copper foil,Aluminum foil, etc., (User Advice) |
Machine speed |
100-180m/min |
|
Tasks speed |
80-150m/min |
|
Raw material width |
500~1600mm |
|
Guide Roll |
Hard chrome surface treatment |
|
WINDER |
Unwinding & rewinding part |
2-axis turrent type |
Reel outer Dia |
Φ600, Φ800, Φ1000, Φ1200mm |
|
How to connect raw material |
Automatic or manual connection |
|
Splicing type and direction |
Flying Arm(T/B), Tapeless(T/B) |
|
Air-Shaft fixing type |
3" Shaft |
|
Dryer |
Chamber inner temperature |
Max. 200°C (User Advice) |
Heating source |
Electric heating, Gas Heating, Thermal Oil, Steam heating (User Advice) |
|
Unit Dryer length |
3m |
|
Coating Head |
Developed unit |
There are Comma, Gravure coating method .(Mayer bar could be fixed follow Users) |
3. 3-D View of main parts
4. What can we offer ?
Whole production line for making adhesive paper and tape, from coating machine, slitting
machine, cutting machine to printing machine. Turn on key base offer.
5. Why choose Hongfat?
The best choice for turn on key offer.
5.1 Hongfat can really help you to set up the coating factory from zero, no matter
machine production, installing, training for operator, maintenance, raw
material supplier identify and business convoy.
5.2 He can lend you English-speaking operator.
5.3 Some machine is 3 years’ guarantee.
5.4 English-speaking engineers have the experiences of serving more
than 20 countries.
They are many company which is much bigger than Hongfat, they are
many company who can make good machine as Hongfat. Especially,
when we talk about machine, we like to say German machine is good.
While after they get your money, few of them can really be patience
to set up your business from Zero. Especially when your request seems
out of their duty,Especially the job is beyond the duty of machine seller.
If you have good experience already and just want good machines. Hongfat
is one of your choice. If you want to set up the coating factory from
Zero, Hongfat is your only choice.
6. Machine guarantee?
2 years

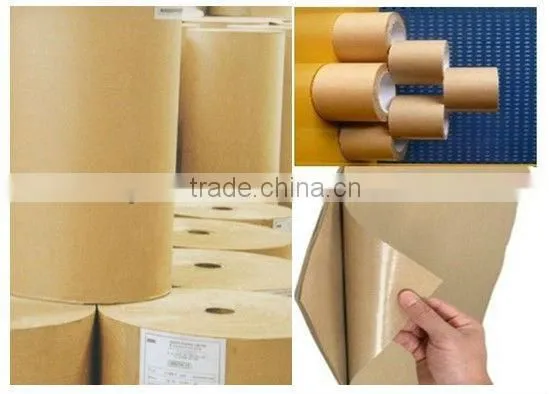

7. Sample produced by the machine
8. Factory view and export loading
9. Fair in overseas
