rebar construction equipment anchor

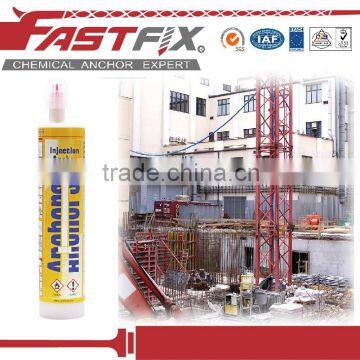

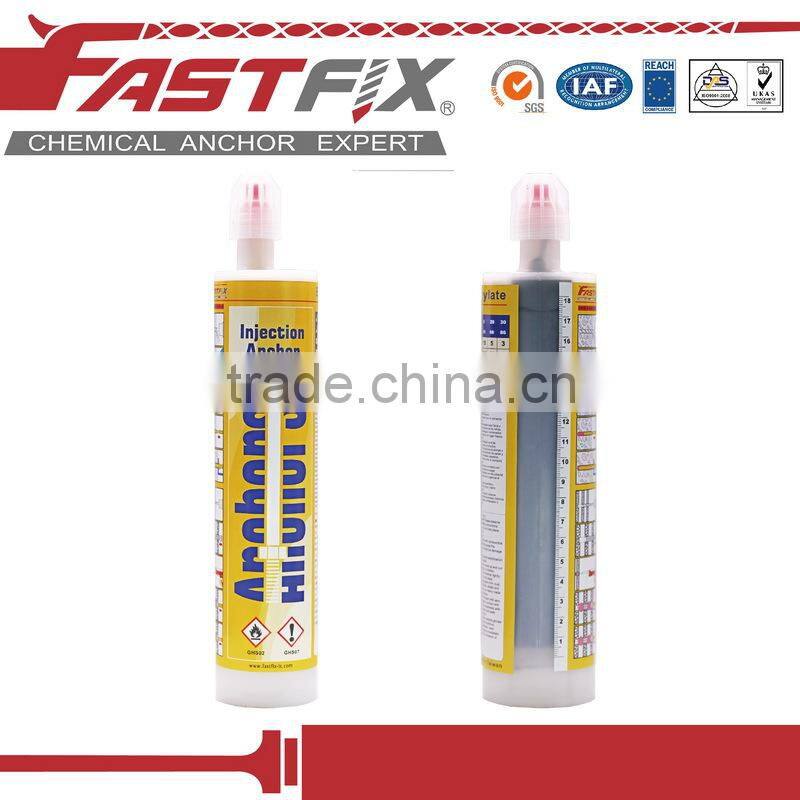

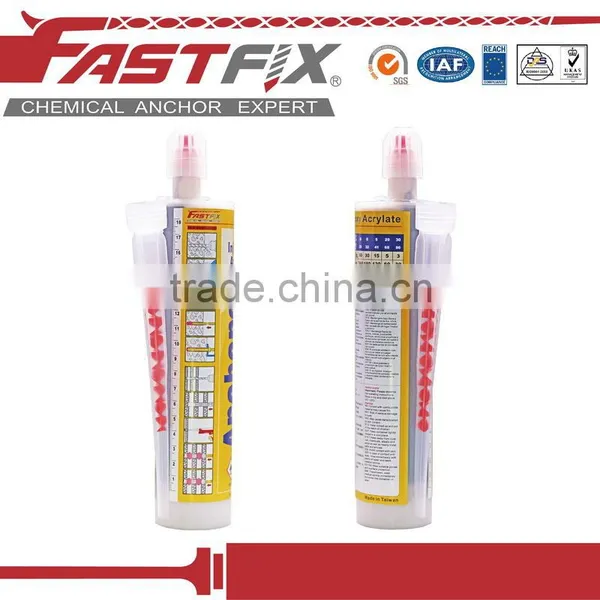

Product Name: Injection Cartridge (Epoxy acrylate stryrene free resin)
Product Code: FX-V 280
Product Description: Solvent-free, epoxy based, two part high performance anchoring adhesive.
Uses: For the fixing of non-expanding anchors in the following:
u For structural work:
- Rebar / steel reinforcement anchoring in new and refurbishment works.
- Threaded rods
- Bolts and special fastening systems
u Mechanical and electrical services installation:
- Anchoring of supports for ducting and equipment.
u Metal Work, carpentry
- Fixing of handrails, balustrades and supports
- Fixing of railings
- Fixing of window and door frames
For fixing of the following substrates:
- Concrete
- Hard natural and reconstituted stone
- Solid rock
- Hollow and solid masonry
- Steel
- Wood
Product Details:
1.
Drill hole to the diameter and depth required. The diameter must be in accordance with anchor size.
2.
The drill hole must be cleaned with air blower, starting from the bottom of the hole.
The drill hole must be thoroughly cleaned with steel brush. After brush, to use air blower to clean the drill hole again.
3.
Inject the adhesive into the hole, starting from the bottom, while slowly drawing back the static mixer. In any case avoid entrapping air. For deep holes extension tubing can be used.
4.
Insert the anchor with a rotary motion into the filled drill hole. Some adhesive must come out of the hole.
5.
During the resin hardening time the anchor must not be moved or loaded.
Gel and loading time:
| Application Temperature (℃) | Gel Time (min.) | Loading Time (min.) | |
| 35 | 2 | 20 | |
| 30 | 3 | 30 | |
| 20 | 5 | 60 | |
| 5 | 15 | 120 | |
| 0 | 30 | 180 | |
| -5 | 60 | 360 | |
Test Report:
| Test Item | Test Method | Test Result | |
| Density (g/cm3) | ASTM D792-00 Method A | 1.58 | |
| Gel Time (min.) | ASTM D2471-99 | 180 | |
| Bond Strength (psi) | ASTM C882-99 | 1495 | |
| Water Absorption (%) | ASTM D570-98 | ||
| a. 100℃ / 1hr | 0.06 | ||
| b. 50℃ / 1hr | 0.32 | ||
| Compressive Strength (psi) | ASTM D695-02a | 8495 | |
| Tensile Strength (psi) | ASTM D638-03 | 1651 | |
| Elongation at Break (%) | 5.66 | ||
| Concrete compressive strength | Working standards | |||
| f'c = 4,000 psi (27.6 Mpa) | (mm) | |||
| Rebar size | Ultimate tensile load capacity (kgf) | Allowable tensile load capacity (kgf) | Hole diameter | Embedment depth |
| #3 (∅10) | 2908 | 817 | 13 | 90 |
| #4 (∅13) | 3890 | 1093 | 16 | 115 |
| #5 (∅16) | 7492 | 2104 | 20 | 125 |
| #6 (∅19) | 11727 | 3294 | 25 | 160 |
| #7 (∅22) | 16986 | 4771 | 28 | 190 |
| #8 (∅25) | 21560 | 6056 | 32 | 215 |
**For further information or MSDS/TDS request, please feel free to CONTACT US
.
Product |
Volume |
Item Code |
Dispenser |
Case Q’ty |
Pallet Q’ty |
CTN Size (cm) |
Epoxy acrylate |
280ml |
FX-V280 |
FX-GUN 280 |
20 |
1400 |
31 x 21 x27 |
360ml |
FX-V360 |
FX-GUN 345 |
20 |
1200 |
35.8 x 25 x 28.5 |
|
380ml |
FX-V380 |
FX-GUN 380 |
20 |
1200 |
36.2 x 31.6 x 26 |
|
Pure epoxy |
280ml |
FX-E280 |
FX-GUN 280 |
20 |
1400 |
31 x 21 x 27 |
360ml |
FX-E360 |
FX-GUN 345s |
20 |
1200 |
35.8 x 25 x 28.5 |
|
400ml (3:1) |
FX-E400 |
FX-GUN400 |
20 |
1200 |
36 x 25 x 27.5 |
|
400ml (1:1) |
FX-QE400 |
FX-GUN400L |
20 |
1200 |
43.3 x 26 x 27 |
|
650ml |
FX-QE650 |
FX-GUN620 |
10 |
850 |
28 x 23 x 30 |
|
Polyester |
360ml |
FX-HP360 |
FX-GUN 345 |
20 |
1200 |
35.8 x 25 x 28.5 |
380ml |
FX-HP380 |
FX-GUN 380 |
20 |
1200 |
36.2x31.6x26 |
**If any questions about package, please feel free to CONTACT US.
Shipping:
By sea/ air/ courier. (FOB Kaohsiung)
Courier includes DHL, FedEx, TNT, EMS, etc.
WE ARE
FastFix-it Ent. Co., Ltd. was established in 1996, and our factory and office is located in Taiwan. We are adhesive manufacturer, and dedicated to research & develop high quality epoxy adhesives. Our products have been used in a wide variety of projects, ranging from Residential & Commercial Buildings to Transport Facilities, or industry.
Our Product Line
Our Quality Control
OUR QUALITY POLICY
FastFix-it Ent. Co., Ltd. is committed to:
ü High quality product which meets clients’ requirements and solves problems accurately.
ü Competitive pricing in market.
ü Continuous Developing in new products for future market trends and needs.
ü Logistical network for customer support and prompt delivery.
You may visit our website (chemical anchor) / (putty stick) or view our Company Profile on YouTube:
<Chemical anchors> https://youtu.be/Z4l11BOiqT8
< Putty sticks > https://youtu.be/gZ1DqpB32Uo
1. Prompt response
All inquiry will be responded within 24 hours in work day.
Trade manager is online during work day.
2. Sales service
We aim to give the best sales service to all clients, and make sure you are satisfied with our products.
3. Tailor products
We offer the highest level of customization of your products. If you need special formulation or different ratio of materials, we can manufacture tailor products for you. And we also provide private label service.
4. Provide samples
We provide you free samples to test. (Sample delivery no more than 3 days.)
For further information or sample request, please feel free to CONTACT US.
It’s easy to start our business, SEND INQUIRY to us NOW.
