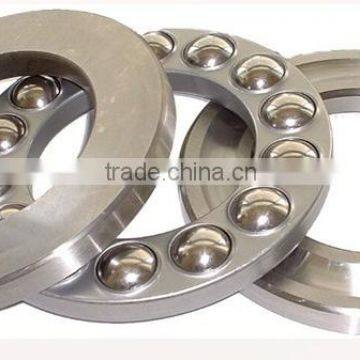

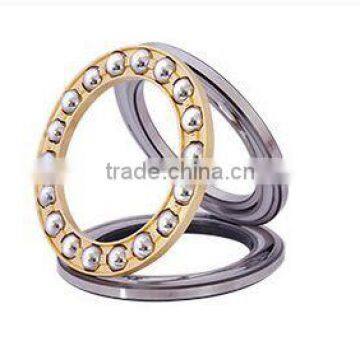

Help CenterSmall Size Chrome Steel Thrust Ball Bearing 51306 51308 51309 for Sliding Doors
Related Products
-
Perfect After-sale Service Thrust Ball Bearing 51152 51156US$ 136.6 - 307.9MOQ: 1 Piece -
51101 Thrust Miniature Bearing 12x26x9 mm BearingsUS$ 0.95 - 3.79MOQ: 1 Piece
-
Low Price Free Sample Thrust Ball Bearing 51216 51218 51220 51222US$ 7 - 61.8MOQ: 1 Piece
-
513 Series Bearings Thrust 200x340x100mm Ball Bearing 51340US$ 289 - 579MOQ: 1 Piece
-
LYDC Thrust Ball Bearing 51238 51244US$ 89.3 - 132.9MOQ: 1 Piece
Description of thrust ball bearing
Product |
Thrust Ball Bearing |
Model Number |
51306 51308 51309 |
Precision Rating |
P0,P6,P5,P4 |
Brand |
LYDC |
OEM |
Accept |
Material |
Gcr15, |
Seals Type |
Open |
Structure |
thrust ball bearing |
Bore Size |
10-1700MM |
Outside Diameter |
24-2080MM |
Number of Row |
Single |
Company |
Trade & manufacturer |
MOQ |
1 pcs |
Delivery Time |
10-30 days after receiving your payment |
Payment Terms |
L/C,T/T,cash |
Port |
Shanghai,Wuhan, or your required |
Place of Origin |
Luoyang, China |
Samples |
Available |
- Available in two designs: single direction and double direction.
- Designs are available with spherical aligning seats or aligning seat washers.
- High quality steel-ultra clean steel to extend bearing life by up to 80%.
- High Grade Balls - Quiet and smooth operation even at high speed.
- Optional seating rings take initial misalignment.
A part of Bearing 51 Series
| Model | Dimension(mm) | Weight (kg) | ||
| ABL | d | D | H | |
| 51200 | 10 | 26 | 11 | 0.0293 |
| 51201 | 12 | 28 | 11 | 0.0324 |
| 51202 | 15 | 32 | 12 | 0.0444 |
| 51203 | 17 | 35 | 12 | 0.0506 |
| 51204 | 20 | 40 | 14 | 0.0733 |
| 51205 | 25 | 47 | 15 | 0.109 |
| 51206 | 30 | 52 | 16 | 0.138 |
| 51207 | 35 | 62 | 18 | 0.22 |
| 51208 | 40 | 6 | 19 | 0.27 |
| 51209 | 45 | 73 | 20 | 0.32 |
| 51210 | 50 | 78 | 22 | 0.39 |
| 51211 | 55 | 90 | 25 | 0.619 |
| 51212 | 60 | 95 | 26 | 0.69 |
| 51213 | 65 | 100 | 27 | 0.75 |
| 51214 | 70 | 105 | 27 | 0.79 |
| 51215 | 75 | 110 | 27 | 0.815 |
| 51216 | 80 | 115 | 28 | 0.925 |
| 51217 | 85 | 125 | 31 | 1.3 |
| 51218 | 90 | 135 | 35 | 1.77 |
| 51220 | 100 | 150 | 38 | 2.4 |
| 51222 | 110 | 160 | 38 | 2.6 |
| 51224 | 120 | 170 | 39 | 2.9 |
| 51226 | 130 | 190 | 45 | 4.32 |
| 51228 | 140 | 200 | 46 | 4.6 |
| 51230 | 150 | 215 | 50 | 6.1 |
| 51232 | 160 | 225 | 51 | 6.55 |
Product details
Thrust ball bearing application:
Thrust ball bearings are used in applications that use little axial load, where a ring supports
ball bearings.The thrust ball bearings are used in Motor, Machinery, Electric Tools, Sports
Apparatus, office equipment , Scooter Aluminum windows , shower blocks, hanging round,
closet wheel, toys, etc Fan, car, truck, tractors and automatic machine,Textile machine, Pump,
Agricultural machinery,Machine tool,window ,sliding door , other furniture and some toys .
Packaging
Delivery Details:10-30 days
| Ball Bearing | Deep Groove Ball Bearing |
60 **,618 ** (1008), 619**(1009),62 **, 63 **, 64 **, 160 **(70001 ) |
| Thrust Ball Bearing | 511 ** (81) ,512 **(82) ,513 (83) ,514 ** (84) series and Angular Contact Thrust all Bearings like: 5617 ** (1687) ,5691 ** (91681), 5692 ** (91682) series |
|
| Angular Contact Ball bearing | SN718 **(11068 ) ,70 ** 72 **,73 **, and B (66), C (36), AC (46) series ; otherwise include QJ and QJF series |
|
| Roller Bearing | Spherical Roller bearing | 239**, 230**,240**, 231**, 241**, 222**, 232**, 223**, 233**, 213**, 238**, 248**, 249**and special series include 26** i.e 2638 (3738), 2644 (3844) and so on |
| Taper Roller Bearing | 329**(20079),210**(71), 320**(20071),302**(72), 322**(75), 303**(73), 313**(273),323**(76), 3519**(10979), 3529**(20979),3510**(971), 3520**(20971),3511**(10977), 3521**(20977), 3522**(975), 319**(10076),3819**(10779),3829**(20779), 3810**(777,771), 3820**(20771), 3811**(10777,777) for example: 77752, 77788, 77779 and also include Inch series bearings suchas 938/932 single and double row i.e M255410CD etc. |
|
| Thrust Roller Bearing | 292**(90392), 293**(90393),294**(90394),994**(90194), and 9069 series. |
|
| Cylindrical Roller Bearing | NU10**, NU2**,NU22**, NU3**,NU23**, NU4**, N, NJ ,NUP series as well as NB, NN, NNU series of big bearings, and we also have Split Bearings 412740, 422740 used in cement industry.And FC, FCD series used inSteel Industry. |
Who we are?
Wuhan East Technology Co., Ltd. was established in Hubei in 2007, is specialized in
producing and exporting all kinds of bearings. Our bearings’ quality is always under
strict control. Our factory has the most advanced production facilities and we can also
provide custom-made for various non-standard bearings as per your requirements.We
will try our best to serve you and hope to become one of your friends and business partners.
Why choose us?
1.Over 20 years bearing products manufacturing experience.
2.High quality and reasonable price.
3.Various sizes of bearing are available.
4.We can offer free sample.
5.Fast delivery.
6.Quick respond to your inquiry all the time.
7.We can offer OEM Service
8.We are manufacturer&export company.
Main products
1.Could you supply sample for free?
Yes, we can supply sample for free, but need our customer afford freight.
2.Could you tell me the delivery time of your goods?
3-7 days stock goods and other goods according to the quantity about 3-21 days.
3.Can we customize the bearings?
Yes, sure. We can customize the bearings as your requirements.
4.How does your factory do regarding quality control?
Quality first is our principle.We always attach great importance to quality control from the
every beginning to the end of the production. Every product will be fully
assembled and carefully tested
