Home > Products > Sealed lead acid battery > CE RoHS Certifications 12v Agm Lead Aicd Battery

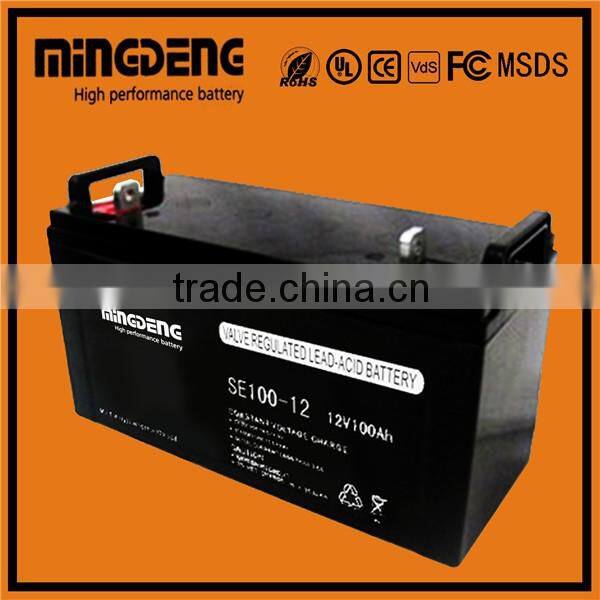

CE RoHS Certifications 12v Agm Lead Aicd Battery

FOB Price

US$ 78 - 86 / Piece

100 Pieces(Min. Order)

Port Guangdong Shengzhen
Payment TermsT/T L/C D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China	Brand Name	MINGDENG
Model Number	SE150-12	Usage	Other, Vrla Battery 12v 150ah
Voltage	Other, 12v	Sealed Type	Sealed
Maintenance Type	Free	Size	407172210*240mm
Weight	29.5KG	Nominal Capacity	100AH (20C)

Product Description

CE RoHS Certifications 12v agm lead aicd battery

Advantages

A.Chinese leading manufacture of solar gel battery
B.Maintenance free gel battery
C.3 years design life with low price
D,Good tolerance to higher temperaturer applications
E.Echo-friendly ;no Cadmium,no leaking
F.Long life span :GEL electrolyte no acid layer no eaking
G.Ideal for cyclic uses
H..Maintenance free and quick charging

I: 3 years quality warranty

Product Description

production description products details Anatomy

products description

Model	SEL 100-12
Voltage	12V
Capacity	100AH (C20)
	97AH (C10)
	90AH (C5)
	79AH (C1)
Dimension (mm)	lenth: 407
	width: 172
	height: 214
	total height: 238
Weight	29KG
Maintenance	free(valve regular)
Working terperature	-40°C~60°C
Floating life	5 years
Design life	5 years
Warranty	2 years
Discharge details
DoD data	3000-3500 (25%)
	600-800(75%)
	200-300(100%)
Self discharge (25°C)	91%(3 month)
	82%(6 month)
	64%(12 month)
Internal Resistance	4.9 Ω (Fully charged battery at 25°C)
Material
Grid Plate	CaPb alloy, PbSn alloy, PbSb alloy
Diachylon	1# ceruse(99.99%)
Liquid	Dilute sulfuric acid
Terminal	Lead, Zinc, Copper
Shell	PCABS
Original	China

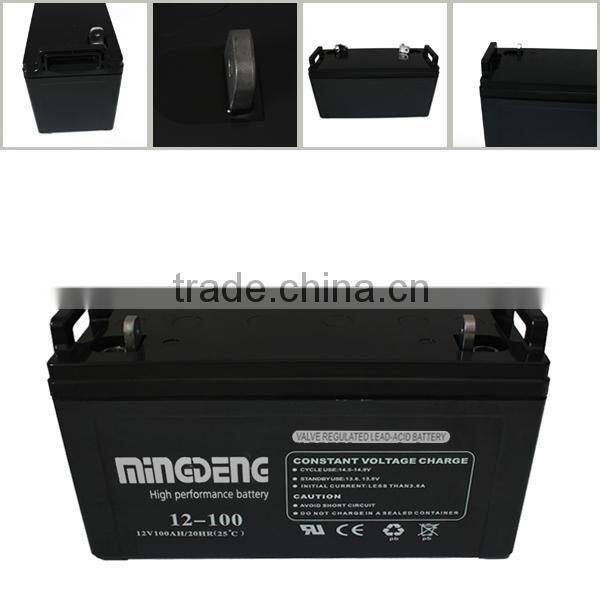

products details

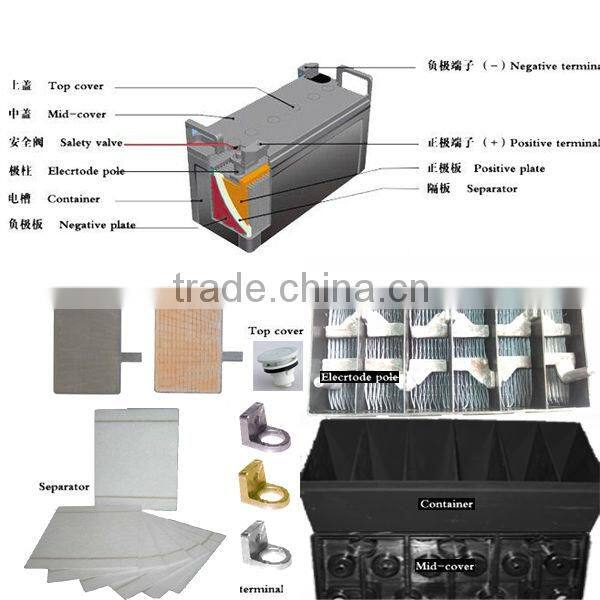

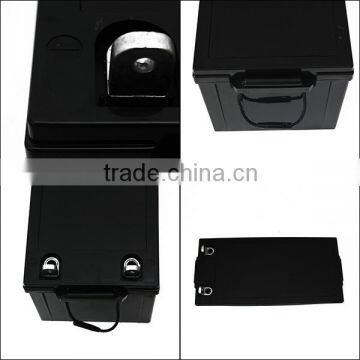

Anatomy

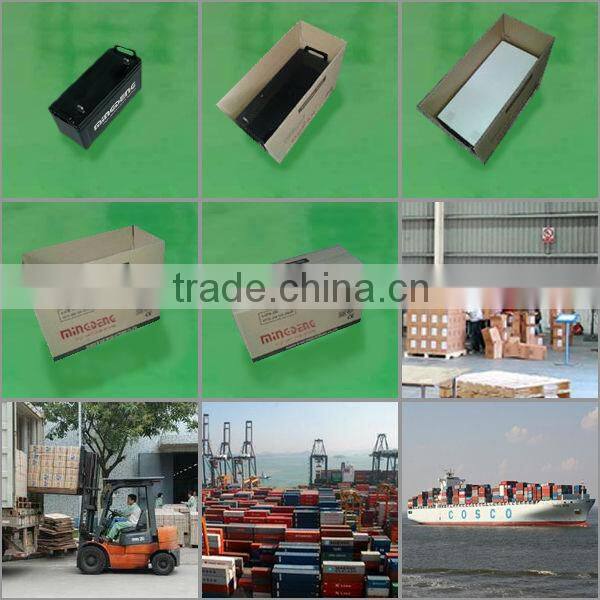

Packaging & Shipping

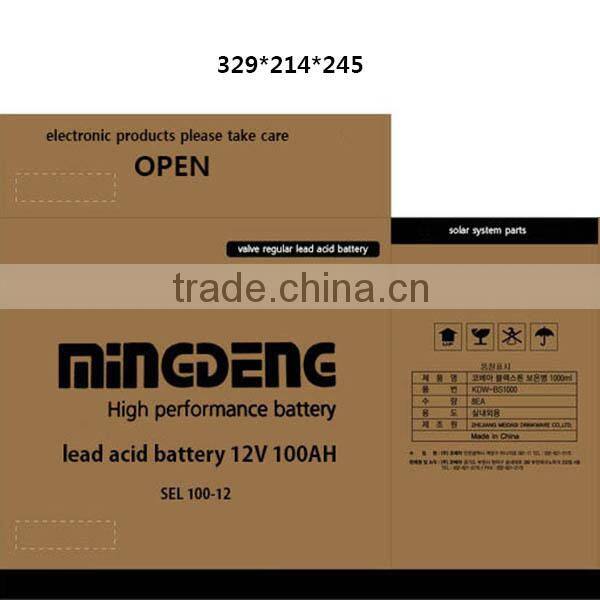

out box package

Packaging & Shipping

out box

package

Our Services

purchase products solutions customize

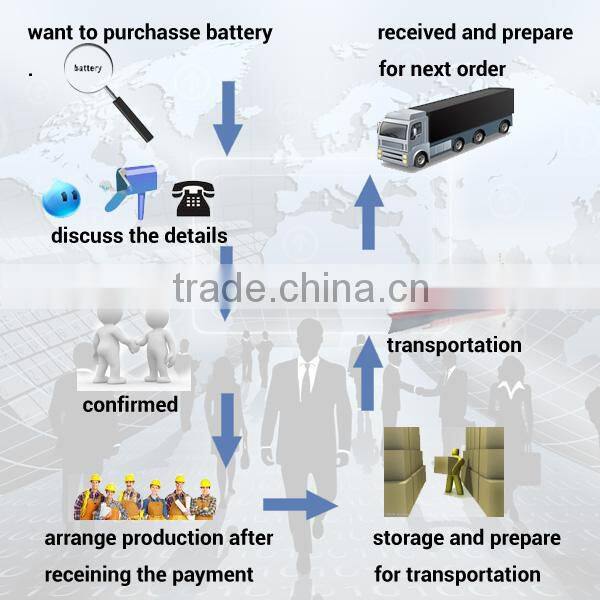

Our Service

purchase

Products support

SE series

Model	voltage	capacity	dimension				weight	terminal
Model	V	AH	lenth	width	height	total height	KG	type	position	model
SE4-12	12	4	91	70	101	108	1.7	T1	C	L
SE7-12	12	7	151	65	95	103	2.2	T2	F	L
SE12-12	12	12	150	99	98	107	4.2	T2	F	L
SE17-12	12	17	180	76	168	168	5	T3	D	L
SE24-12	12	24	165	126	175	182	8	T6	D	L/0
SE38-12	12	38	197	166	175	182	12	T6	D	L/0
SE65-12	12	65	350	166	175	179	19.5	T6	D	L/0
SE100-12	12	100	329	172	214	238	29	T8	D	L/0
SE120-12	12	120	407	172	210	240	33	T10	C	L/0
SE150-12	12	150	483	170	241	241	40	T10	C	L/0
SE200-12	12	200	522	240	219	244	57	T10	E	L/0
SE250-12	12	250	522	268	220	241	70	T10	C	L/0

SEL series

Model	Voltage	Capacity	Dimension				Weight	Terminal
Model	V	AH	lenth	width	height	totalheight	KG	type	position	model
SEL24-12	12	24	165	126	175	182	8.5	T6	D	L/0
SEL38-12	12	38	197	166	175	182	13	T6	D	L/0
SEL65-12	12	65	350	166	175	179	21	T6	D	L/0
SeL100-12	12	100	329	172	214	238	31	T8	D	L/0
SEL120-12	12	120	407	172	210	240	34	T10	C	L/0
SEL150-12	12	150	483	170	241	241	42	T10	C	L/0
SEL200-12	12	200	522	240	219	244	59	T10	E	L/0
SEL250-12	12	250	522	268	220	241	72	T10	C	L/0

AT series

Model	voltage	capacity	dimension				weight	terminal
Model	V	AH	lenth	width	height	total height	KG	type
AT32L12	12	32	195	131	156	181	9.6	L
AT36L12	12	36	198	166	155	171	12.6	L
AT38L12	12	38	196	165	170	170	13.8	L
AT50L12	12	50	229	138	210	232	15.8	L
AT70L12	12	70	350	168	174	174	21.5	L
AT85L12	12	85	340	172	213	240	26.5	L
AT100L12	12	100	407	172	215	240	31	L
AT160L12	12	160	483	170	241	241	43	L
AT200L12	12	200	522	240	220	244	57	L
AT250L12	12	250	520	268	220	245	78	L
AT160L6	6	160	260	180	247	250	27	L
AT180L6	6	180	323	178	225	250	30	L
