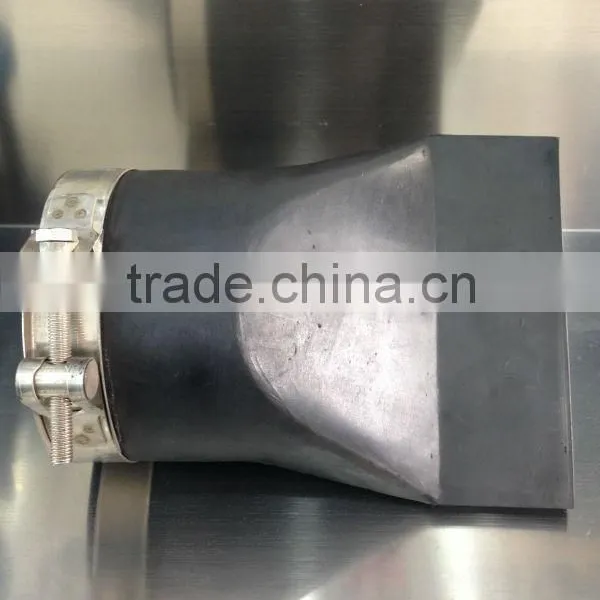

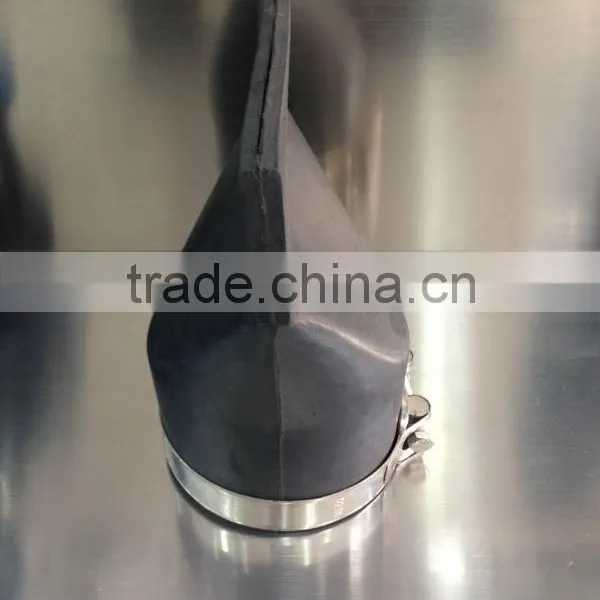

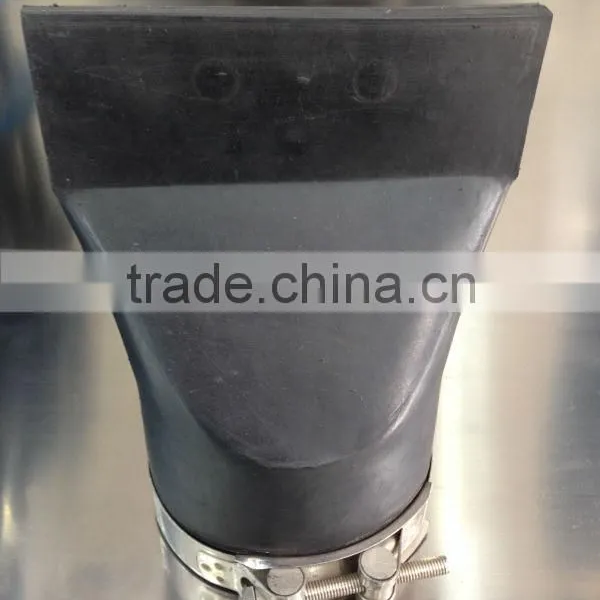

Huayuan Rubber duckbill check valve
- 30000 Piece / Pieces per Month
- Tianjin Qingdao Shanghai
- T/T L/C D/P D/A
Product Details
Standard or Nonstandard: | Standard | Structure: | Check | Pressure: | Medium Pressure |
Power: | Hydraulic | Material: | Rubber | Temperature of Media: | Medium Temperature |
Media: | Water | Place of Origin: | Henan, China | Brand Name: | huayuan |
Product Description
Flanged rubber duckbill check valve:
Huayuan Flanged Duckbill Check Valve is manufactured with an integral reinforced rubber flange complete with metal backing rings,which can be bolted directly to a headwall,tank wall or pipe flange.
Features:
·Quiet operation
·Non slamming
·Minimal maintenance
·Seals around trapped objects
·Low head loss
·Reliable performance
Applications:
·Sewer Interceptors
·Outfall Lines
·Wet/Dry Wells
·Storm water discharge
·Submerged outfall diffuser nozzle
Main Dimensions(mm):
Pipe size | Length | Height | Flange Outside Diameter | |
DN | inch | |||
50 | 2 | 150 | 100 | 150 |
80 | 3 | 220 | 140 | 200 |
100 | 4 | 250 | 200 | 225 |
150 | 6 | 340 | 265 | 275 |
200 | 8 | 420 | 325 | 338 |
250 | 10 | 520 | 425 | 400 |
300 | 12 | 620 | 525 | 485 |
350 | 14 | 700 | 625 | 525 |
400 | 16 | 800 | 725 | 588 |
450 | 18 | 900 | 825 | 625 |
500 | 20 | 980 | 925 | 688 |
600 | 24 | 1120 | 1025 | 800 |
700 | 28 | 1180 | 1125 | 969 |
800 | 32 | 1350 | 1400 | 1081 |
900 | 36 | 1500 | 1525 | 1150 |
1000 | 40 | 1600 | 1725 | 1325 |
1200 | 48 | 1840 | 1950 | 1485 |
The valve without any active components ,free maintenance. this valve can give straight tube, flange pipe ,cement pipe, glass steel pipe matching, this valve is widely used in the coastal beach, pier reservoir, having municipal sewage, it is environmental protection green valve, the valve can replace completely valve flap, valve gate, and solve easily take the door by sediment, silt, rocks ,vegetation, Marine biological blocking problem.
How to order
We are specialized in manufacturing pipe fittings.
workfolw
Consult
↓
Design&Sample
↓
Process planning
↓
Production
↓
Quality Control
↓
Delivery

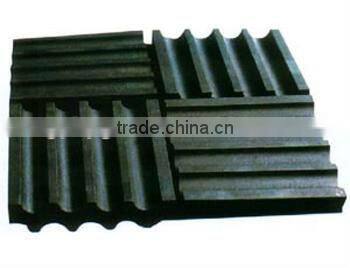

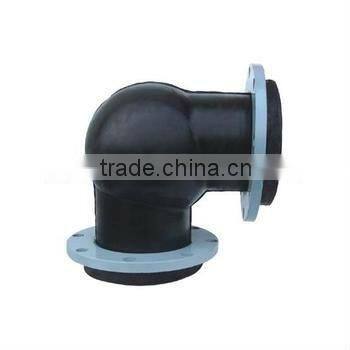

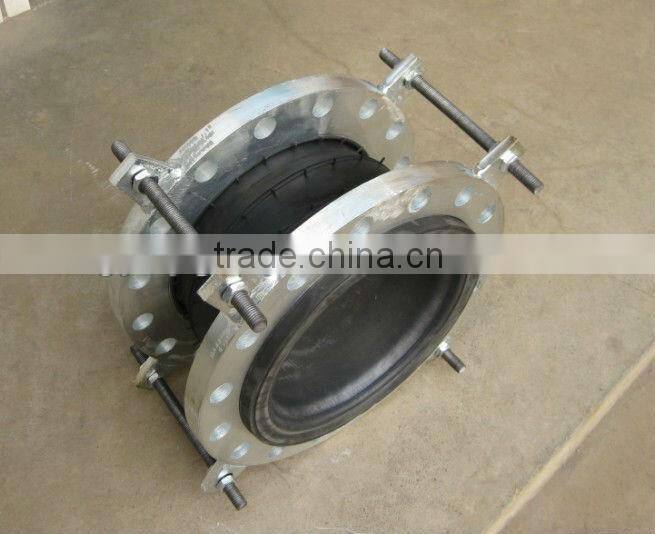

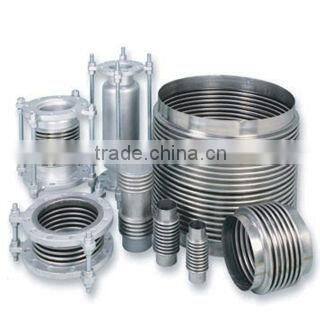

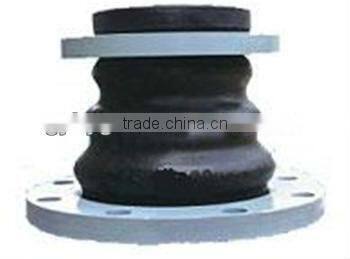

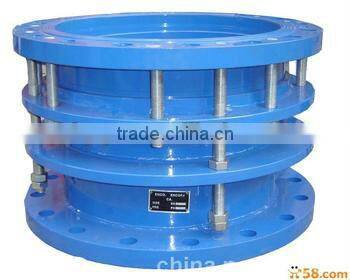

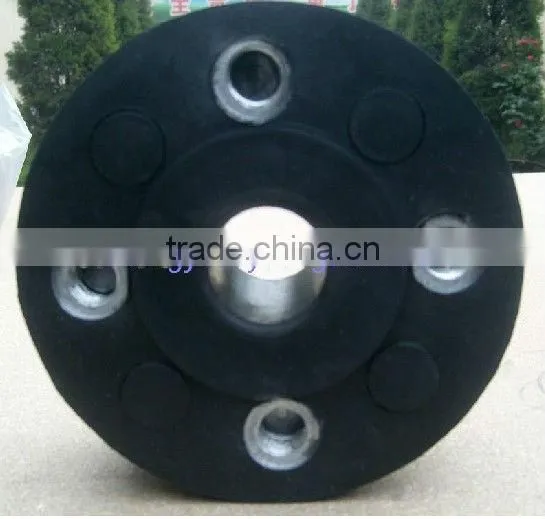

These are some of our products:

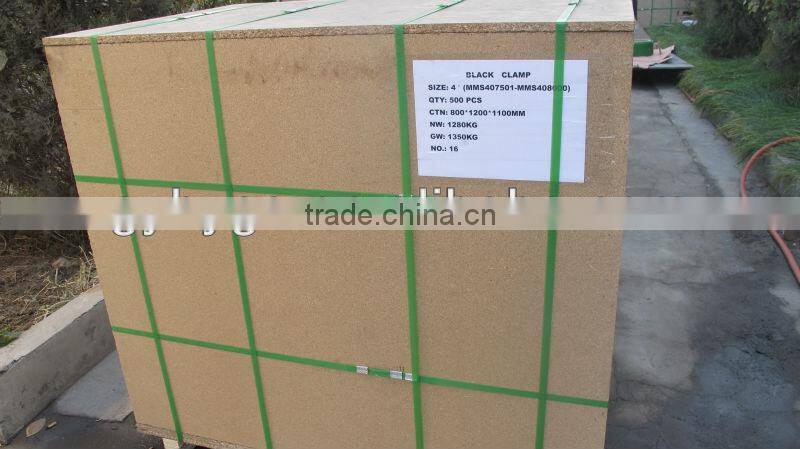

after inspection the pipe fittings are packed in carbon(plastic) bags and then carefully packed in wooden cases .
Sincerely hope you cooperate with me.
