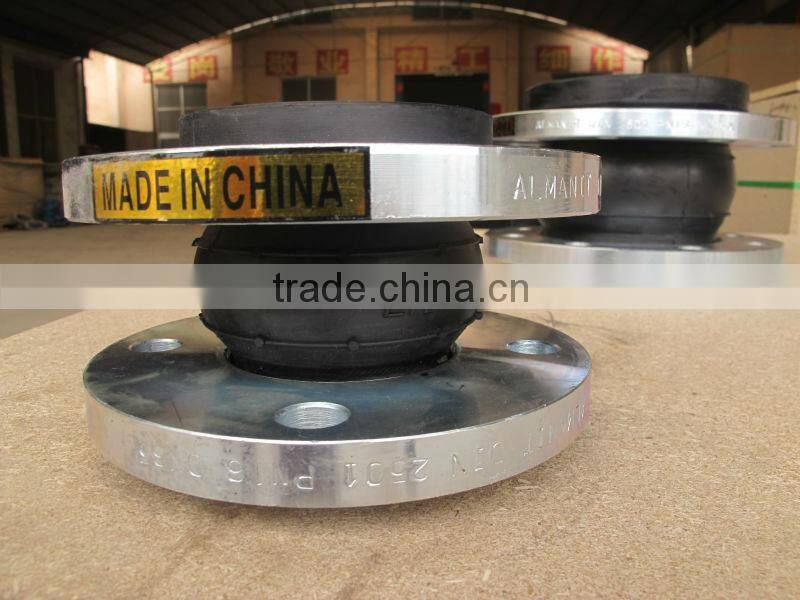

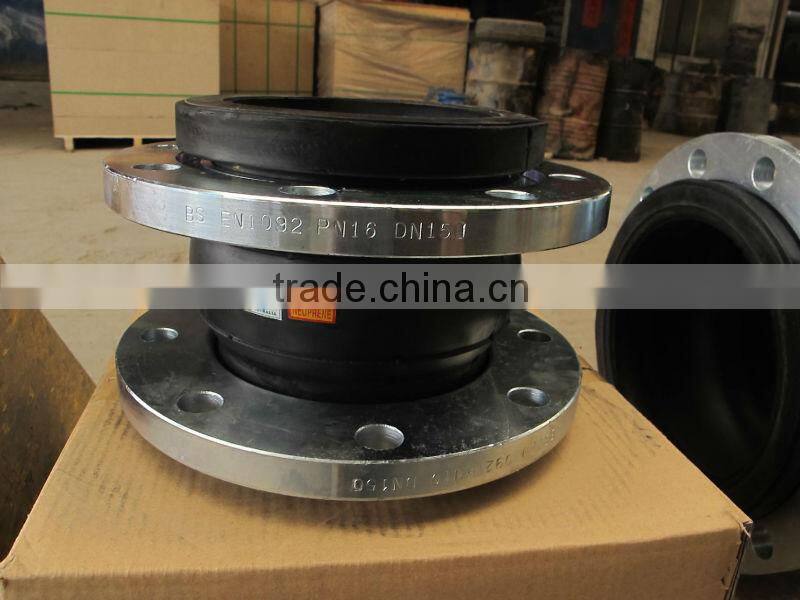

Promotional Price Single Sphere Rubber Joint
US$ 1 - 10.5
/ Piece
1 Piece(Min. Order)
- any port in china
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Material | Carbon Steel | Technics | Forged | |
| Type | Union | Place of Origin | Henan, China | |
| Model Number | JGD | Brand Name | Hua Yuanw | |
| Connection | Flange | Shape | Equal | |
| Head Code | Square |
Product Description
rubber joint:
- Features:
- Small volume, small weight, good flexibility, easy installation and maintenance
- It is capable of horizontal, axial and angular displacement without the restriction of pipeline obstruction and flange non-parallelism
- It reduces structural noise transmission with strong shock absorption in servive
- The inner seamless high-pressure rubber joint independently developed by us prevents corrosive medium from etching the inner wall of the rubber joint in high temperature, acid and alkali and oil resistant pipline, thereby extending its service life
Main connecting dimension
| nominal diameter | length mm | flange thickness | quality of bolt n | bolt hole diameter | diameter of the central ring of the bolt | axial displacement | lateral displacement | deflection angle | ||
mm | inch | extension | compression | |||||||
32 | 1.25 | 95 | 16 | 4 | 18 | 100 | 6 | 9 | 9 | 15° |
40 | 1.5 | 95/130/150 | 18 | 4 | 18 | 110 | 6 | 10 | 9 | 15° |
50 | 2 | 105/130/150 | 18 | 4 | 18 | 125 | 7 | 10 | 10 | 15° |
65 | 2.5 | 115/130/150 | 20 | 4 | 18 | 145 | 7 | 13 | 11 | 15° |
80 | 3 | 135/130/150 | 20 | 4 | 18 | 160 | 8 | 15 | 12 | 15° |
100 | 4 | 150/130 | 22 | 8 | 18 | 180 | 10 | 19 | 13 | 15° |
125 | 5 | 165/130/150 | 24 | 8 | 18 | 210 | 12 | 19 | 13 | 15° |
150 | 6 | 180/130/150 | 24 | 8 | 23 | 240 | 12 | 20 | 14 | 15° |
200 | 8 | 210/130/150 | 24 | 8 | 23 | 295 | 16 | 25 | 22 | 15° |
250 | 10 | 230/130/203 | 26 | 12 | 23 | 350 | 16 | 25 | 22 | 15° |
300 | 12 | 245/130/203 | 28 | 12 | 23 | 400 | 16 | 25 | 22 | 15° |
350 | 14 | 255/203 | 28 | 16 | 23 | 460 | 16 | 25 | 22 | 15° |
400 | 16 | 255/203 | 30 | 16 | 25 | 515 | 16 | 25 | 22 | 15° |
450 | 18 | 255/203 | 30 | 20 | 25 | 565 | 16 | 25 | 22 | 15° |
500 | 20 | 255/203 | 32 | 20 | 25 | 620 | 16 | 25 | 22 | 15° |

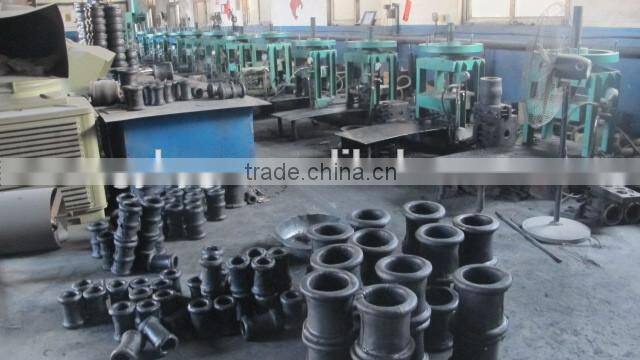

Globle View Of Factory

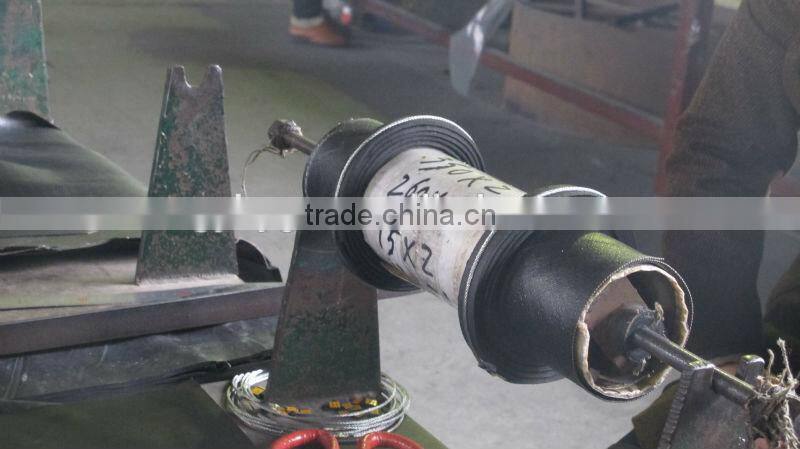

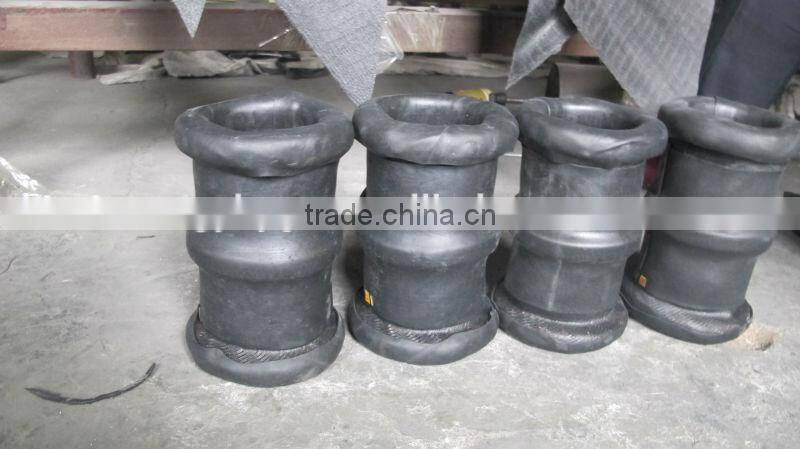

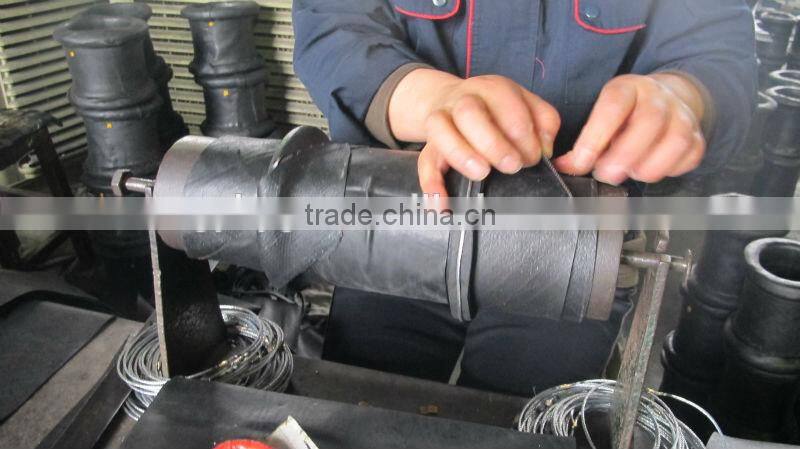

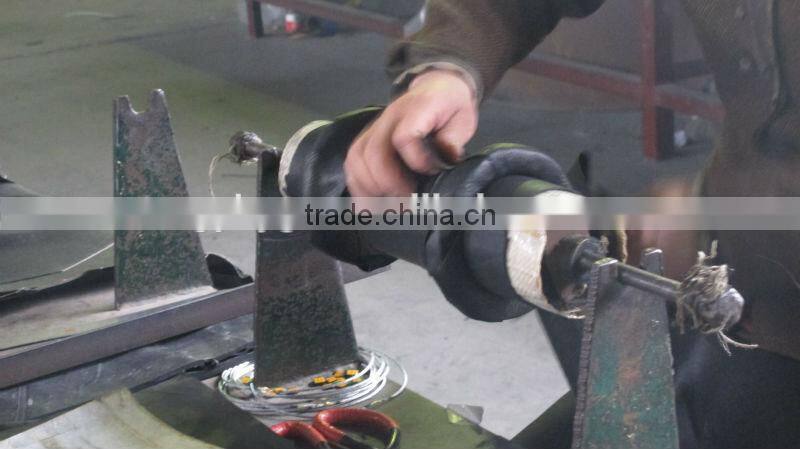

Manufcturer of process of product

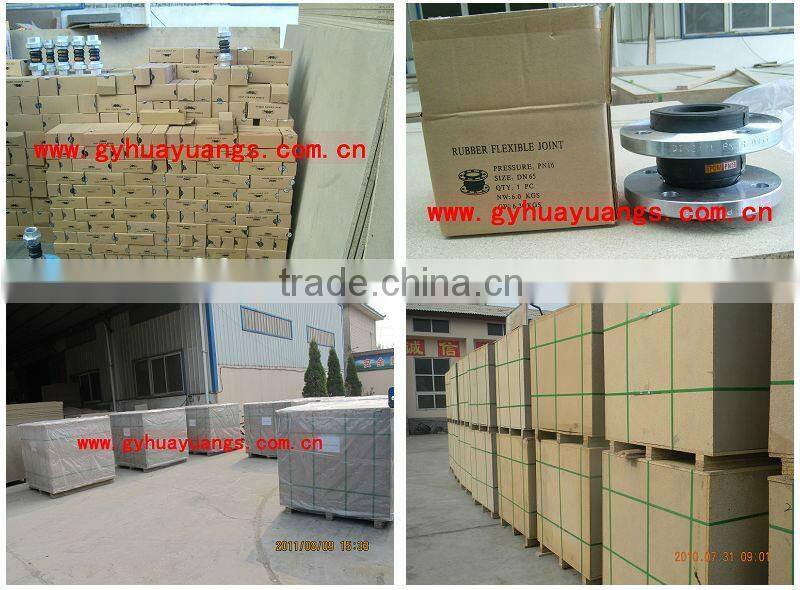

Package

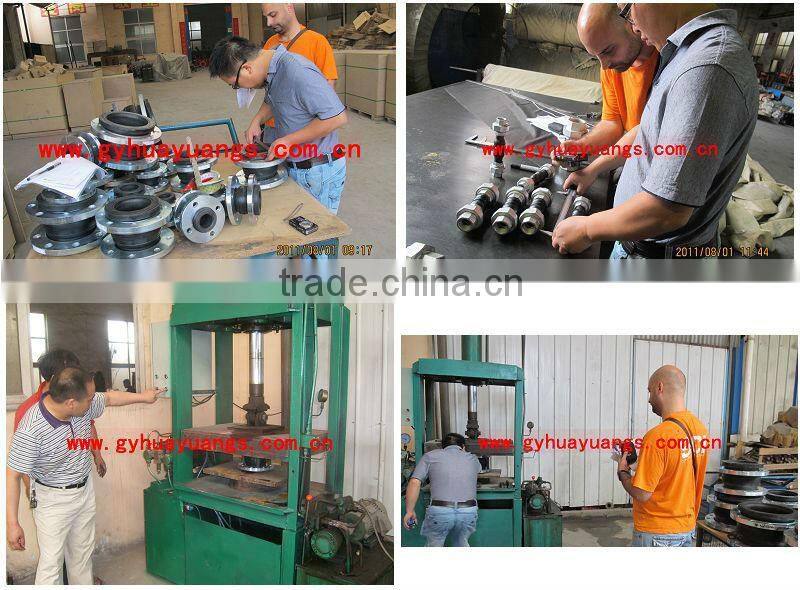

Customer test process
process of ship
