Double Sphereical Rubber Joint

Name: Double Sphereical Rubber Joint
Brand: HuaYuan
SKU: 102846151

US$ 1 - 10,000 MOQ: 1 Piece

Key Specifications

Material:

Stainless Steel

Technics:

Casting

Type:

Bushing

Gongyi Huayuan Water Supply Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Material Stainless Steel

Technics Casting

Type Bushing

Place of Origin Henan, China

Model Number JGD-A

Brand Name HuaYuan

Connection Flange

Shape Equal

Head Code Square

Specifications

Double Sphereical Rubber Joint
1.20 years export trading experience
2.for agents we have greater discount

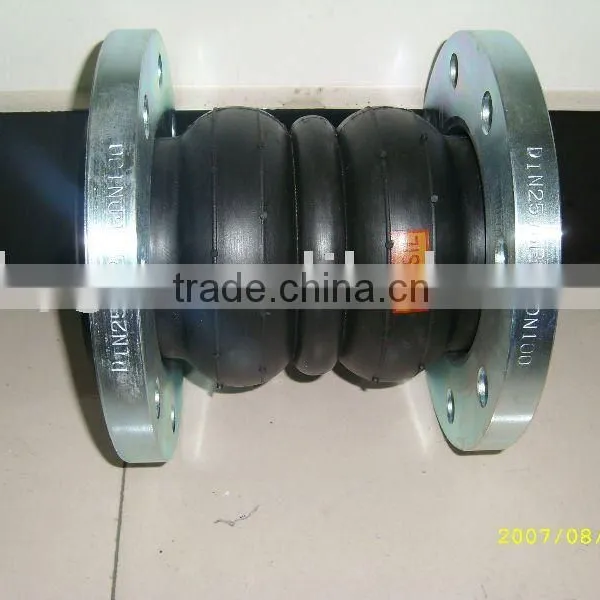

Double Sphereical Rubber Joint

JGD-A1

Complety solve the different piping problems as displacement of joint ,axial flex and so on.
According to the different material requirement ,product could be made as acid proof ,alkali proof to suit different medium and envirment .
The material are well sealing ,light weighting ,easy to fix and maintain ,also has long service life.But please keep far away from sharp metail in order to avoid breaking of the ball.

technical conditions

item	nominal diametermm	200~300(8-12″)		50~150(2-6″)
		JGD-A(1)	JGD-A(2)	JGD-A(3)
working pressure MPa(kgf/cm² )		1.0(10)	1.6(16)	2.5(25)
Explosion PressureMPa(kgf/cm² )		2.0(20)	3.0(30)	4.5(45)
vacuumKPa(mm/Hg)		40(300)	53.3(400)	86.7(650)
applicable temperature'C		-15~115under special conditions-30~250
applicable media		water ,sea water ,steam,oil .acid .alkali,and so on

MAIN CONNECTION DIAMENSION

nominal diamater		length mm	flange thickness mm	the quality of hole n	Bolt hole diameter mm	Diameter of the central ring of the bolt(mm)	Axial displacement(mm)		Horizontal displacement mm	deflection angle (a₁+a₂ )
mm	inch	length mm	flange thickness mm	the quality of hole n	Bolt hole diameter mm	Diameter of the central ring of the bolt(mm)	extension	compression	Horizontal displacement mm	deflection angle (a₁+a₂ )
50	2	165	18	4	17.5	125	30	50	45	35°
80	3	175	20	8	17.5	160	35	50	45	35°
100	4	225	22	8	17.5	180	35	50	40	35°
125	5	230	24	8	17.5	210	35	50	40	35°
150	6	325	24	8	22	240	35	50	40	35°
200	8	325	24	8	22	295	35	50	40	35°
250	10	325	28	12	22	350	35	60	35	30°
300	12	325	28	12	22	400	35	60	35	30°
