Home > Electrical & Electronics > Power Supply & Distribution > Voltage Regulator > Triple Phase 30Kva Voltage Regulator

Triple Phase 30Kva Voltage Regulator

Name: Triple Phase 30Kva Voltage Regulator
Brand: Nooyi
SKU: 102832399
Availability: InStock

Triple Phase 30Kva Voltage Regulator thumbnail-1

Triple Phase 30Kva Voltage Regulator photo-1

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Nooyi

Model Number:

ZBW-S30

Contact Supplier Request Quote Chat Now

Shanghai Nuoyi Electricity Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Nooyi

Model Number ZBW-S30

Usage Other

Phase Three Phase

Current Type AC

ZBW Series AC Voltage Stabilizer

Technical index:

Input	Range	three phase 304V-456V,single phase 176V-264V
Input	Frequency	47HZ-63HZ
Output	Rated voltage	Phase voltage 220V,Line voltage 380V (Other voltage can also be set, such as: 400V, etc.)
	Voltage accuracy	±(1-5)% can be selected(the conventional set is ±2.5%,other models are determined according to the model)
	Response time	Fast
	Wave distortion	No additional distortion (static)
	Efficiency	≥98%
	Three-phase unbalance degree	Automatic balance of three phase voltage
	Delay output	Voltage regulating before output (keep devices from impact)
Protect	Overvoltage	Cut off output,turn to bypass uninterruptedly or no action if The output phase voltage is more than 10% (245V),All can be set.
	Undervoltage	Cut off output,turn to bypass uninterruptedly or no action if The output phase voltage is less than 10% (195V),All can be set.
	Phase lack	Possess(Cut off automatically)
	Phase sequence error	Digital phase detection technique, accurately and reliably, effectively avoid misoperation problems caused by harmonic interference.
	Overload	Electronic test, Cut off output or turn to bypass uninterruptedly if overload for 3 minutes.All can be set.
	Overcurrent	Electronic test and breaker protection
	Short circuit	Electronic test and breaker protection
	Bypass	Bypass uninterruptedly and automatically
Indicate	Voltage	A,B,C,ΣABC with TRMS resperately on LCD
	current	A,B,C,ΣABC with TRMS resperately on LCD
	Working condition	Regulating voltage state / City electric state
	Abnormal	Overvoltage,undervoltage,overload, blown fuse,phase lack,phase error
Human-machine interface		Intelligent man-machine interface operation panel, easy to set and query parameters
Overload capacity		5 times the rated current for 1 second
Working mode		Regulating voltage state & City electric state

Features:

Quick response	12 bit AD collecting,64 points collecting each wave period,PLC digital operation,electronic module compensate quickly
Adjustments	Simultaneously: AD collected A, B, C phase voltage TRMS to calculate the average and instruction is given to compensate, can effectively improve the unbalance of the three-phase voltage
	Separately:Three phase voltage is adjusted to ensure that the three phase voltage is in the range of accuracy, and is particularly suitable for the single phase load.
	Automatically:Microcomputer adjust separately or simultaneously by automatic analysis.
Advanced test	12 bit AD collecting,PLC digital filter and TRMS operation
Accurate control	Perfect coordination of most promgrammable parts with PLC
Human-machine interface	Set data on panel(Output voltage, Voltage accuracy , protection function)
Undistorted output waveform	Non-contact zero-crossing switch, the overlying and Compensating principle of the common frequency, phase lock, sine wave.
Resist harmonic interference	TRMS voltage detection
Wide load range	Resistance, capacitive, inductive load all can be adapted
Slow start resist impact	Voltage regulating before output
Full protection function	When overvoltage and undervoltage occur,can protect witnin 1s or turn to bypass uninterruptedly and automatically,With perfect phase lack, overload, short circuit protection and the post-fault sound and light alarm function.
Voltage&current display	Voltage&current TRMS diaplay on LCD

Components brands:

Item	Brand	Item	Brand
SCR	German IXSS chip or Dongrui electron(Domestic IR chip packaging)	Air switch	LS(Korea LG)
Relay	Pansonic or Omron	Control Chip	TaiWan NUVOTON or STC or ATMEL
Transformer	Superior silicon steel sheet

Quality assurance:

u Product warranty 18 months,life-long maintenance (except abnormal use)

u Goods to the user side, the company in accordance with the specific circumstances of the project, can provide commissioning services, to ensure the normal operation of the equipment as scheduled.

u Conduct occasional telephone and on-site visits, timely understanding of the operation of the equipment, to solve the problem for the user.

u 24 hours service hotline:400 880 1168

Exhibition

Transport:

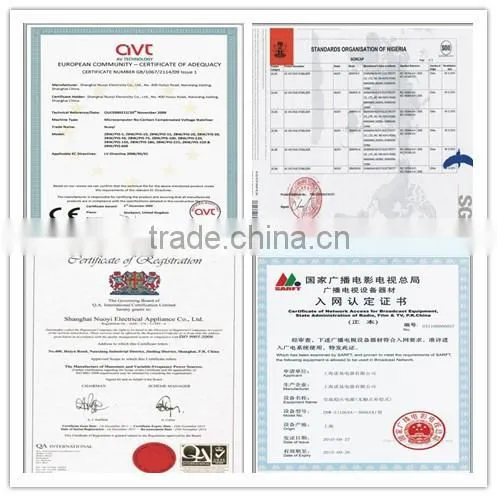

Certifications:
