Clear Tempered Insulated Glass

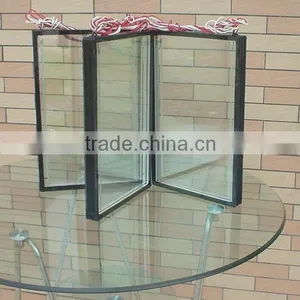

Clear Tempered Insulated Glass thumbnail-1
Clear Tempered Insulated Glass photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
Sky Tiger
Model Number:
IG-01
Contact Supplier Request Quote Chat Now
Guangzhou Sky Tiger Tempered Glass Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Sky Tiger
Model Number IG-01

Specifications

1.Tempered insulated glass factory
2.With BS, CCC authentication
3.15-20days delivery time
4.Low price

Tempered & Insulated Glass

Insulated glass is made of two or more pieces of glass between which aluminum frame is filled with highly efficient molecular absorbent. The edge of insulating glasss is sealed by high strenth sealing sealants (double sealing:Butyl should be used for the first sealing, polysulfide rubber or silicon strucral sealants should be chosen according to glazing manner

Optical performance
Various glass substrates can be used for IGU to meet the request of sunlight transmission and reflection. Generally, the range of sunlight transmission rate is 10-80%, reflection rate is 13-35%.

Termal Performance
Heat transfer coefficient U value can be effectively reduced by IGU, If intert gas as neon, argon, helium is filled, heat tranfer coefficient can be further dramatically reduced.

Sound insulation performance
Insulated glass is ideal sound insulating material.Normal IGU can reduce noise by 30 decibel,and IGU filled with inert gas can further 5 decibel.It means IGU can reduce 80 decibel traffic noise  into 45 decibel, which is very quite.

Anti-dew under low temperture
As Insulated glass is filled with enough dedesiccant, it can effectively absorb the vapor in the inner space or penetrated from outside to ensure the gas in inner space is absolutely dry and would not dew.

Light weight
Under the same effect of heat insulation, the replacement of partial brick wall or concrete with IGU can reduce load of building and simplify building structure.

Application
Widely used in doors and windows, ceiling, curtain wall,partition of high class buildings; place where sound insulation is of theutmost importance, such as school, hospital, office building, airport, and hotel; also applied for refrigeration appliance, aircraft, ships, etc.

Types of Products

Clear glass,tinted glass, color glazed glass, coated glass, LOW-E glass,laminated glass and tempered glass can be composed into various compound products.

Color
Clear, ultra white,various green, blue, gray and brown.

Size
Maximum 2500mmx3500mm, Minimum 350mmx350mm

Aluminum frame thickness :6mm,9mm,12mm

Thickness of glass:Various combinations between 3mm to 15mm.

Quality standard
Pass Chinese Saftey Glass Compulsory Certification (CCC)

Product

Insulated Glass/double grazing glass

Serial No.

IG-01

Specification

Maximum size 2500mm*3500mm Minimum size: 350mm*350mm           Thickness of glass: Various combinations between 3mm to 15mm.

Authentication

CCC (China Compulsory Certification) ;

BS EN14179-1:2005/BS6206:1981;

CE EN12150-1:2000: GB/T19001-200idtISO9001:2000

Construction Use

Door & Windows, Curtain Wall, Showcase, Skylight, Ceiling etc.

Color

Clear, Ultra Clear, Various Green, Blue, Gray, Brown.

MOQ

20’ FCL

Delivery Time

About 15-20days

Payment

By T/T

Packing

Seaworthy plywood case lined with plastic film and outer packing consolidated by iron strap.







2. Insulated Glass (Regular combination & approximate container loading capacity)





Container

1X20GP

1X40GP

1X40HQ



Loading capacity

17.5T

22.5T

22.5T

Specification

Kg/m²

Square meter

Square meter

Square meter

4+6A+4

≈20

825

1075

1075

4+9A+4

≈20

825

1075

1075

5+6A+5

≈25

660

860

860

5+9A+5

≈25

660

860

860

6+6A+6

≈30

550

717

717

6+9A+6

≈30

550

717

717

6+12A+6

≈30

550

717

717

8+6A+8

≈40

413

538

538

8+9A+8

≈40

413

538

538

8+12A+8

≈40

413

538

538

10+6A+10

≈50

330

430

430

10+9A+10

≈50

330

430

430

10+12A+10

≈50

330

430

430

Note:

All the above data is just for your referenc

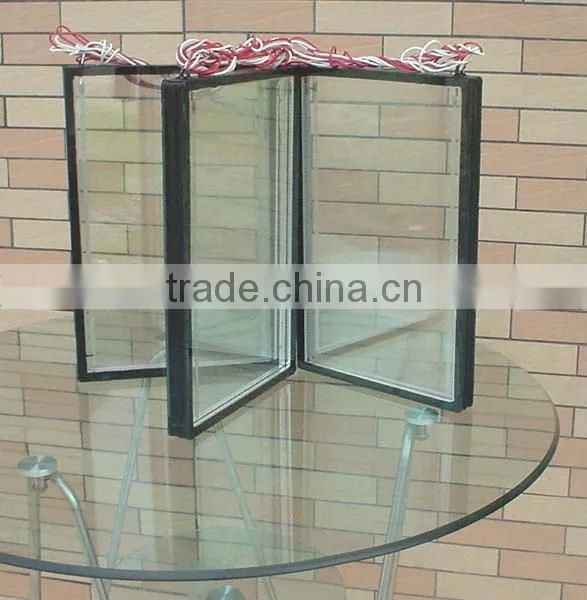

Clear Tempered Insulated glass
