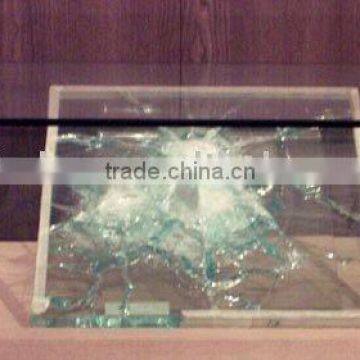

LG-01 Bulletproof Glass 8+1.52+8+1.52+8MM

LG-01 Bulletproof Glass 8+1.52+8+1.52+8MM thumbnail-1
LG-01 Bulletproof Glass 8+1.52+8+1.52+8MM photo-1
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Sky Tiger
Model Number:
LG-01
Contact Supplier Request Quote Chat Now
Guangzhou Sky Tiger Tempered Glass Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Sky Tiger
Model Number LG-01
Function Acid Etched Glass, Bulletproof Glass, Decorative Glass, Heat Absorbing Glass, Heat Reflective Glass, Insulated Glass, Low-E Glass
Shape Curve, Flat
Structure Hollow, Solid
Technique Clear Glass, Coated Glass, Figured Glass, Frosted Glass, Laminated Glass, Stained Glass, Tempered Glass, Tinted Glass, Wired Glass
Type Float Glass

Specifications

Bulletproof glass, also called bullet resistant glass, is particularly resistant to being penetrated when struck by bullet.



Bulletproof glass is a colloquial term for glass that is particularly resistant to being penetrated when struck by bullets. Since manufacturing glass of usable thicknesses capable of fully stopping most bullets cannot currently be done, the industry generally refers to it as bullet-resistant glass instead.



Bullet-resistant glass is usually constructed using a strong but transparent material such as polycarbonate thermoplastic or by using layers of laminated glass. The desired result is a material with an appearance and light-transmitting behavior of standard glass but offers varying degrees of protection from small arms fire.



  1. Laminated Glass:

Product

Laminated Glass

Serial No.

LG-01

Other Names



Specification

Maximum size 2400mm*6000mm Minimum size: 300mm*300mm           Thickness of glass: Various combinations between 3mm to 15mm.   Thickness of PVB interlayer: Multiple of 0.38mm

Authentication

CCC (China Compulsory Certification) ;

BS EN14179-1:2005/BS6206:1981;

CE EN12150-1:2000: GB/T19001-200idtISO9001:2000

Construction Use

Door & Windows, Curtain Wall, Showcase, Skylight, Ceiling etc.

Household Use

Furniture, Aquarium and so on

Color

Clear, Ultra Clear, Various Green, Blue, Gray, Brown.

MOQ

20’ FCL

Delivery Time

About 15-20days

Payment

By T/T

Packing

Seaworthy plywood case lined with plastic film and outer packing consolidated by iron strap.

Others





2. Laminated Glass (Regular combination & approximate container loading capacity)





Container

1X20GP

1X40GP

1X40HQ



Loading capacity

17.5T

22.5T

22.5T

MM+PVB+MM

Kg//m²

Square meter

Square meter

Square meter

3+0.38+3

≈15

1120

1420

1420

4+0.76+4

≈20

840

1065

1065

5+0.76+5

≈25

672

852

852

6+0.76+6

≈30

560

710

710

8+1.14+8

≈40

420

533

533

10+1.14+10

≈50

336

426

426

12+1.9+12

≈60

280

355

355

15+1.9+15

≈70

224

284

284

Note:

All the above data is just for your reference
