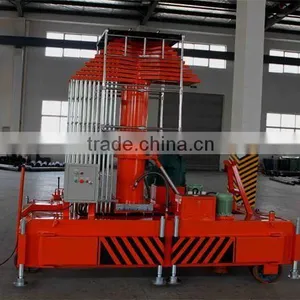

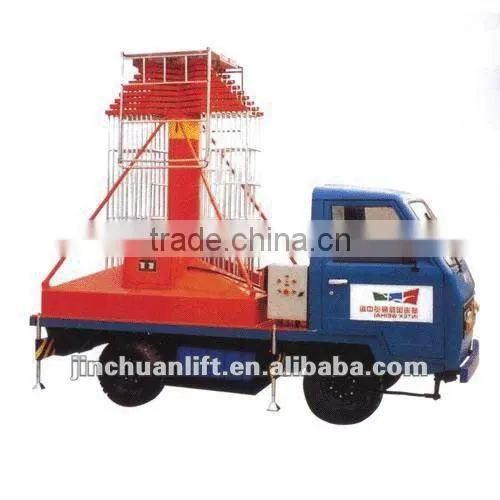

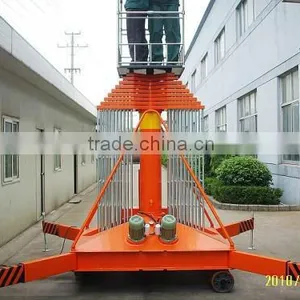

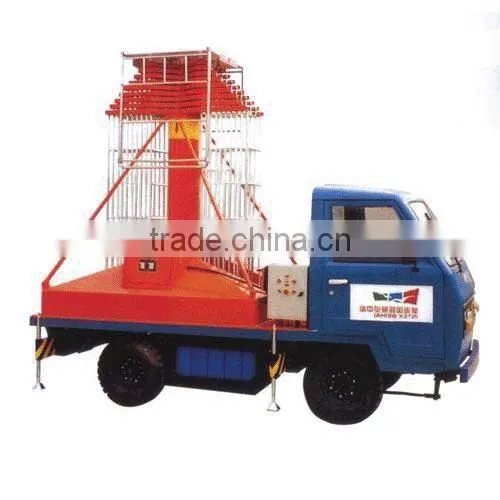

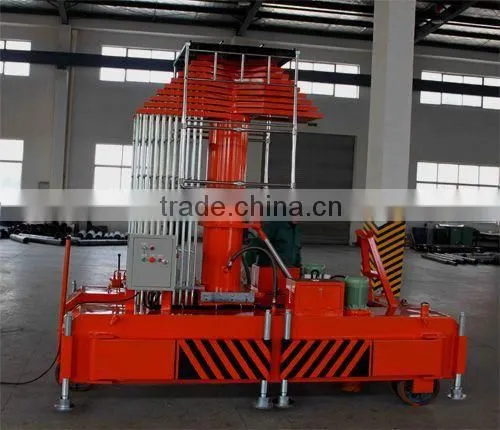

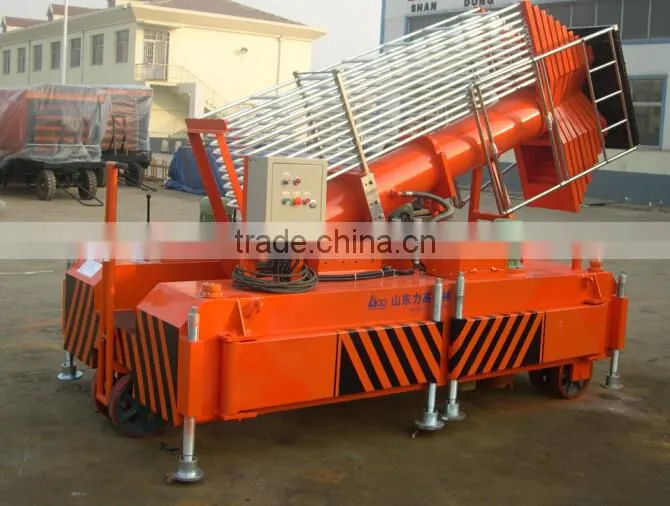

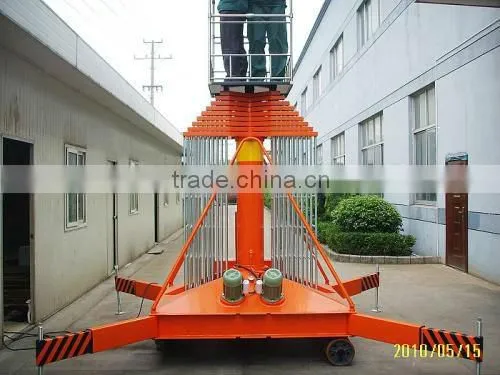

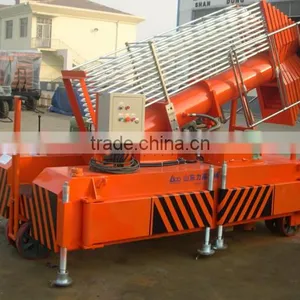

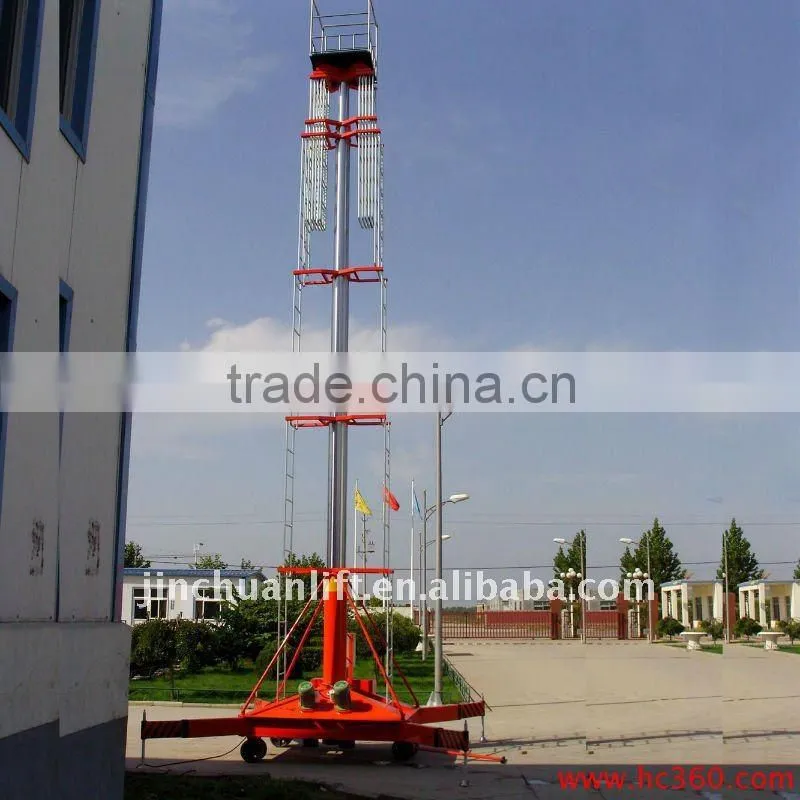

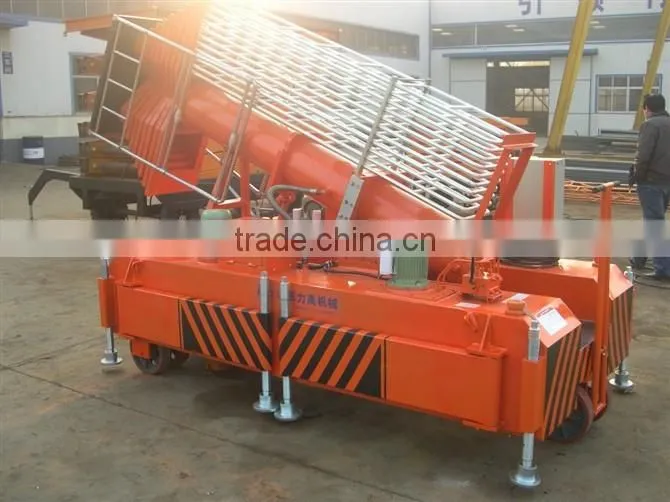

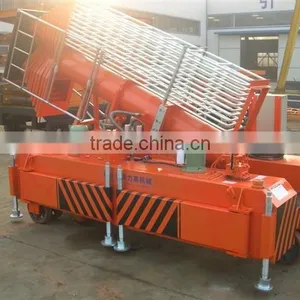

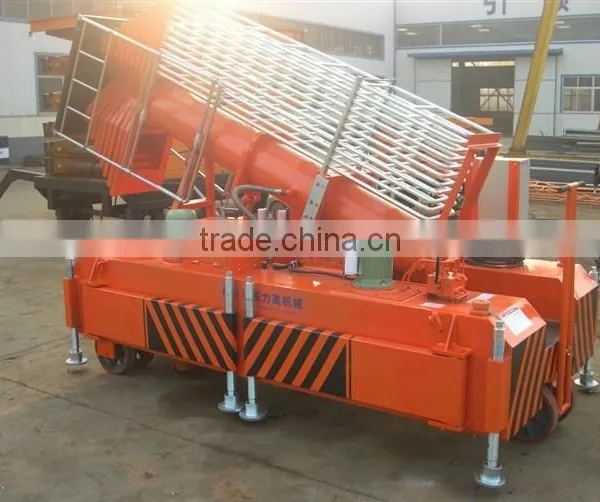

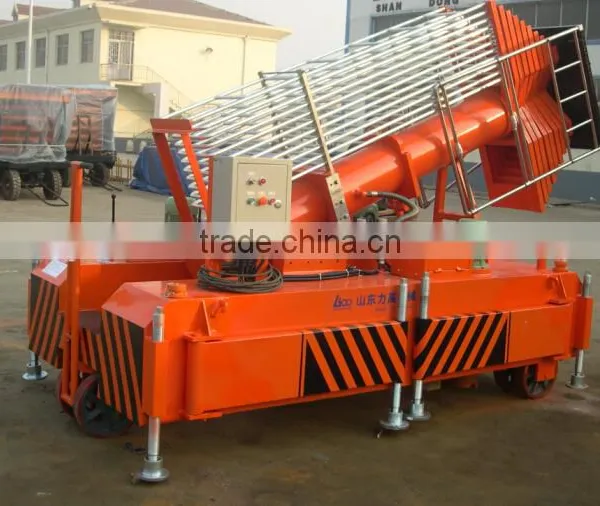

vehicular cylinder telescopic hydraulic lift

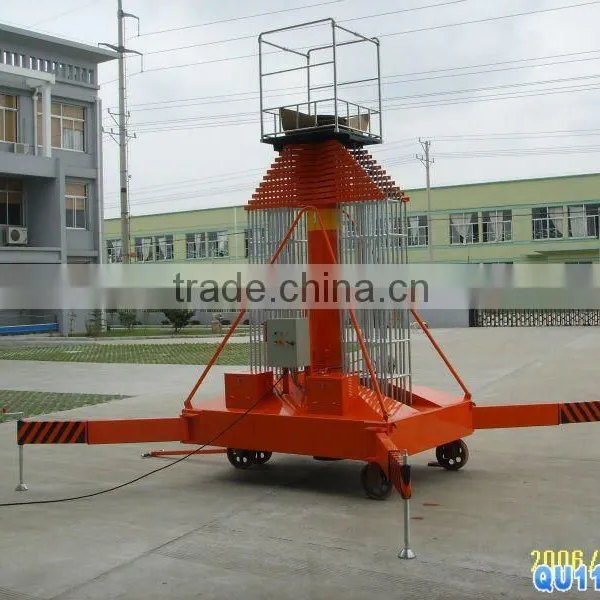

1.Set of cylinder type elevator features
a new design, structure, and to turn the double ladder dropped down system, double the biggest reduce up to 35 m, smooth, and durable, mobile flexible, simple operation is set of cylinder type electric lift the biggest characteristics. Take multi-step hydraulic cylinder erect picks up, hydraulic cylinder of high strength of material and good mechanical properties, a pyramid, frame, make the ladder lifts have higher stability. Energy matching: exchange 220 V (standard configuration), exchange 380 V power supply, dc power supply.
2.Set of cylinder type elevator use:
the most common is the most practical, important for electric power lines, lighting appliances, elevated pipeline protection, the floor clean install single-player missions such as the ground operations. Common in the station, the workshop, practical hotels, airports, shopping mall, airport, stadium, dock, hotel, airport and all kinds of narrow site need to climb up the occasion of homework.
It is most common and practical ,and is one of the best high-altitude working pratform lift. This type platform lift is producted by multi-level nested fuel tank which is high-strength steel pipe sleeves structure.
Safety:
A.It is possess with emergency descending device and anti-explosive device ,so user don’t panic when power-cut orany failure happens.
B. It is around by guard handrails to protect operators and passengers.
Model |
Max height of table (m) |
Overall dimensions (m) |
Load capacity (kg) |
Elevating speed(m/s) |
Wind- resistance(level) |
Table dimensions (m) |
Supporting power(v) |
Pwer(KW) |
Deadweight(kg) |
GTTY-16B |
16 |
1.68*1.39*2.36 |
200 |
0.026 |
5 |
0.8*0.8 |
220 |
1.5 |
1350 |
GTTY-18B |
18 |
1.78*1.47*2.6 |
200 |
0.026 |
5 |
0.8*0.8 |
220 |
1.5 |
1430 |
GTTY-20B |
20 |
1.78**1.56*2.65 |
150 |
0.042 |
5 |
0.8*0.8 |
220 |
1.1*2 |
1650 |
DTTY-21B |
21 |
1.78*1.56*2.7 |
150 |
0.04 |
5 |
0.8*0.8 |
220 |
1.1*2 |
1700 |
GTTY-22B |
22 |
1.97*1.65*2.8 |
150 |
0.035 |
5 |
0.8*0.8 |
220 |
1.1*2 |
1850 |
GTTY-23B |
23 |
1.97*1.65*2.9 |
150 |
0.03 |
5 |
0.8*0.8 |
220 |
1.1*2 |
2000 |
GTTY-24B |
24 |
1.97*1.65*3.0 |
150 |
0.043 |
4 |
0.8*0.8 |
220 |
1.1*2 |
2200 |
GTTY-25B |
25 |
2.05*1.75*3.05 |
150 |
0.042 |
4 |
0.8*0.8 |
220 |
1.1*2 |
2350 |
GTTY-26B |
26 |
2.05*1.75*3.20 |
150 |
0.04 |
4 |
0.8*0.8 |
220 |
1.1*2 |
2450 |
GTTY-28B |
28 |
2.20*1.8*3.05 |
120 |
0.034 |
4 |
0.8*0.8 |
220 |
1.1*2 |
2500 |
GTTB-30B |
30 |
2.25*1.9*3.25 |
120 |
0.034 |
4 |
0.8*0.8 |
220 |
1.1*2 |
2800 |
Related Products
Packing:
We always make the lift machine packed inner with wrap film and outer with plywood case. The plywood case is free of steaming kaori, and it is exempted from inspection products, save a lot of trouble in the process of export or import.
Shipping:
We generally quote FOB price.About the shipping ,we promise to deliver goods within 7 days after receive payment.If the quantity of machine is small,we will do LCL and FCL if your order is one container.The shipping price will adjust according to the shipping.
|
|
Jinan Jinchuan hydraulic machinery co., LTD is a collection research and development, production, sales in the integration of local industry company, for decades of production experience, has its own sales team and after-sales service team. Jinchuan since was established, taking the tenet of "honesty, science and technology innovation" and the concept of "quality first, users first", adhere to go today! Jinchuan will always be with full mental state to meet your arrival! Welcome!
Certificate:
Good service:
1. All the machines will be tested before shipment.
2. The total machine guarantee for 12 months.
3. 24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.
1. Is your products customized?
Yes, because the working conditions are different, all our products are customized depending on
detail requirement! So if you give us more information about the lift capacity, span, lift height, power
source and other specials, we will give you a very quick quote!
2. What’s the information should I provide when inquiry?
Thanks for your question. The more information you provide, the accurate solution we can prepare for you! The information such as the lift capacity, span, lift height, power source or other specials you give us will be more appreciated.
3. How many operating methods for my selection?
The standard operating methods we provide is pendent controller with push buttons. Meanwhile, we
can also provide the remote control with push buttons and the cabin (space capsule seat) control with joystick. You can choose any of them, just tell us.
4. Do your side can provide other lift tools?
Yes, we can provide any kinds of lift tools such as lift, jib crane , grab, overhead crane,flatcar or other specials as your requirement!
