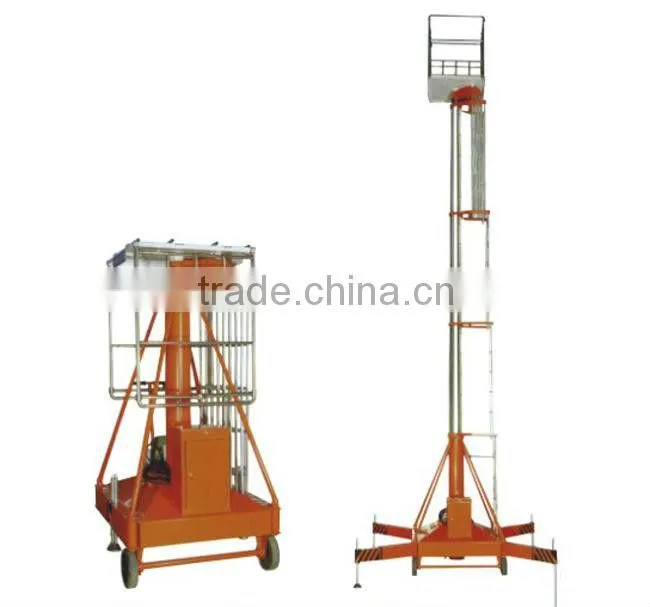

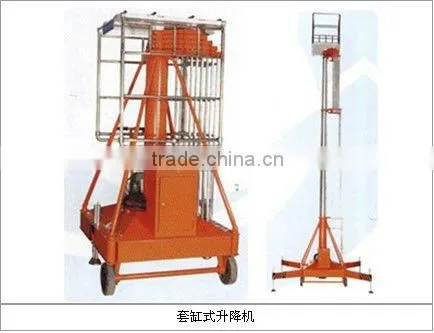

Help CenterSingle Ladder Anti-rotating Hydraulic Telescopic Cylinder Lifts
Related Products
-
Single Ladder Anti Rotating Hydraulic Aerial Work PlatformUS$ 2,000 - 8,000MOQ: 1 Set -
Double Ladder Anti-rotating Hydraulic Telescopic Cylinder Carry Lift for Shopping MallUS$ 4,000 - 60,000MOQ: 1 Set
-
Hydraulic Single Ladder Anti-rotating Telescopic Cylinder Lift TablesUS$ 1,000 - 10,000MOQ: 1 Set
-
Hydraulic Single Ladder Anti-rotating Telescopic Cylinder LifterUS$ 1,000 - 10,000MOQ: 1 Set
-
Hydraulic Dual Ladder Anti-rotating Telescopic Cylinder Lift Work PlatformUS$ 4,000 - 55,000MOQ: 1 Set
Specifications
hydraulic lifts1.lifting height:6-30m
2.lifting weight:120-200kg
3.double speed down system
4.novel design

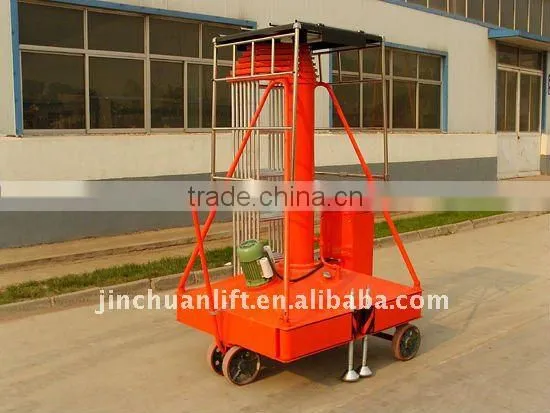

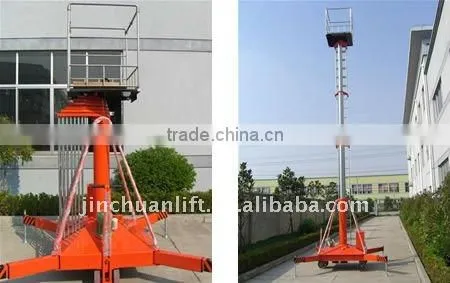

The series of hydraulic aerial work platform have the advantages of novel design, small size, exquisite appearance, easy operation and maintenance, stable ascent and descent, etc. The whole machine consist of platform, telescopic cylinder, anti-reverse mechanism of double ladder type,chassis oil tank,supporting leg,
road wheel,etc.the telescopic cylinder lifts the platform, when starting motor, the motor will drive the gear pump to supply oil, and the oil will flow into cylinder through one-way valve and electromagnetic channel, as a result,
the telescopic cylinder rises joint by joint. When the platform rises to the highest position, the system pressure will reach a rated operating pressure. At this moment, relief valve unloads and oil pressure remains a constant operating pressure. After the machine stops, as the one-way valve maintains pressure, the platform will stay
at the position of maximum height. The platform can stop at any position below the maximum height according to onsite operating heigto supply oil, and the oil will flow into cylinder through one-way valve andelectromagnetic channel, as a result,the telescopic cylinder rises joint by joint. When the platform rises
to the highest position, the system pressure will reach a rated operating pressure. At this moment, relief valve unloads and oil pressure remains a constantoperating pressure. After the machine stops, as the one-way
valve maintains pressure, the platform will stay at the position of maximum height. The platform can stop at
any position below the maximum height according to onsite operating height.
|
Power supply voltage(v) |
Total weight(kg) |
||||||||
|
Single ladder anti-rotating telescopic cylinder aerial lift platform |
GTTY-6A |
6 |
1.02*0.85*1.8 |
200 |
0.054 |
5 |
0.75*0.75 |
1.1 |
220 |
480 |
GTTY-8A |
8 |
1.16*0.92*2.0 |
200 |
0.044 |
5 |
0.8*0.8 |
1.1 |
220 |
580 |
|
GTTY-10A |
10 |
1.16*1*2.1 |
200 |
0.04 |
5 |
0.8*0.8 |
1.1 |
220 |
650 |
|
GTTY-12A |
12 |
1.4*1.23*2.2 |
200 |
0.03 |
5 |
0.8*0.8 |
1.1 |
220 |
900 |
|
GTTY-14A |
14 |
1.4*1.23*2.3 |
200 |
0.028 |
5 |
0.8*0.8 |
1.1 |
220 |
1075 |
|
GTTY-15A |
15 |
1.4*1.23*2.4 |
200 |
0.026 |
5 |
0.8*0.8 |
1.1 |
220 |
1200 |
|
Double ladder anri- rotating telescopic cylinder aerial alloy platform |
|
