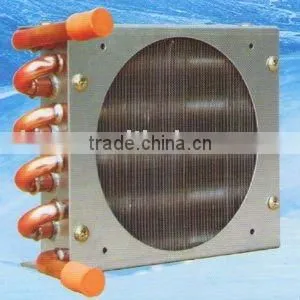

Fin tube type freezer condenser
- 1000 Piece / Pieces per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Shanghai, China | Brand Name: | DNMC | Model Number: | DN-C |
Type: | Condenser | Application: | Refrigeration Parts | Certification: | CE |
Product Description
We supply fin tube type evaproator and consenser for freezer , cooling machine or other refrigeration machine use,
1.material:copper,aluminum,galvanized plate
pper pipe:diameter 7mm,7.94mm,9.52mm,etc,inner grooved or smooth tube
3.aluminum foil:hydrophilic or bare
4.fin type:louver fin,flat fin,corrugated fin
5.pitch offins can be adjusted between 1.8-5.8mm
6.pitch of holes and pitch of rows:25×21.65mm and 19.05×12.7mm,25.4×22mm,equilateral triangle
arrangement
7.suitable for R134a,R22,R404a,R407c refrigerant and so on
8.different alternative fan available:micro fan,shaded pole orouter rotor fan motor
9.did 3.0MPA air pressure(nitrogen)test leakless
10.we can offer customized service as well
11.for more informations please contact us
