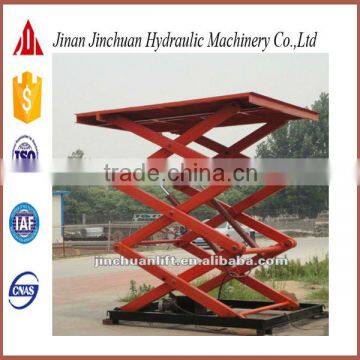

gold quality lifter/stationary scissor lift table made in china
Total description:

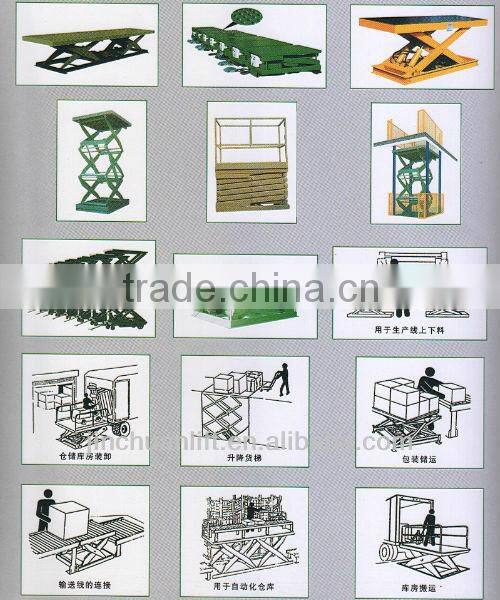

The equipment lifting performance is good, suitable for goods production lines, cargo handling the basement to the ground and the transport of goods between floors. According to the height and weight of the different structure, can be single fork type, double fork and the fork. The control mode and the power supply voltage according to the different requirements of users and a separate design.
Apllication
Mobile scissor lift platform mainly for aerial work such as machine checking and maintenance, changing spare parts, cleaning and theater settings.
Apply occasion:
Factory, mining, administration, trees cutting, electric lines, rail ways, road, airport, post, petro, lobby, hotel, chemistry, space flight, army, nuclear, camera shooting, fire control, gymnasium etc.
Product advantages:
1. Work height 4-20m platform is available, wide use range.
2. Power: AC, AC & DC, DC or manual lifting, 380V or 220V.
3. The scissors are made of high intensity manganese steel tubes, never deformed.
4. Anti-skidding and large platform, multi-person work on platform is available.
5. There is manual emergency drop valve in case power failure.e.
6. Special made casting steel hinge ear, well wearable and with a long serve lif
7. Tool box is available to place any tools in.
8. Adjustable outriggers to insure the stability.
9. The pin is made of 45# round steel, high intensity and well wearable.
10. 450-8 and 700-9 wearable tyres, which serve a long time.
11. Guide rails is available to insure the safety.
12. Limit switches and middle relay are from Schneider, French.
13. High quality O-ring: NOK- Japan.
14. Longie products are insured by Chinese People’s Insurance Co., Ltd.
Parameter
| Stationary scissor lift platform | model | lifting weight(kg) | table size(mm) | lifting height(m) | overall dimension(mm) | power(kw) | mahine weight(kg) |
| SJY0.3-4 | 300 | 1600*900 | 4 | 1700*1150*1100 | 2.2 | 400 | |
| SJY0.3-6 | 300 | 1600*900 | 6 | 1700*1150*1290 | 2.2 | 650 | |
| SJY0.5-6 | 500 | 1600*900 | 6 | 1700*1150*1290 | 2.2 | 700 | |
| SJY0.3-8 | 300 | 1700*900 | 8 | 2100*1150*1400 | 2.2 | 720 | |
| SJY0.5-8 | 500 | 1700*900 | 8 | 2100*1150*1400 | 2.2 | 750 | |
| SJY0.5-8big | 500 | 1800*1200 | 8 | 2200*1500*1400 | 2.2 | 1000 | |
| SJY0.3-9 | 300 | 1800*1200 | 9 | 2200*1500*1450 | 2.2 | 850 | |
| SJY0.3-10 | 300 | 2100*1200 | 10 | 2600*1500*1530 | 2.2 | 1500 | |
| SJY0.5-10 | 500 | 2100*1200 | 10 | 2600*1500*1530 | 2.2 | 1600 | |
| SJY1.0-10 | 1000 | 2200*1500 | 10 | 2650*1900*1740 | 3.0 | 2200 | |
| SJY0.3-11 | 300 | 2100*1200 | 11 | 2600*1500*1650 | 2.2 | 1650 | |
| SJY0.3-12 | 300 | 2530*1500 | 12 | 2950*1950*1740 | 3.0 | 2580 | |
| SJY0.5-12 | 500 | 2550*1500 | 12 | 3000*1950*1850 | 3.0 | 2700 | |
| SJY1.0-12 | 1000 | 2600*1500 | 12 | 3200*2000*2130 | 3.0 | 3400 | |
| SJY0.3-14 | 300 | 2750*1500 | 14 | 3250*1950*1970 | 3.0 | 2900 | |
| SJY0.5-14 | 500 | 2980*1500 | 14 | 3300*2000*1970 | 3.0 | 3000 | |
| SJY1.0-14 | 1000 | 3000*1600 | 14 | 3400*2200*2300 | 3.0 | 3600 | |
| SJY0.3-16 | 300 | 3000*1500 | 16 | 3600*2000*2300 | 3.0 | 3650 | |
| SJY0.5-16 | 500 | 3200*1500 | 16 | 3600*2000*2300 | 3.0 | 3700 | |
| SJY0.3-18 | 300 | 3200*1600 | 18 | 3700*2100*2500 | 3.0 | 3900 |

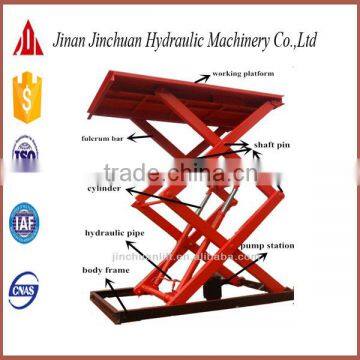

Detailed information of the lift platform
Packing &shipping

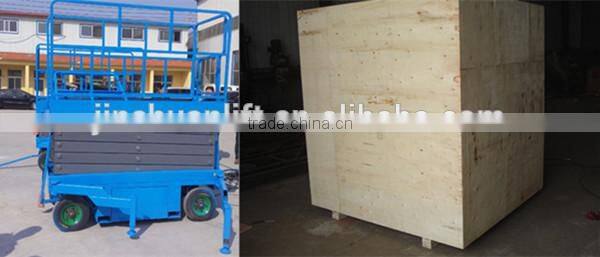

Our factory always have our lift platform packed in plywood case and shiped by sea.
Good service
A. All the machines will be full tested before shipment
B. Technical supports and suggestions before you order a machine according to your work place.
C. Professional opertion instruction of the machine.
D. 12 months warranty period and we will provide the consumable parts at cost price after the warranty period.
E. 24-hour technical support by emails, calling or videos.
Our company
Jinan Jinchuan Hydraulic Mchinery Co.,LTD. is a design,development, production, sales in one of the enterprises, specializing in the production of elevator, lift platform, hydraulic lifts and aerial work platform. The company well-equipped, strong technical force, the detection means complete, according to the development trend of domestic and international similar product and market demand as the guidance, the development of many varieties, many specifications of products, and customized according to customer requirements. The product has the advantages of novel design,simple operation, stable lifting, reasonable structure, easy maintenance, widely used in industrial and mining enterprises, factory warehouse, station pier, warehousing logistics, property management, maintenance and cleaning and many other industries and places. Company to "honesty, innovation" as its purpose, "quality first, users first" philosophy, to serve the new and old customers.
The company to high-quality product quality and perfect after sale service, sincerely welcome friends from all walks of life come to visit, study, business negotiations.
Factory room:
Frequently Asked Questions:
| MAQ | 1 set | |||
| Delivery time | 7-12 working days after received your order | |||
| Payment | 1. T/T:30% in advance, balance paid before shipping | |||
2. Alibaba Secure payment .Reliable and safe, Alibaba will charge a little handling fee. | ||||
3. Paypal, pay 100% to Paypal, Paypal will protect your right and charge 4.5% handling fee. | ||||
| Transport | 1. From Jinan, Shandong to Qingdao Port. | |||
| 2. From Qingdao Port to your destination port by sea. | ||||
