high efficient full/semi Automatic Scrap Old Waste Tire/tyre Recycling Machine/plant

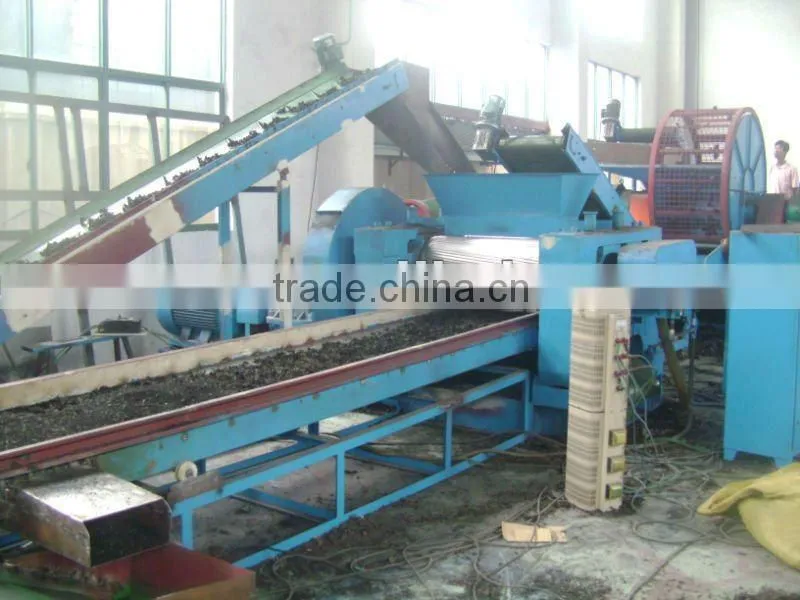

fully automatic tyre recycling production line
Good quality with reasonable price. Easy operation with convenient maintenance. Low labor intensity and low energy consumption.

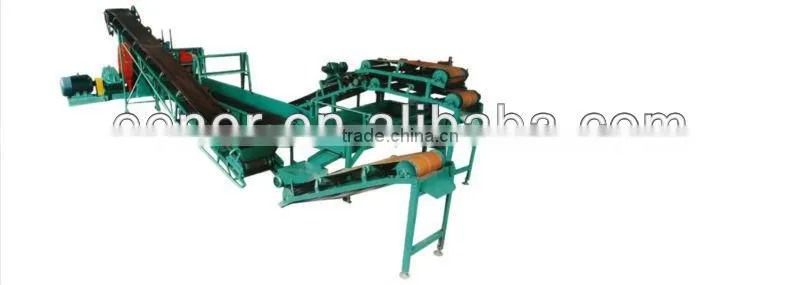

Fully Automatic Rubber Powder Production Line

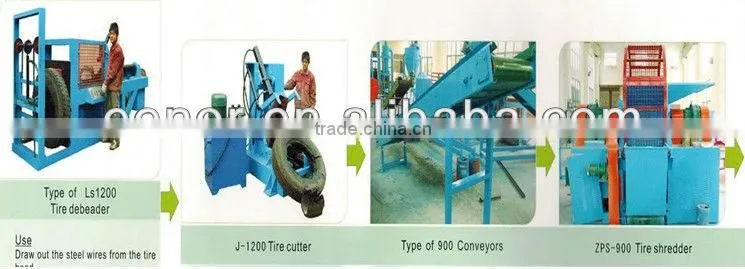

Detailed explanations of the whole fully automatic tire recycling rubber powder production line:
|
Tire/tyre debeader
|
The first step in tire recycling procession Heavy duty body Hooks and cross pulling die made of 45# steel, tempered and quenched Equipped with protection device avoiding the dangers during working Two series: hydraulic one and mechanic one Easy to operate and change spare parts (hooks and cross pulling die) |
|
Tire/tyre cutter
|
Cutting tires into pieces before shredding Small tire pieces for easier processed in shredder Knives made of YG-20 steel, long using time Hydraulic control One clamping cylinder and one cutting cylinder Equipped with a roller platform to process big tires |
|

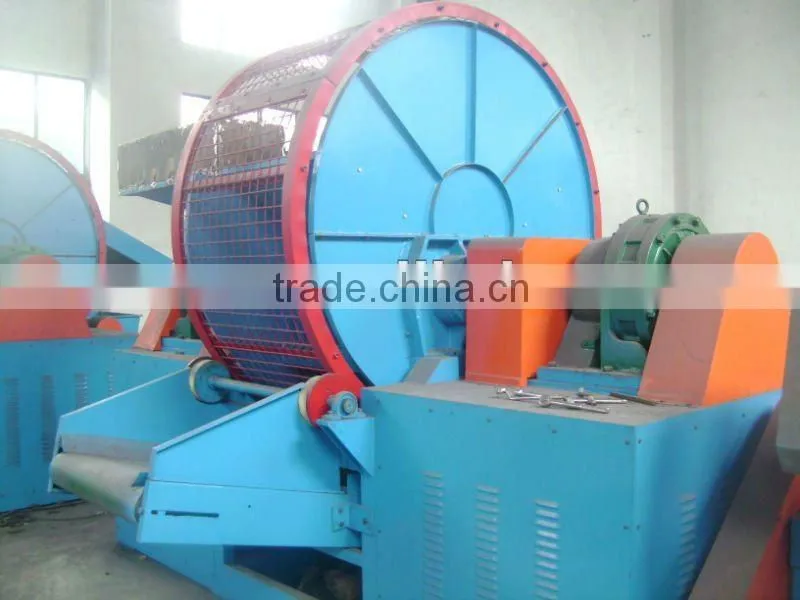

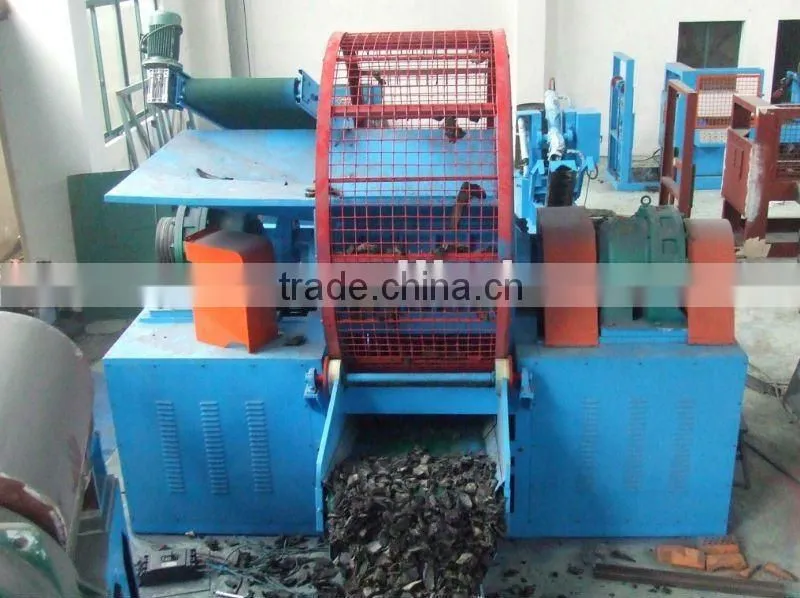

Tire/tyre shredder machine
|
Extremely precise tolerances between the cutting knives produce cleanly cut tire chips at low energy consumption. The cutting knives made of high quality alloy steel can be re-sharpened and reused which increases the service life and reduces the operating cost. The complete cutting chamber is lined with hard wear plates. Large doors equipped for easy access into the cutting chamber. |
|
Tire cracker mill/Rubber crusher
|
The shear and grinding between the two rollers will make waste tire chips into powder, steels and textiles Roller body made of cast steel Surface of roller made of alloy steel, can be welded when worn out One flat surface roller and one teethed roller Bottom made of cast iron Emergency stop when overload Distance between the two rollers can be adjusted. Hard gear gearbox Equipped with screening machine, magnetic separator and fiber separator, can get 99% purified rubber powder which separated from steel wire and fiber |
|
Magnetic separator
|
Be used to separate steel wire from rubber powder. Separated steel wire will be transferred to one place, easy to collect Permanent magnet, no more power consumption |
|
Fiber separator
|
After the rubber grinder, the nylon fiber will be grinded into fluff, with the centrifugal force, density difference, the fluff will be separated by the fiber separator. The spin fans inside the cyclone barrel driven by the motor throw the compounds to the wall, at this time, light fiber fluff will be upwards and fall down into the inside barrel, heavy rubber powder will fall down directly, so textile fiber will be separated.
|
After all the waste tyre recycling rubber powder manufacturing processing, we can get the pure rubber powder separated from steel wire and fiber from the whole waste tyre/tire. All the processing is clean without polution.

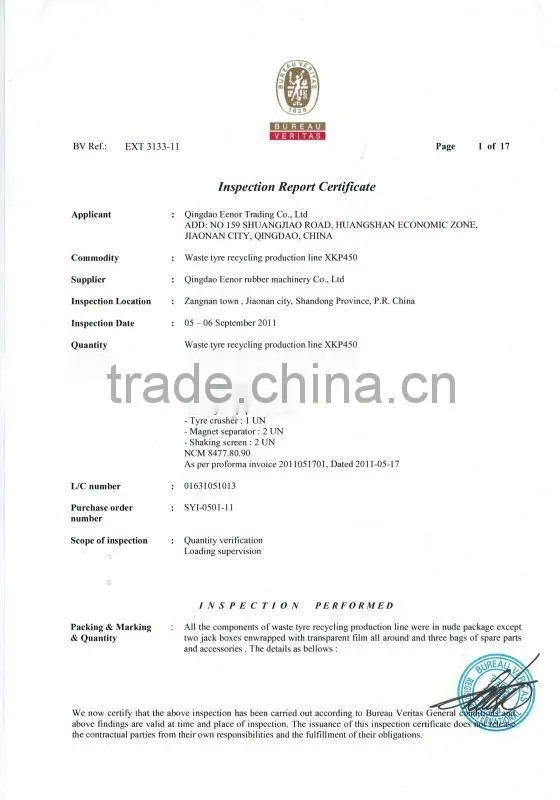

Our certification:
