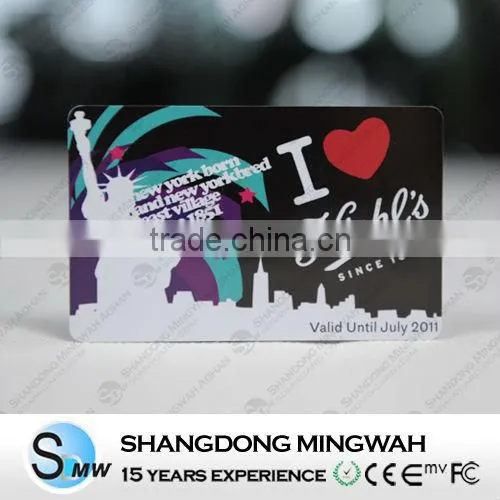

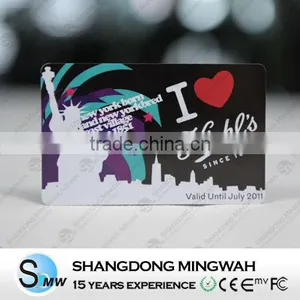

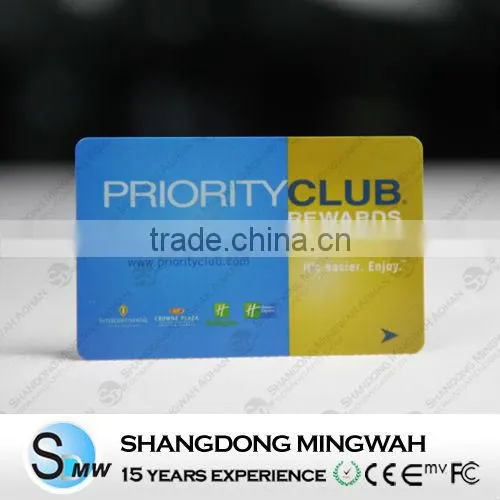

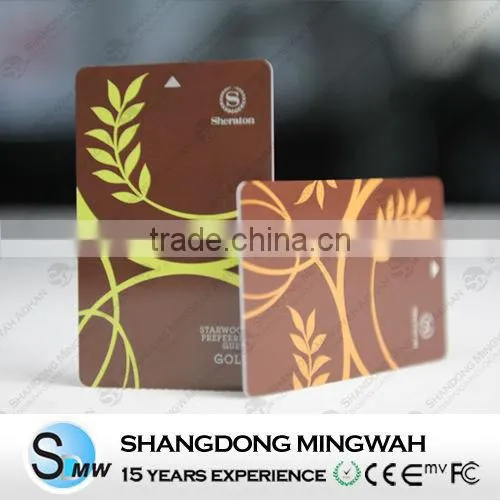

High Quality 860~960 Mhz UHF RFID Card With Long Range Reading

Name: High Quality 860~960 Mhz UHF RFID Card With Long Range Reading
Brand: SDMW
SKU: 102798955
Availability: InStock

Negotiable MOQ: 500 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

SDMW

Model Number:

UHF RFID card

Shandong Mingwah Aohan Smart Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen Beijing Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name SDMW

Model Number UHF RFID card

Specifications

UHF RFID card
1.Size: CR80/ customize
2.EPC GEN2 TAG
3.Automatic parking system
4.Especially suitable for access control

High Quality 860~960 Mhz UHF RFID Card with long range reading

Description:

Adopt Frequency Hopping working mode, with strong anti-jamming ability.
User can define the reading& writing of standard data, to make their special application system more efficient.

The effective reading distance can reach up to 8m (up to read and antenna). With 1024 writable user area (ISO18000-6B protocol) and 512 bits writable user area (EPC Gen2 protocol) .

With ultra-wide working frequency design. Meet the relevant industry regulations, and is suitable for flexible application development.
It can read and write multi-tags (up to 50pcs/s ), and is not affected or restricted by tag quantity in the working area.
1960 bits memory area for user to read, write and re-write. With permanent special area for appointed user.
Passive type, with no battery. The memory area is re-writable for more than 100,000 times. The useful life can be 10 years above, so it’s very cost-effective.

Specifications

Model No.	UHF RFID Reader
Protocol	ISO18000-6B, ISO18000-6C (EPC GEN2)
Frequency Range	ISM 865~868MHz(CE), ISM 902~928MHz (FCC)
Chip	Alien H3, Inpimj M4 and etc
Working Mode	Fixed Frequency or FHSS, Software Programmable
Memory Capacity	UHF RFID tag supports ISO18000-6B protocol, with 1024 bits (128 bytes) writable user area; and EPC GEN2 (ISO18000-6C), with 96bits writable EPC Code area, and 512 bits writable user area.
Reading Rate	Software Programmable. Average Reading per 64Bits: <10ms
Tags Material	PVC, PET
Reading Range	>12 m maximum, determined by reader and antenna
Size	86mm54mm0.5mm
Operation Temp	-20°C~ +80°C
