Specifications

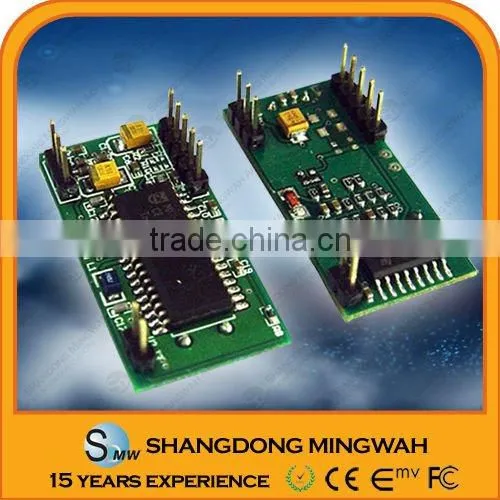

HF RFID reader module1. a dual-interface read/write module
2. Interface: RS232 or USB
3. different size for option
LF/HF/UHF RFID reader module -factory since 1992 accept Paypal
Specifications | |
Work Frequency |
902MHz~928MHz(customized) |
Protocol |
EPC Class 1 / GEN 2 |
Work mode |
FHSS or fixed frequency, can be written in software. |
Antenna |
External 1 antenna or build-in antenna, MMC joint |
|
Max RF output power |
30 dBm |
power flatness |
<0.5 DB |
Output Range |
20~30 dBm,can be adjusted by relevant software. |
Read mode |
Give instruction |
Recognition time |
<8ms |
Read/Write time |
8B/<5ms 4B/< 25ms |
Interface |
RS-232 |
Power |
DC 9V/5V |
Power loss |
≤5W |
Dimension |
70mm×100mm×2mm |
Net Weight |
40g |
Work temp. |
-10°C~+55°C |
Storage temp. |
-20°C~+85°C |
Product Features:
1.Small volume , can embedded in read/write rfid readers.
2.External 1 antenna or build-in antenna;
3.Compatible with protocol 6B and 6C meanwhile;
4.Multi-programming SDK,convenient for secondary development.
Typical Applications:
1.Intelligent transportation management:
2.ETC,customs,parking system,automatic weighing,etc;
3.Logistics Industry:
4.Container management,
5.palletizing management,Asset tracking,etc
6.M-Ticket & access control;
dical equipment& Medical waste
