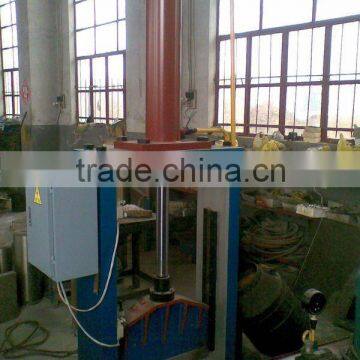

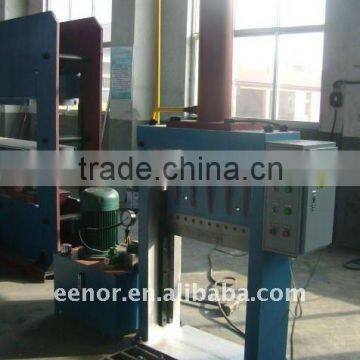

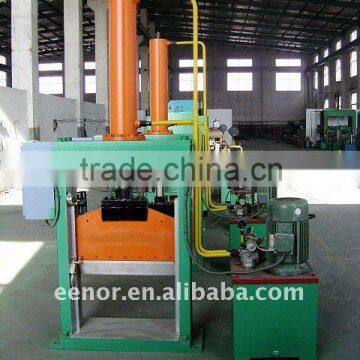

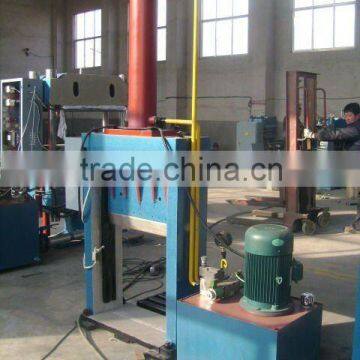

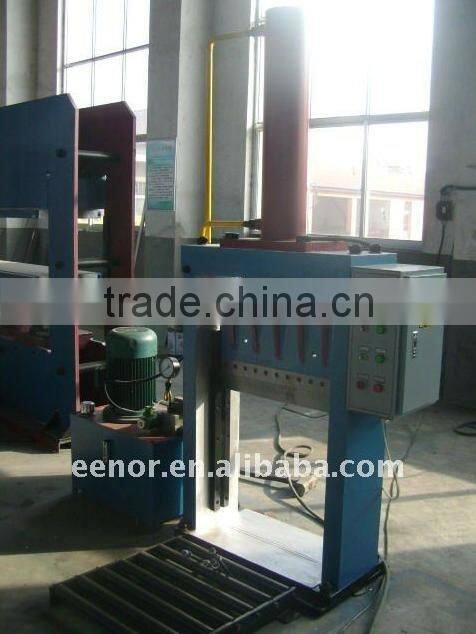

waste rubber cutting machine to sale/ rubber reclaim machine:
1.Mainly uses:
The bale cutter is mainly used to cut natural rubber, synthetic rubber, and other plastics materials, especially it is suitable to be installed near the rubber mixer to cut small pieces of rubber. The cutter is matched with working track, which makes rubber feeding much more convenient
2.structure:
This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife. When cutting the raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber. Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder
3.Characteristics:
1. low noise
2. constant temperature 3. automatic pressure mataining and pressure supplement
4.It has solid construction, reasonable design, high production efficiency, easy operation.
5. Cutting knife is controlled by hydraulic system, and reciprocating motion.
6.CE standard ISO9001 certified
.
Type |
XQL-80 |
XQL-160 |
Motor power (kw) |
5.5 |
5.5 |
Fixed cut-off strength |
80 KN |
160 KN |
Work flowing tubing head pressure (Mpa) |
8 |
12 |
Bale splitter width(mm) |
660 |
1000 |
Bale splitter starveling schedule (mm) |
680 |
680 |
Weight (kg) |
1200 |
1500 |
Overall dimension (mm) |
2000*1000*2500 |
2000*1200*2500 |
This bale cutter is mainly used to cut the natural rubber, synthetic rubber, and other plastics materials, especially it is suitable to be installed near the rubber mixer to cut small piece of rubber.
This bale cutter mainly consists of rubber knife, frame, cylinder, base, auxiliary table, hydraulic system, and electric system. The lead is casted on the base under the rubber knife for protecting the edge of the rubber knife. When cuttingthe raw rubber, put the raw rubber under the rubber knife, then press the start button, the knife can cut the rubber. Two limit switches are installed on the frame to control the reversal valve to change the movement direction of the rubber knife, at the same time it protects the cover of the cylinder.
