BW-T645 Flip Up AC Inlet Socket / Aluminum Desk Socket

BW-T645 Flip Up AC Inlet Socket / Aluminum Desk Socket thumbnail-1
BW-T645 Flip Up AC Inlet Socket / Aluminum Desk Socket photo-1
US$ 38 - 48 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
BW
Model Number:
BW-T645
Contact Supplier Request Quote Chat Now
(Guangzhou) BW Audiovisual Solution Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name BW
Model Number BW-T645
Type Other, Tabletop Socket, flip up module
Grounding Standard Grounding
Rated Voltage 220V
Rated Current 13A
Application Commercial

BW-T645 Flip Up AC Inlet Socket / Aluminum Desk Socket



Introduction Of AC Inlet Socket

   The AC inlet socket is with high quality aluminum with anodizing surface treatment, which is ideal for board room, classroom, training room, hotel system, lecture room etc. The brush is to prevent the socket from dust,water etc. during use. With its advanced appearance and innovative design, it has become one of our latest promotion products.



 Features Of AC Inlet Socket

1. with square shape, it takes small area on the desk;

2. soft brush not only protect the cables, but also protect from water, dust etc.;

3. flip-up operation to hide all the modules;

4. changeable connectors to satisfy different customer's request;

5. after use finished, surface of desktop pop up socket flush with the desk;



General Of AC Inlet Socket

Power110V-240 VAC 50/60Hz 13A(with power-off indicator)
computer 15-Pin HD VGA female
audio3.5mm stereo female jack/RCA female
videoRCA female
LANRJ-45(CAT.5E) network/cat6/data/connector
TelephoneRJ-11 voice(CAT3)
USB USB2.0 female
HDMIHDMI1.3 female
MIC6.35mm stereo female jack

BW-T645 Flip Up AC Inlet Socket / Aluminum Desk Socket

Technical Of AC Inlet Socket

DimensionsOverall (LxWxH) 266 x 130 x 77mm
MaterialSteel box profile + Aluminum panel
FinishSilver/black flip-up cover, Oxidation and Blushed
Max table thickness60mm (to be connected to extended part)
Mounting hole257mmx117mm, R=12mm
Work mannerFilp up the cover and plug in the required connectors then  release them back on the desktop.



AC Inlet Socket Technical Advantages

1. Selected 5mm thickness aluminum panel

2. Gap between the inner and outer panel within 0.5mm

3. Oxidation and blushed treatment

4. Round corner, more smooth and beautiful

5. Cleaned weld point, no sharp welding spatter left over in the box


AC Inlet Socket Package&Shipping

1pc in a small package size 31*18*21cm

6pcs in a big package size  56*32.5*30.5cm

by courier like DHL, FedEx, UPS, TNT, TOLL etc.

by air to any airport around the world

by sea to any port around the world

by trail to inland countries

BW-T645 Flip Up AC Inlet Socket / Aluminum Desk Socket

 Service

1. Sample service is available

2. OEM is warmly welcomed

3. Shipment and sample quality tracking.

4. Quick response , enquiry will be repond within 24 hours

5. high qualified after sale service


FAQ

BW-T645 Flip Up AC Inlet Socket / Aluminum Desk Socket

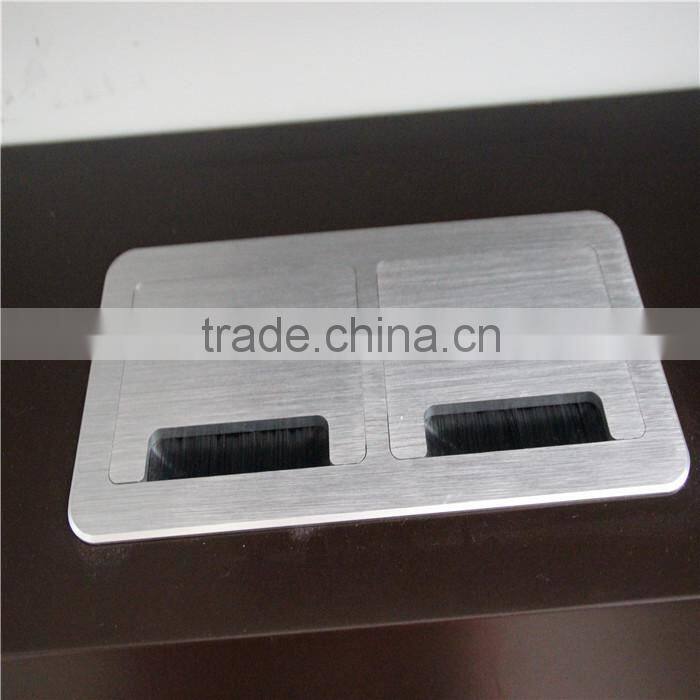

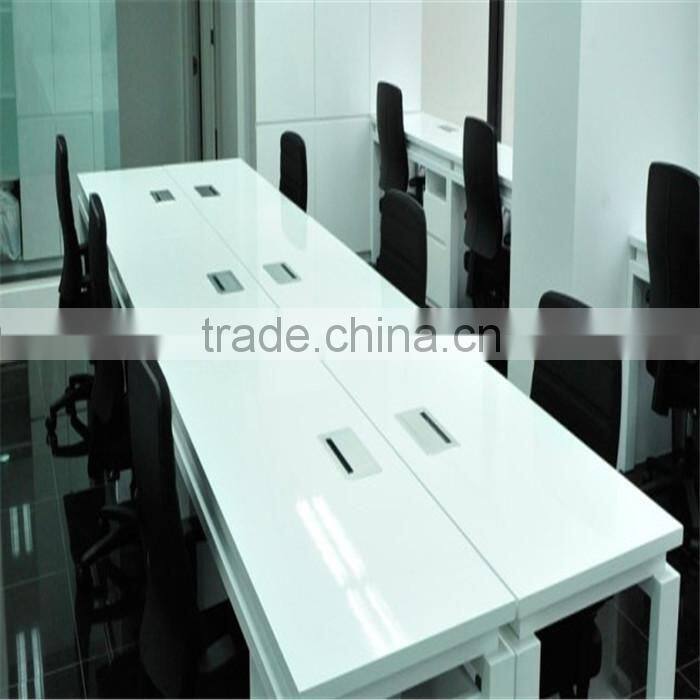

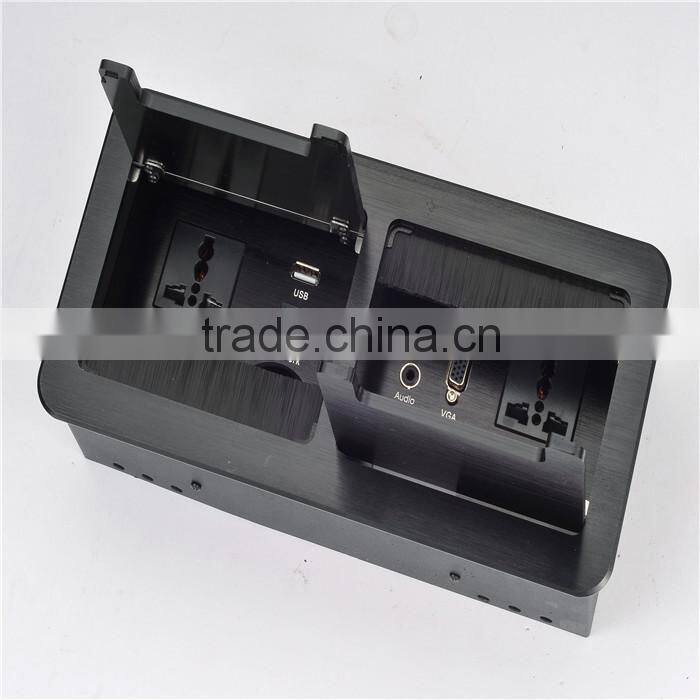

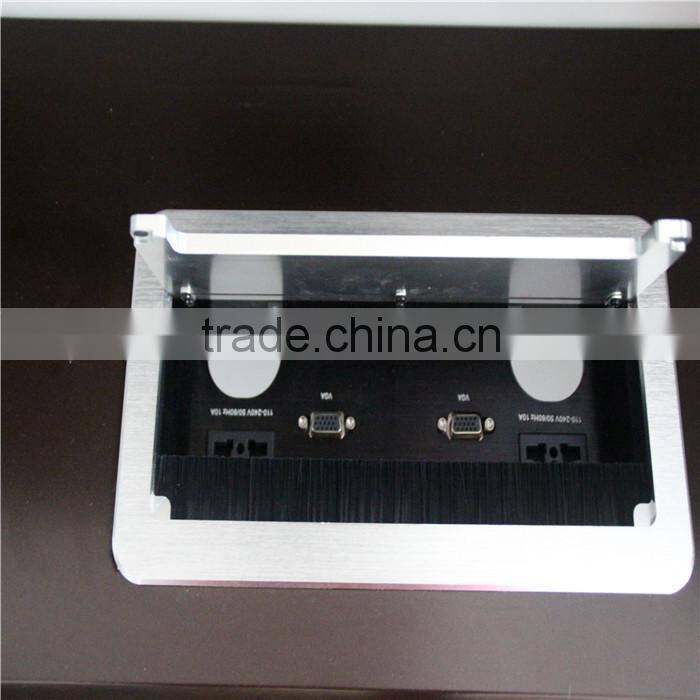

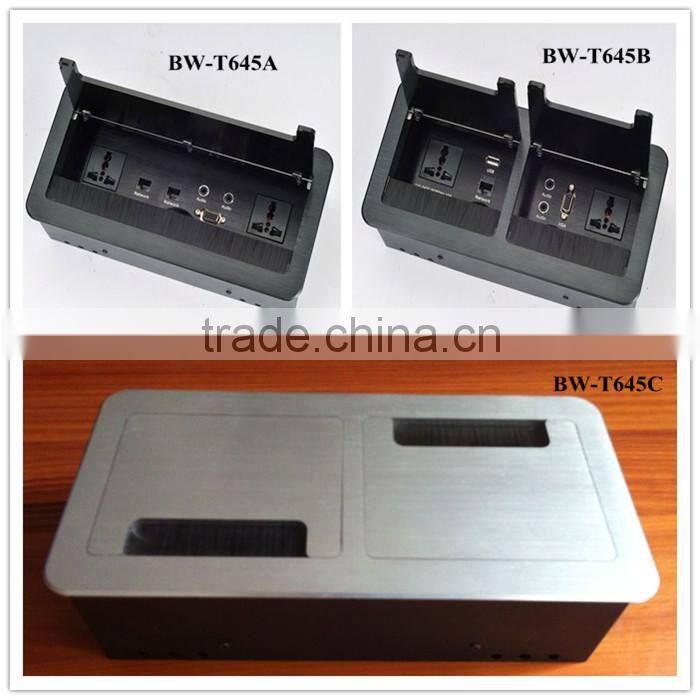

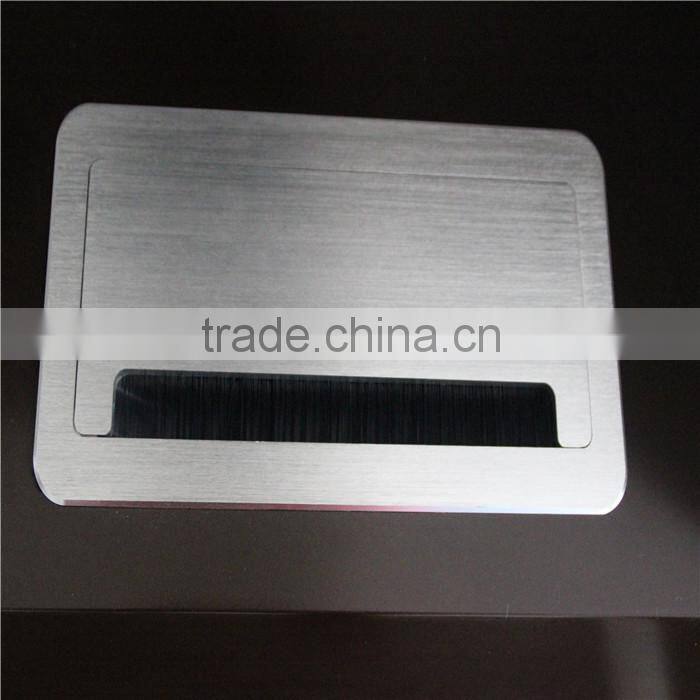

Pictures Of AC Inlet Socket

BW-T645 Flip Up AC Inlet Socket / Aluminum Desk SocketBW-T645 Flip Up AC Inlet Socket / Aluminum Desk SocketBW-T645 Flip Up AC Inlet Socket / Aluminum Desk Socket

BW-T645 Flip Up AC Inlet Socket / Aluminum Desk SocketBW-T645 Flip Up AC Inlet Socket / Aluminum Desk SocketBW-T645 Flip Up AC Inlet Socket / Aluminum Desk SocketBW-T645 Flip Up AC Inlet Socket / Aluminum Desk Socket

Other Related AC Inlet Socket

BW-T645 Flip Up AC Inlet Socket / Aluminum Desk Socket

 Factory Show

BW-T645 Flip Up AC Inlet Socket / Aluminum Desk Socket

Payment Method

BW-T645 Flip Up AC Inlet Socket / Aluminum Desk Socket

Certifications

BW-T645 Flip Up AC Inlet Socket / Aluminum Desk Socket

 Warmly Welcome Contact Details

BW-T645 Flip Up AC Inlet Socket / Aluminum Desk Socket
