BW-645 desk top socket POWER HDMI DATA TEL
Desk top socket is with high quality aluminum with anodizing surface treatment, which is ideal for board room, classroom, training room, hotel system, lecture room etc. The brush is to prevent the socket from dust,water etc. during use. With its advanced appearance and innovative design, it has become one of our latest promotion products.
1. with square shape, it takes small area on the desk;
2. soft brush not only protect the cables, but also protect from water, dust etc.;
3. flip-up operation to hide all the modules;
4. changeable connectors to satisfy different customer's request;
5. after use finished, surface of desktop pop up socket flush with the desk;
General:
| Power | 110V-240 VAC 50/60Hz 13A(with power-off indicator) |
| computer | 15-Pin HD VGA female |
| audio | 3.5mm stereo female jack/RCA female |
| video | RCA female |
| LAN | RJ-45(CAT.5E) network/cat6/data/connector |
| Telephone | RJ-11 voice(CAT3) |
| USB | USB2.0 female |
| HDMI | HDMI1.3 female |
| MIC | 6.35mm stereo female jack |
Technical
| Dimensions | Overall (LxWxH) 266 x 130 x 77mm | |||||
| Material | Steel box profile + Aluminum panel | |||||
| Finish | Silver/black flip-up cover, Oxidation and Blushed | |||||
| Max table thickness | 60mm (to be connected to extended part) | |||||
| Mounting hole | 257mmx117mm, R=12mm | |||||
| Work manner | Filp up the cover and plug in the required connectors then release them back on the desktop. | |||||
Technical Advantages
1. Selected 5mm thickness aluminum panel
2. Gap between the inner and outer panel within 0.5mm
3. Oxidation and blushed treatment
4. Round corner, more smooth and beautiful
5. Cleaned weld point, no sharp welding spatter left over in the box
Regular Package: 1pc in a small package size 31*18*21cm
6pcs in a big package size 56*32.5*30.5cm
Shipping: by courier like DHL, FedEx, UPS, TNT, TOLL etc.
by air to any airport around the world
by sea to any port around the world
by trail to inland countries
1. Sample service is available
2. OEM is warmly welcomed
3. Shipment and sample quality tracking.
4. Quick response , enquiry will be repond within 24 hours
5. high qualified after sale service

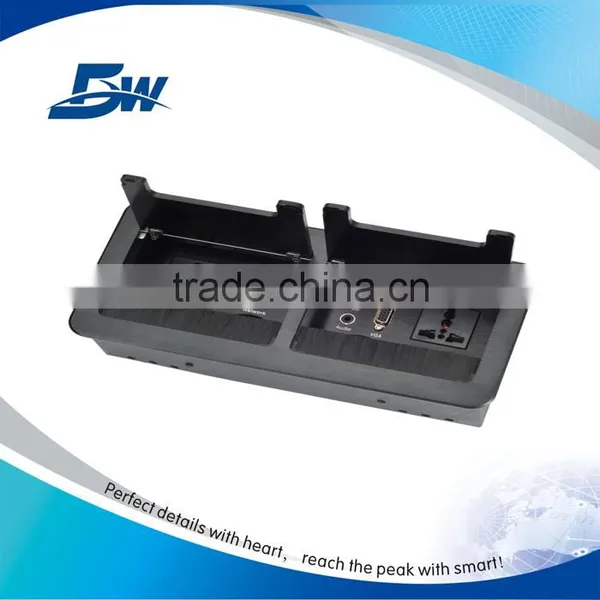

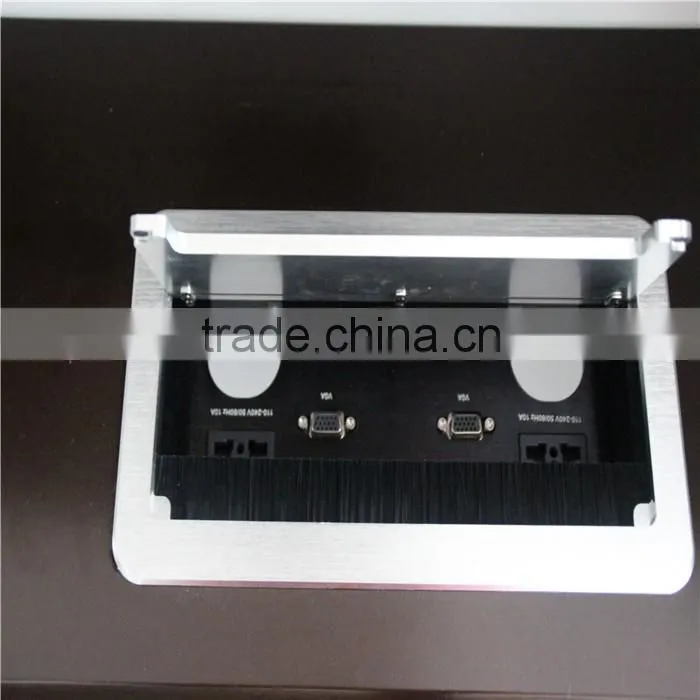

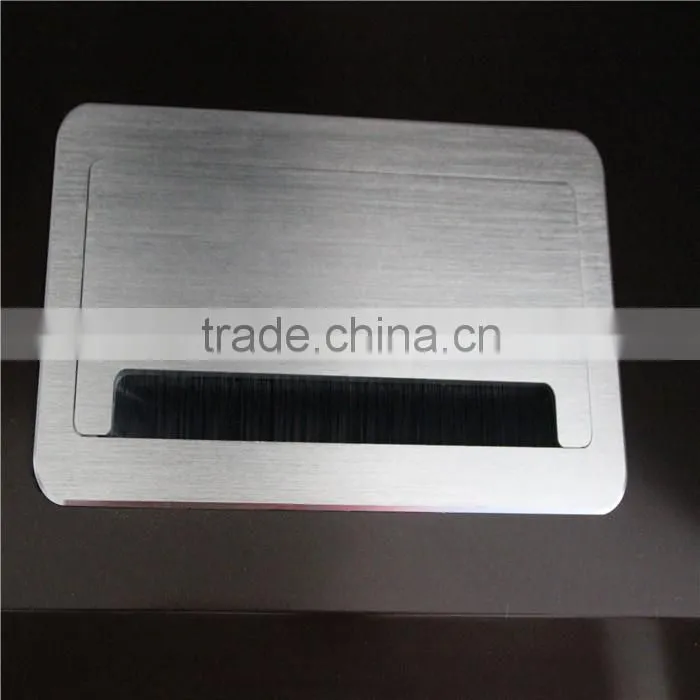

Pictures of desk top socket
Other related desk top socket
Should you know more information, kindly contact me at any time.
