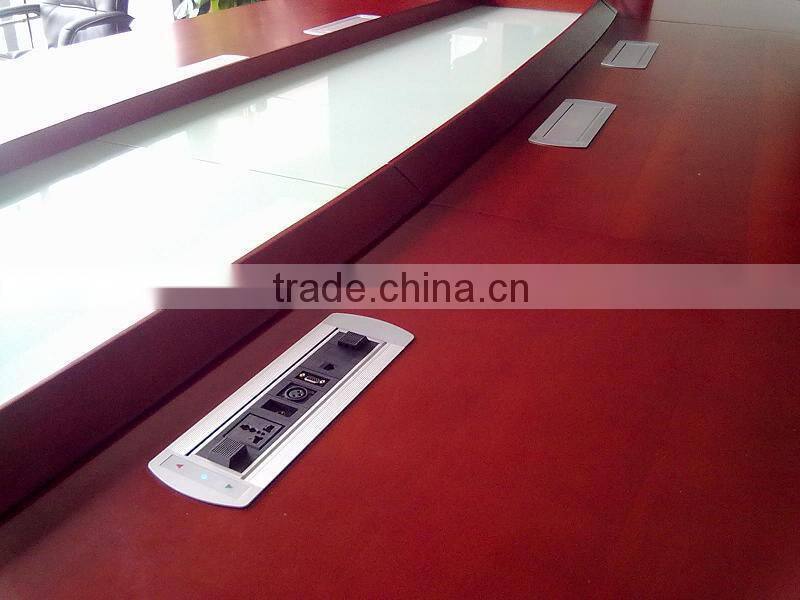

BW-T66 Motorized Flip Up Table Top Eletric Socket Box
Description Of Table Top Eletric Socket Box
BW-T66 series table top electric socket box is an innovative equipment to provide electrical and AV access. It is used together with the furniture. It integrates the electronics technology and automation into the modern furniture and humanize with the automation and safety.
Features Of Table Top Eletric Socket Box
1. It is equipped with power outlet, network, telephone, audio, microphone, VGA, HDMI, USB, RCA, XLR connectors and etc. Other AV connectors are customized.
2. It offers photoelectric protection and magnetic clutch motor drive protection.
3. Hiding all the connectors through one button when not in use, in order to avoid accident caused by drop and foreign bodies, and also get effect of beauty and decoration
4. It has the photoelectric lock out to prevent the vault from closing when anything is plugged into the unit; this feature also avoids the potential cord damage and hand injury. It will close by turning around 180 degrees to hide all the connectors with the press of the button when no cords and plugs are connected to the unit.
5. In order to keep safe, it will rebound when working with nipping something or blocking.
6. It has an electric motor drive with magnetic clutch. This ensures reliable rotation and the ability orient itself to the proper position.
7. Passed the certificate of CE.
8. BW promise you one year product warranty, all-life after service.
Connectors Of Table Top Eletric Socket Box
| Power | 110V-240 VAC 50/60Hz 13A(with power-off indicator) |
| computer | 15-Pin HD VGA female |
| audio | 3.5mm stereo female jack/RCA female |
| video | RCA female |
| LAN | RJ-45(CAT.5E) network/cat6/data/connector |
| Telephone | RJ-11 voice(CAT3) |
| USB | USB2.0 female |
| HDMI | HDMI1.3 female |
| MIC | 6.35mm stereo female jack |
| shift | press switch |
Technical Of Table Top Eletric Socket Box
| Product name | Table Power Electric Socket | ||
| Item No. | BW-T66EA | Module qty/pc | Size |
| Panel shape | round/straght corner | 3 modules | 258*110*103mm |
| Material | aluminum alloy+plastic | 4 modules | 284*110*103mm |
| Color | silver/black | 5 modules | 310*110*103mm |
| N.W | 1.8kg/pc | 6 modules | 336*110*103mm |
| Package size | 45*18*19cm/pc | 7 modules | 362*110*103mm |
| Voltage | 110-220V/50HZ | 8 modules | 388*110*103mm |
| Working environment | at -10 °C or above | 9 modules | 414*110*103mm |
| Certificate | CE approved | 10 modules | 440*110*103mm |
| Available modules | power(Universal,UK, USA,EU,AU),data(cat5/cat6),tel,vga,audio,vedio, hdmi,usb,MIC | ||
| Remark:Universal/UK/EU/AU power take 2 modules position | |||
Operate process Of Table Top Eletric Socket Box
1, plug the power and confirm the power indicator is on
2, press the operational button(Green), all the connectors are revealed by 180 degree rotation;
3, after use finished, press the closed button(Red), all the connectors are concealed by 180 degrees rotation again.
Package&Shipping Of Table Top Eletric Socket Box
usually is with standard export cartons:
1pc/ ctn 45*18*19cm
6pcs/ctn 59*56*42 cm
by courier like DHL, FedEx, UPS, TNT, TOLL etc.
by air to any airport around the world
by sea to any port around the world
by trail to inland countries
Service
1. Sample service is available
2. OEM is warmly welcomed
3. Shipment and sample quality tracking.
4. Quick response , enquiry will be repond within 24 hours
5. high qualified after sale service
