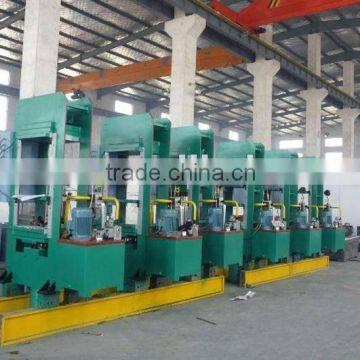

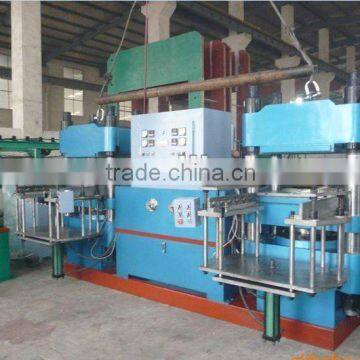

frame structure plate vulcanizing press machine
1.Large plate vulcanizing press
2.High efficiency , high quality
The machine applies to vulcanizing various kinds of rubber and plastic model products as well as non-model products.

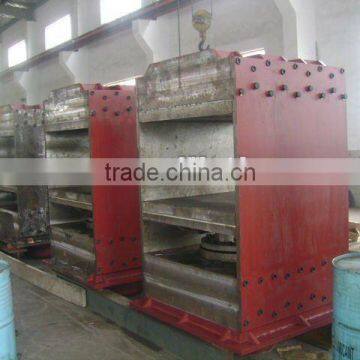

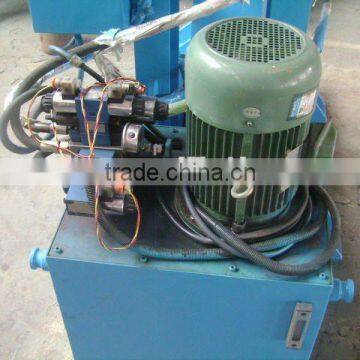

The machine is frame structure with below pressing form (upwards). Under the hydraulic pressure, the piston plunger ascends to make hot plate close for getting pressure, while the piston plunger descends (namely hot plate turning on) by deadweight of hot plate, platform and piston plunger to drive working fluid to fuel reserve tank to achieve the aim of descending (namely turning on).
l
Type | XLB-DQ400*400*2 | XLB-DQ600*600*2 | XLB-DQ750*850*2 | XLB-DQ1000*1000*2 | XLB-DQ1500*1500*2 | XLB-DQ300*300*2 |
Total pressure | 0.50 MN | 1.00 MN | 1.60 MN | 4.00 MN | 8.00 MN | 0.25 MN |
Plate size | 400*400 mm | 600*600 mm | 750*850 mm | 1000*1000 mm | 1500*1500 mm | 300*300 mm |
Plate clearance | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm | 125 mm |
Working layer nuber | 2 | 2 | 2(4) | 2(4) | 2(4) | 2 |
Piston stroke | 250 mm | 250 mm | 250(500) | 250(500) | 250(500) | 250 mm |
Plate pressure | 3.1 Mpa | 2.8 Mpa | 2.5 Mpa | 4.0 Mpa | 3.6 Mpa | 2.1 Mpa |
Motor power | 2.2 kw | 3 kw | 3 kw | 5.5 kw | 5.5 kw | 2.2 kw |
weight | 1300 kg | 3500 kg | 6500 kg | 11000 kg | 22000 kg | 1050 kg |
