Specifications

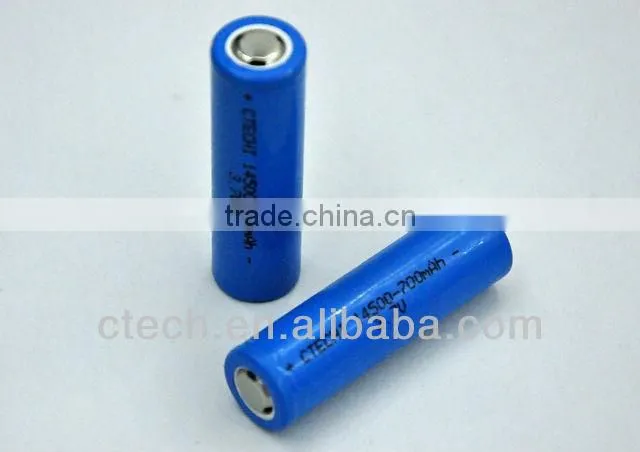

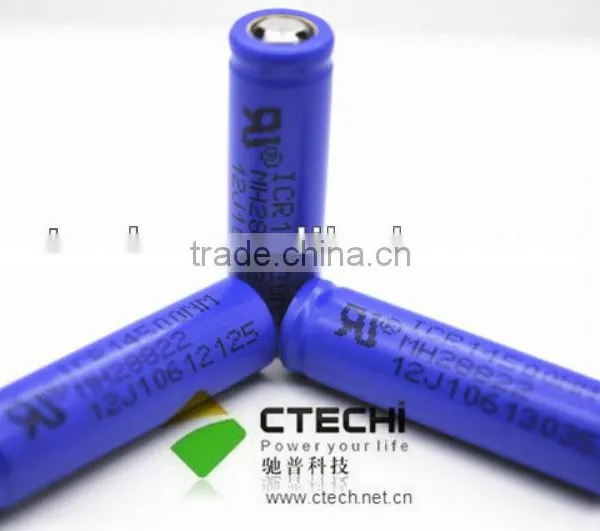

li ion battery cell ICR14500Model No.:ICR14500
Description: Li-ion rechargeable battery
Nominal voltage: 3.7V
Model No.:ICR14500
Description: Li-ion rechargeable battery
Nominal voltage: 3.7V
Nominal capacity: 750mAh
ROHS
Cylindrical Rechargeable Li-ion Battery
Model ----- ICR14500
Nominal voltage--------3.7V
Weight -------Approx. 20.8g
Capacity: C5mAh-------- 750mAh
Charging Voltage---------4.200±0.049V
Min. discharging cut-off Voltage--------- 2.75V
Max. Charging cut-off Voltage ---------- 4.20V
Diameter ------------- 13.9±0.2mm
Height----------- 50±0.5mm
Charging Term (20oC):
Standard charging------ First at 350mA of current charged to 4.2V;
then by constant current to the minimum drain of 20mA
Speedy charging---- 750mAto 4.2V, then constant voltage to 20mA
Working Ambient(Suggested)
Stock Temp. (15-35°C)
Relative humidity (45-75%)
Air pressure (86-106Kpa)
Discharging------------ -20-60°C
Standard charging------------- 0-45°C
Relative humidity ------------- <93%
Air pressure------- 86-106kPa
Standard Testing Ambient (Except special requirements)
Temperature-------- 20°C±5°C
Relative humidity---------------- 65±20%
Other types of batteries as follows:
ICR26650, ICR18500, ICR18650, ICR18630, ICR17670, ICR17500, ICR17360, ICR16340, ICR14650, ICR16340, ICR14500, ICR14430, ICR14250, ICR10440, ICR10250, ICR10220 and so on.
Model |
Nominal Voltage |
Capacity |
Dimension |
Weight |
||
Typical |
Nominal |
Diameter |
Height |
|||
ICR14430 |
3.7 |
650 |
620 |
14.3 |
43.0 |
16 |
ICR14470 |
3.7 |
720 |
700 |
14.3 |
47.0 |
17 |
ICR14500 |
3.7 |
750 |
720 |
14.3 |
50.0 |
18 |
ICR14650 |
3.7 |
1050 |
1000 |
14.3 |
65.0 |
24 |
ICR17335 |
3.7 |
700 |
650 |
17.0 |
34.5 |
18 |
ICR17500 |
3.7 |
1100 |
1050 |
17.0 |
50.0 |
27 |
ICR17650 |
3.7 |
1500 |
1450 |
17.0 |
65.0 |
36 |
ICR18490 |
3.7 |
1400 |
1350 |
18.3 |
49.0 |
33 |
ICR18650 |
3.7 |
2000 |
1950 |
18.3 |
65.0 |
45 |
ICR18650H |
3.7 |
2200 |
2150 |
18.0 |
65.0 |
46 |
RCR123A |
3.7 |
600 |
550 |
17.0 |
34.5 |
20 |
RCR-V3 |
3.7 |
1300 |
1250 |
15(T)×28.6(W)×51.9(H) |
40 |
|
CTECHI(Cheape Technology) has been the professional battery manufacturer for 7 years and a reliable battery dealer on Alibaba for 5 years.
We emphasize in excellent quality with cheap price.
All kinds of batteries,battery packs,battery holders and battery chargers can be supplied to meet customer demands.
For any question,comment or more information,please do not hesitate to contact me.
