Hydraulic Scissor Lift
hydraulic scissor lifts with CE

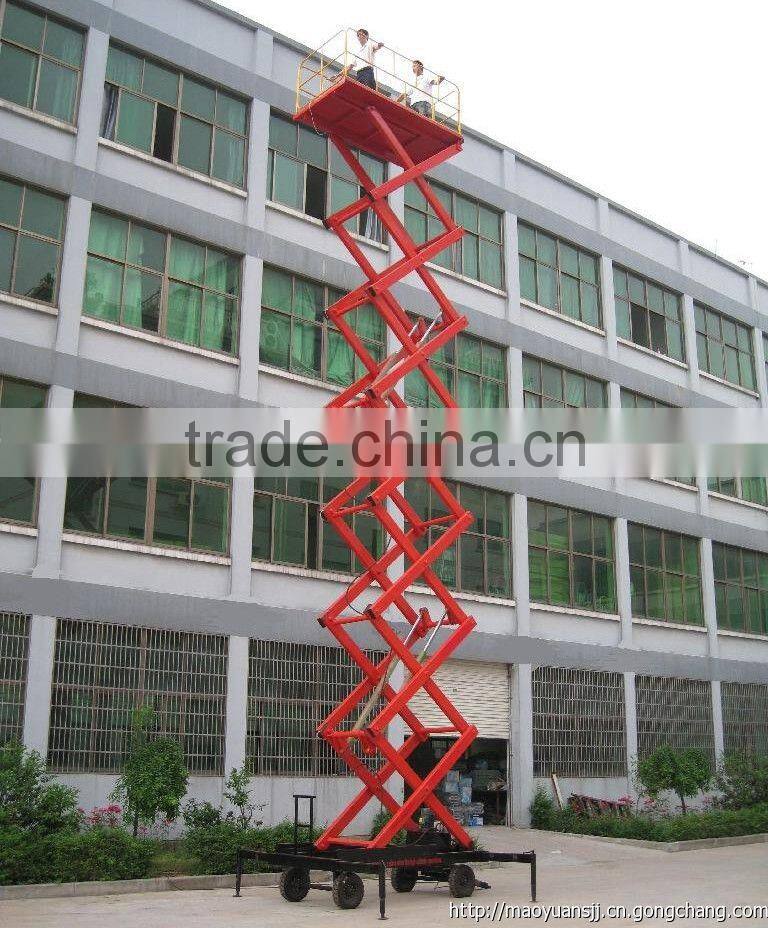

This series of lift is scissor lift has lifting height ranging from 1.35m to 6m,and loading weight up to 600kg,with lifting mode of manually operating,electric,battery,and diesel oil,etc.
Explosion-proof electric apparatus can be chosen for special places;
Remote control device platform can be installed according to the your request.
Model |
lifting height(m) |
lifting weight(kg) |
platform size(mm*mm) |
overall dimension(mm³) |
power(kw) |
machine weight(kg) |
SJY0.5-6 |
6 |
500 |
1600*900 |
1700*1150*1290 |
2.2 |
700 |
SJY0.5-8 |
8 |
500 |
1700*900 |
1850*1200*1350 |
2.2 |
750 |
SJY0.5-8big |
10 |
500 |
1800*1200 |
2200*1500*1350 |
2.2 |
1000 |
SJY0.5-10 |
10 |
500 |
2100*1200 |
2600*1500*1530 |
2.2 |
1600 |
SJY0.5-12 |
12 |
500 |
2550*1500 |
3000*1950*1850 |
3.0 |
2700 |
SJY0.5-14 |
14 |
500 |
2980*1500 |
3300*2000*1970 |
3.0 |
3000 |
SJY0.5-16 |
16 |
500 |
3200*1500 |
3600*2000*2300 |
3.0 |
3700 |
Power
1. Electricity or diesel: local power available at the working sites(110V,220V,380V,415V), diesel engines and generators.
2. It can be equipped with manual hydraulic device, so when there is no power at the occsions or the power supply goes out, the lift can still work normally.
Control
1. Manual control and electric control
2.Electric control: There are two control systems(optional). One is hand button, which may be placed in any position on the table rail for the convenience of operation. The other is fixed on the electric-control box, which is supported with emergency stop button for prevention of any accident.
Safety
1. In special circumstance, the scissor lift can equip explosion-proof electric equipment.
2. The platform is equipped with antiskid plate to prevent slipping, it is enough safe when workers on the platform.
3. The lift has hydraulic overload protective organization to ensure that equipment will not lift when the load beyond its rated load capacity.
4. The scissor lift is equipped single control solenoid valves to prevent the platform dropping if power failure. You can open the manual dropped valve to lower the platform to the home position.
