Home > Products > LED CHIP SMD > 10-12LM 3014 SMD LED White Lighting

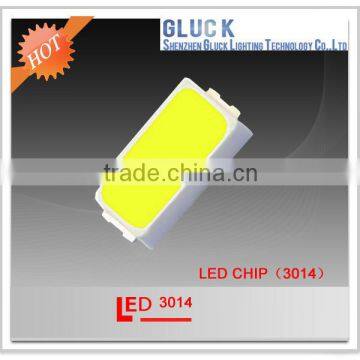

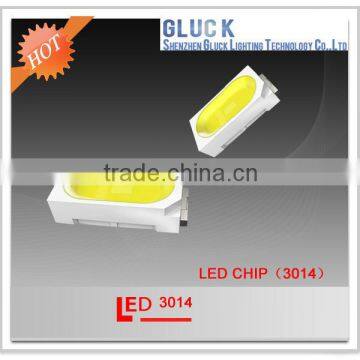

10-12LM 3014 SMD LED White Lighting
- Sungang Port
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
| Model Number | JJW-3014 | Chip Material | InGaN | |
| Emitting Color | Natural White | Luminous Intensity | 10-12 | |
| Luminous Flux(lm) | 10-12 | Optical Attenuation(%) | 0.2 | |
| Power | Other, 0.1w | Power Dissipation | 0.01 | |
| Color Rendering Index(Ra) | 70 | Color Temperature | 4000-4500k | |
| Operating Temperature(℃) | -40, 85 | Storage Temperature(℃) | -40, 100 | |
| Place of Origin | Guangdong, China | Brand Name | JJW | |
| Certification | CE |
Product Description
Specifications
1)Luminous flux: 10-12lm
2)CRI>70
3)Package: 4000PCS/Package
4)With CE,Rohs certification
Features:
1. The vertical structure: Chip direct conduction fins to improve the heat dissipation performance, which can withstand the higher current (30mA)
2.Oversized light-emitting surface: to improve the rate of light: up to 90%.
3, Super stability: low light fades material, process, process maturity and stability.
4. Original, high quality materials
5. Long lifes pan: 50000hrs
6. Long Warranty: 2years
7. Reply your enquiries within 12 working hours
8..Direct replacement conventional lamp;
9.Excellent heat dissipation design, more safe and durable;
10.Environmental friendly, no mercury and lead-free ;
11. Different color for choice: Blue, Red, Green, Yellow, Pink, Ice Blue

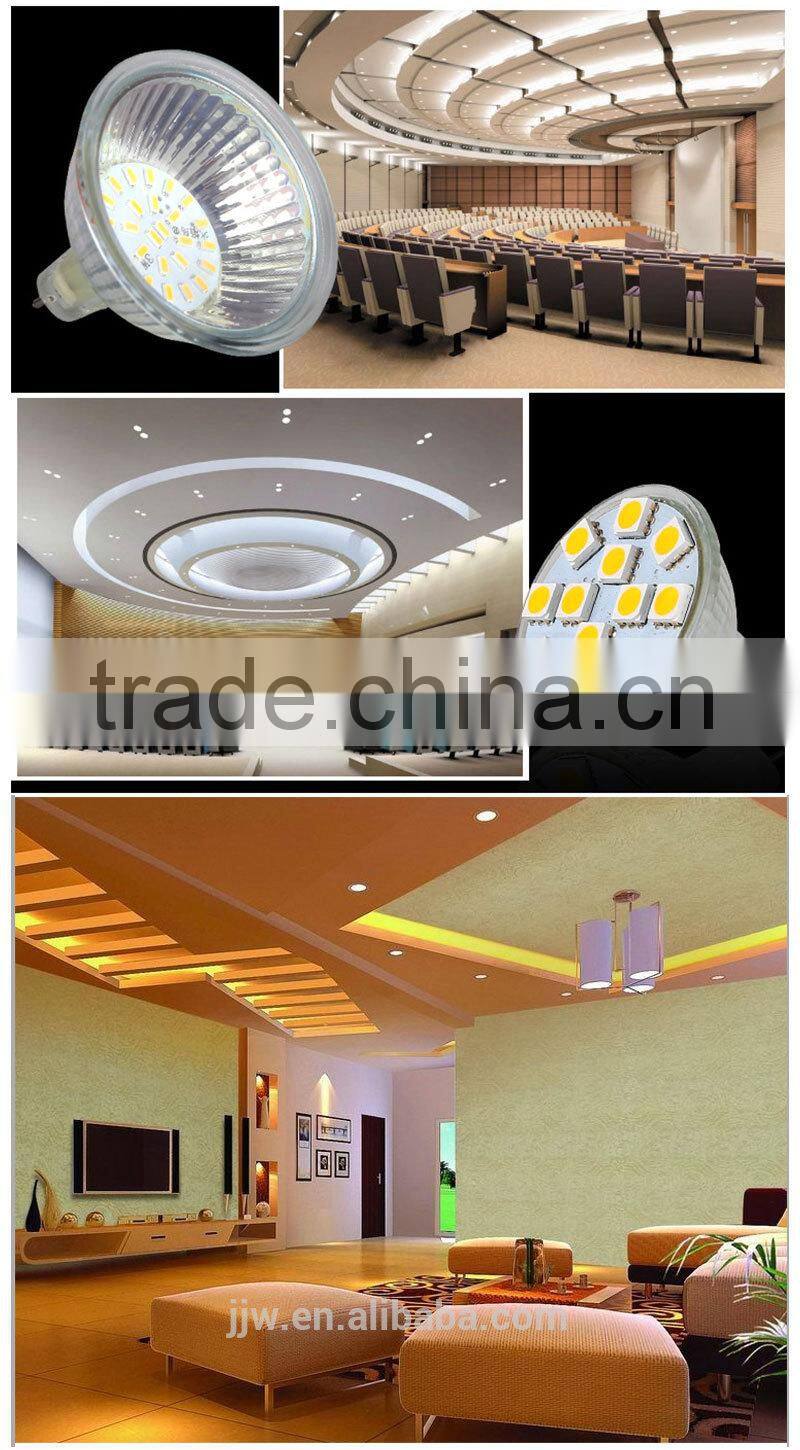

Applications:
1.Indoor displays
2.Substitution of micro incandescent lamps
3.traffic lights
4.Interior and exterior automotive lighting(e.g.dashboard backlighting and brake lights)
5.Backlighting(LCD,cellular phones,switches,keys,displays,illuminated advertising)

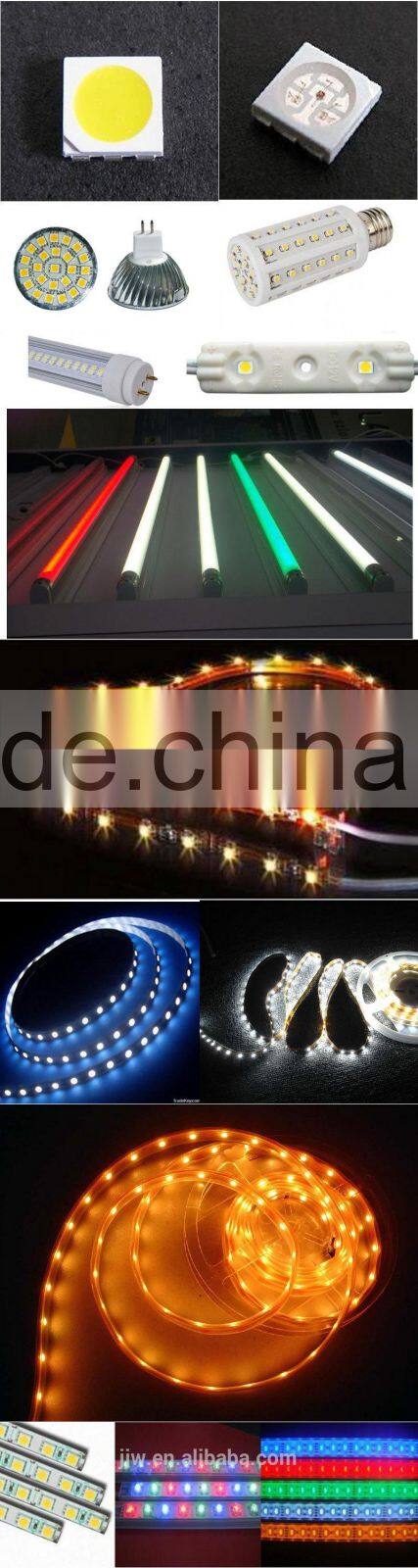

6.Widely used in Led Tube,Led lamp,Led Strip,Led Bulb,Led spotlight,Led Downlight,etc
