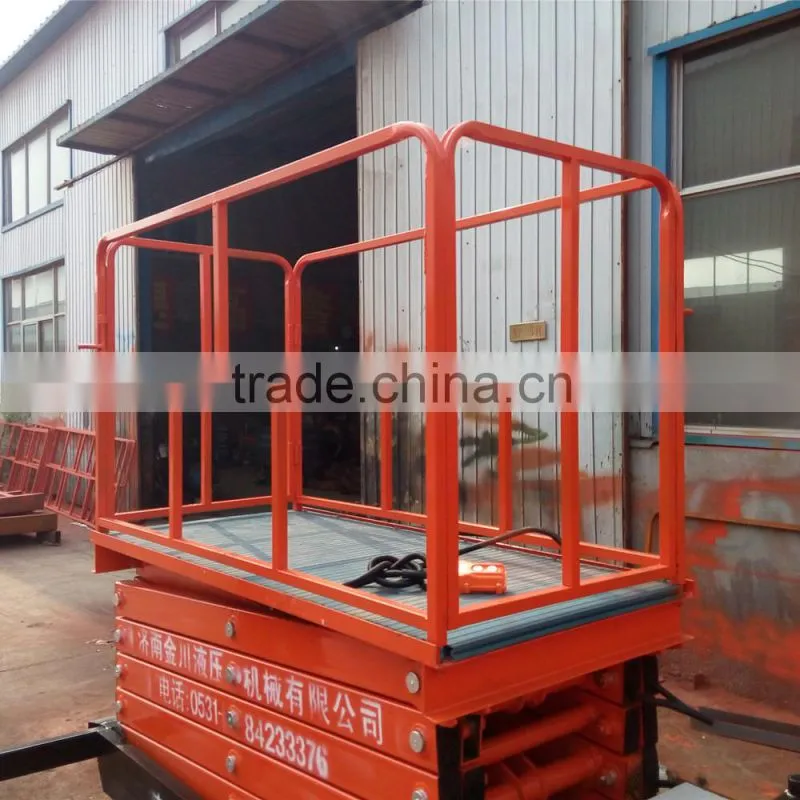

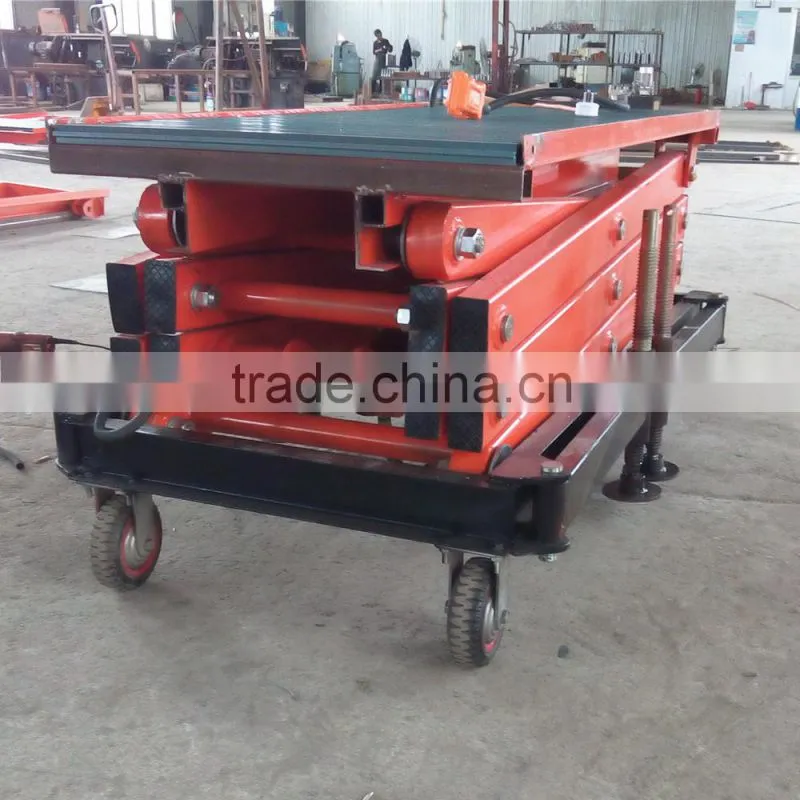

manual portable scissor lift platform for wheelchair

FOB Price

USD $10,565 - $10,565 / Set

1 Set(Min.Order)

Supply Ability 500 Set / Sets per Month
Port Qingdao/Guangzhou
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	JINCHUAN
Model Number	SJY0.3-18	Lift Mechanism	Scissor Lift
Lift Drive / Actuation	Hydraulic	Power	3kw
Rated Loading Capacity	300kg	Min. Lifting Height	1350MM
Max. Lifting Height	18m	Table Size	3200*1600
Overall Dimensions	370021002500	Weight	3900KG
Certification	CE&ISO9001:2000	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

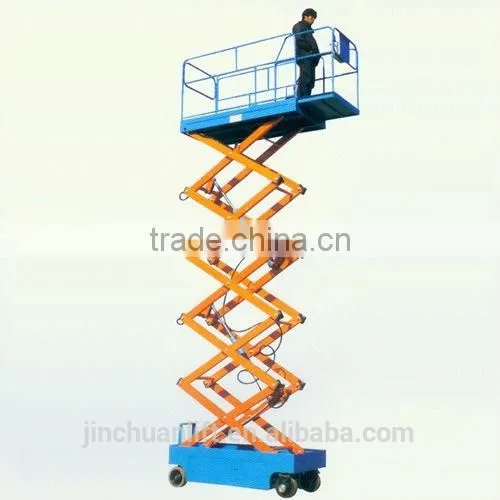

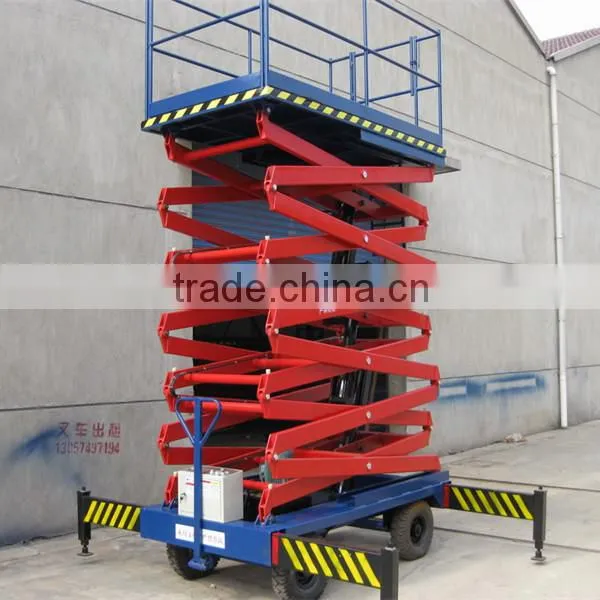

SJY four-wheel hydraulic mobile scissor lift table

Parameters:

Model	Work height	Capacity	Table size	Total dismension	Mating power
SJY0.3-4	4 M	300 KG	1650*750 mm	20509501970 mm	2.2 kw
SJY0.3-6	6 M	300 KG	1650*750 mm	20509502200 mm	2.2 kw
SJY0.3-8	8 M	300 KG	1650*800 mm	205010002460 mm	2.2 kw
SJY0.3-10	10 M	300 KG	2100*1200 mm	260014502380 mm	2.2 kw
SJY0.3-12	12 M	300 KG	2550*1500 mm	315020002850 mm	3.0 kw
SJY0.3-14	14 M	300 KG	2990*1600 mm	355021202850 mm	3.0 kw
SJY0.3-16	16 M	300 KG	3210*1600 mm	389021203030 mm	3.0 kw
SJY0.3-18	18 M	300 KG	3210*1600 mm	389021203250 mm	3.0 kw

Attention: The above is for reference only, we can supply according to the consumer's requirements.

Brief intrduction:

---The scissor lift is easy to control. It could be control on the ground or on the table. Remote control.

---Power of the scissor lift could be electronic or diesel or manual. And the lifting drive of the lift is hydraulic.

---This series is Artificial mobile, the power lifting platforms is two-phase or three-phase power.

---Tt can be controled via manual or electric, also it can provide hand pump and manual lowering device, when power cut it also can work.

Moving method:4 wheel mible or 2 wheel towable, tyres are optional, it could be pnumatic rubber tyres,solid rubber tires or polyurethane tires.

Power sources: local power available at the working sites(110V,220V,380V,415V) Working heights: ranging from 4m,6m,8m,10m,12m,14m,16m,18m,20m(Please refer to the Products Specification List)
