Braided Hydraulic Rubber Pipe / High Pressure Quality Choice

Braided Hydraulic Rubber Pipe / High Pressure Quality Choice photo-1

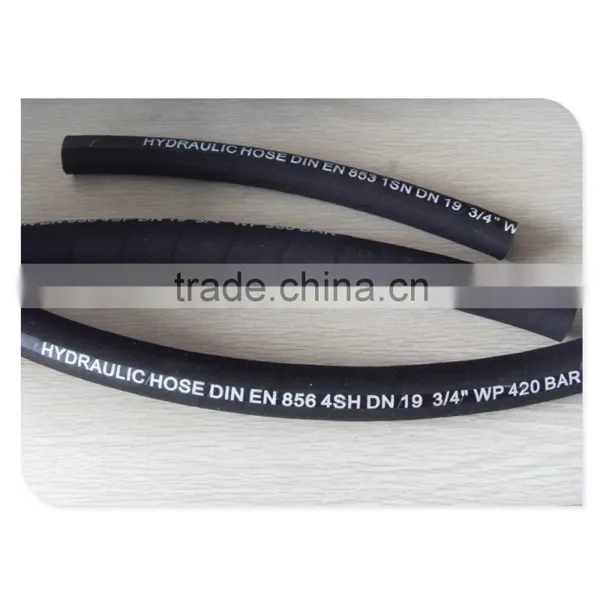

Braided Hydraulic Rubber Pipe / High Pressure Quality Choice photo-2

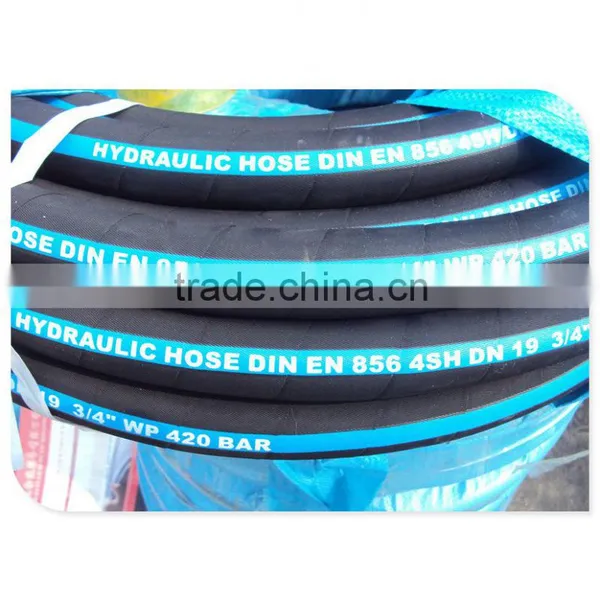

Braided Hydraulic Rubber Pipe / High Pressure Quality Choice photo-3
US$ 5.69 - 14.98 MOQ: 300 Meters
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
PASSION
Model Number:
EN 856 4SH
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name PASSION
Model Number EN 856 4SH

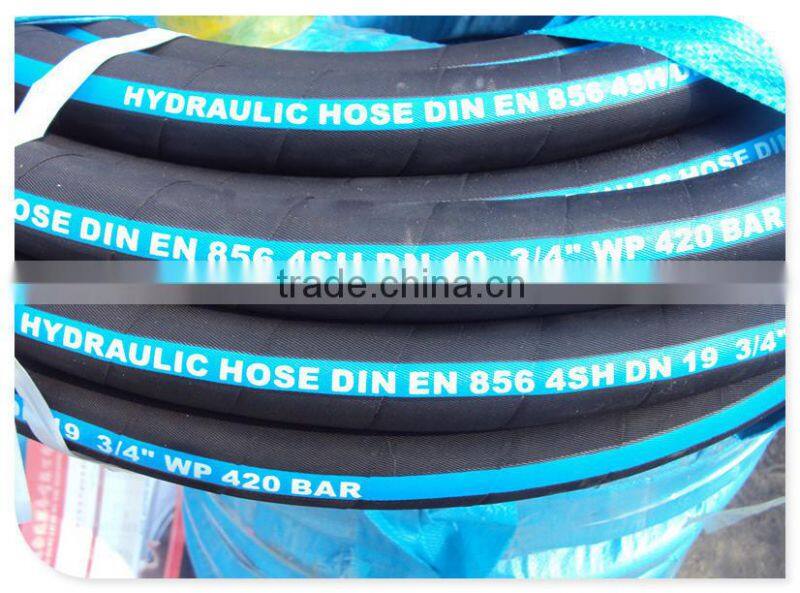

Braided Hydraulic Rubber Pipe / High Pressure









Product Description


Application:      Very high pressure, pulsating applications used for petroleum based hydraulic fluids

Inner Tube:        Neoprene

Reinforcement:  Four alternating layers of spiraled high-tensile steel wire

Cover Compound:  Neoprene

Temperature  Range: -40 degree~+100 degree



part

In

Hose Size ID DIN Dash Size

Hose OD

Max.Working pressure

Min.Bend Radius

Min..Burst pressure

Weight

(ibs/foot)

in

mm

psi

mpa

in

mm

psi

mpa

G4SH-12

3/4

19  Din Dash Size

1.268

32.2

6000

41.4

11

279

24000

165.5

1.0579

G4SH-16

1

25.4 Din Dash Size

1.524

38.7

5500

37.9

13.5

343

22000

151.7

1.3045

G4SH-20

11/4

31.8 Din Dash Size

1.791

45.5

4700

32.4

18.5

470

18800

129.6

1.6549

G4SH-24

11/2

38.1 Din Dash Size

2.106

53.5

4200

29

22.5

572

16800

115.8

2.1876

G4SH-32

2

50.8 Din Dash Size

2.681

68.1

3650

25.2

28

711

14600

100.7

3.1262






Braided Hydraulic Rubber Pipe / High Pressure



Braided Hydraulic Rubber Pipe / High Pressure

Braided Hydraulic Rubber Pipe / High Pressure





More Products

Braided Hydraulic Rubber Pipe / High Pressure



Braided Hydraulic Rubber Pipe / High Pressure





Application

Braided Hydraulic Rubber Pipe / High Pressure

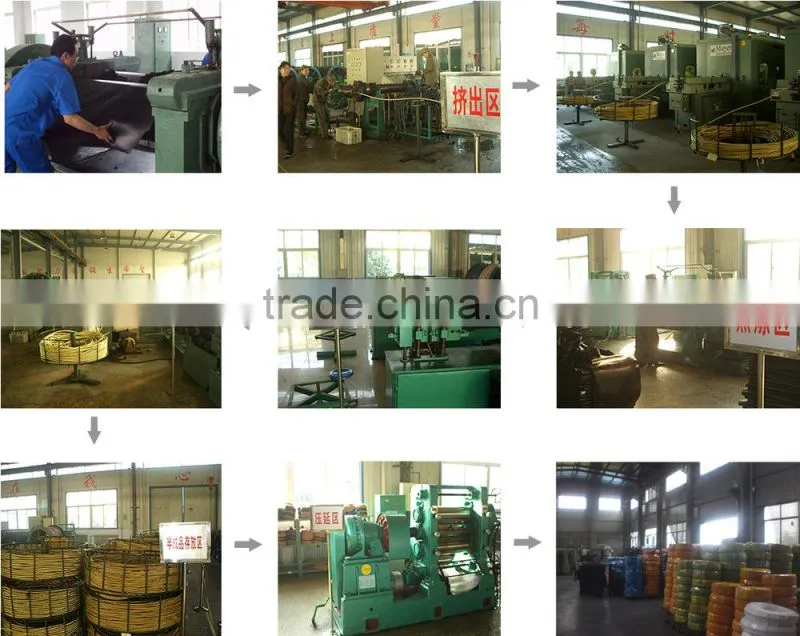

Production Flow
