1.35~18m, 0.3 ton air motorcycle lift table /rotating scissor lift table /mechanical scissor lift table
- 500 Set / Sets per Month
- Qingdao/Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
1.35~16m, 0.3 ton portable hydraulic scissor car lift /pneumatic scissor car lift /car lift for sale
-
1.35~14m, 0.3 ton portable lift platform /table top scissor lift platform /motorized rotating platform
-
1.35~9m, 0.3 ton hydraulic scissor lift table /woodworking scissor lift table /electric motorcycle lift table
-
1.35~6m, 0.3 ton mini scissor lift platform /small electric scissor lift /outdoor scissor lift platform
-
Adjustable Work Platform Portable Raised Storage Scissor Lift Platform
-
12m small mobile electric scissor lift table/hydraulic scissor lift table
Product Details
| Place of Origin | Shandong, China | Brand Name | Jinchuan | |
| Model Number | SJY0.3-18 |
Product Description

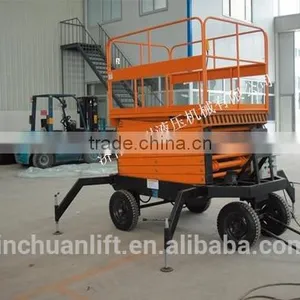

Hydraulic Scissor Lift
Scissor lift is the professional high-altitude operation equipment, widely used for the installations maintenance, highworking capacity, most spacious platforms to load several people to work on.
Operate & Power:
A. Standard operating methods:
pendent controller with push buttons
remote control with push buttons
cabin (space capsule seat) control with joystick
B. Electric powered
The usual power supply is external connection electricity variety of 220v, 240v, 380v, 400v
A. Smooth starting and stopping
Specification:
Model | Work height | Capacity | Table size | Total dismension | Mating power |
SJY0.3-4 | 4 m | 300 kg | 1600*750 mm² | 1700*900*1100 mm³ | 2.2 kw |
SJY0.3-6 | 6 m | 300 kg | 1600*750 mm ² | 1700*900*1290 mm ³ | 2.2 kw |
SJY0.3-8 | 8 m | 300 kg | 1700*900 mm ² | 1850*1200*1350 mm ³ | 2.2 kw |
SJY0.3-9 | 9 m | 300 kg | 1800*1200 mm ² | 2200*1500*1450 mm ³ | 2.2 kw |
SJY0.3-10 | 10 m | 300 kg | 2100*1200 mm ² | 2600*1500*1530 mm ³ | 2.2 kw |
SJY0.3-11 | 11 m | 300 kg | 2100*1200 mm ² | 2600*1500*1650 mm ³ | 2.2kw |
SJY0.3-12 | 12 m | 300 kg | 2530*1500 mm ² | 2950*1950*1740 mm ³ | 3.0 kw |
SJY0.3-14 | 14 m | 300 kg | 2750*1500 mm ² | 3250*1950*1970 mm ³ | 3.0 kw |
SJY0.3-16 | 16 m | 300 kg | 3000*1500 mm ² | 3600*2000*2300 mm ³ | 3.0 kw |
SJY0.3-18 | 18 M | 300 kg | 3200*1600 mm ² | 3700*2100*2500 mm ³ | 3.0 kw |
We supply products with customized design by professionals
The English operation instruction will be attached before shipment
The professionals will be sent aboard for installation and instruction at customer's request
The warranty period of the machinery is 12 months
