oilfield, mine, building, transportation and other industries.

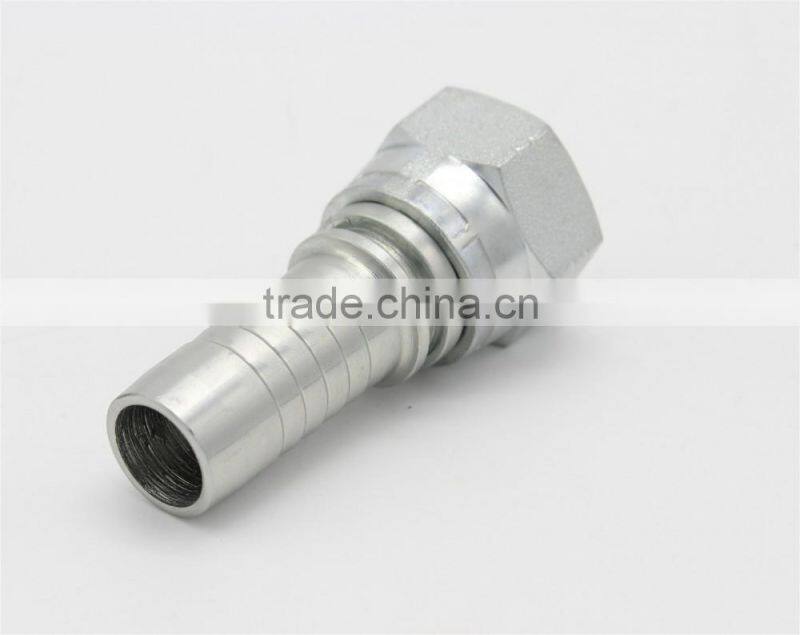

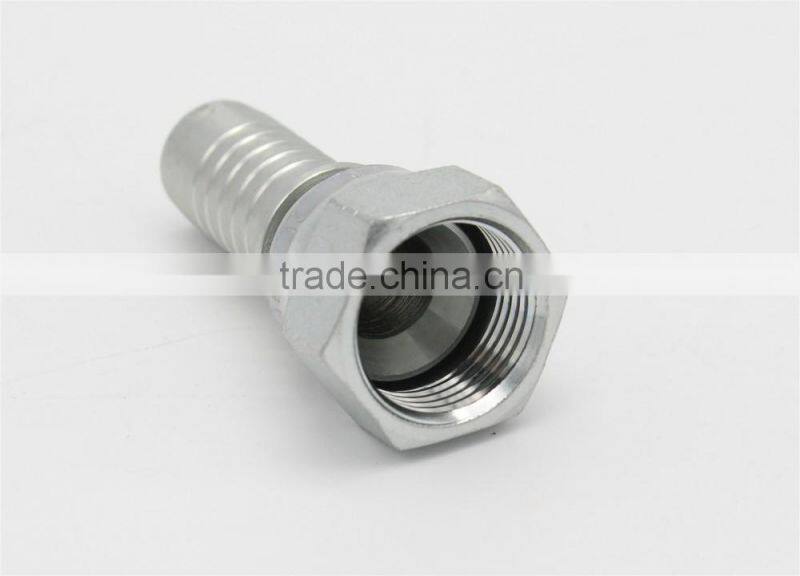

It is JIC female style, our part number is 26711, if the material is stainless steel, the part number is 26711SS.
Specification:
JIC FEMALE 74 DEGREE CONE SEAT
26711 26711-T
| Part No. | Thread E | Hose Bore | Dimensions | |||
| DN | DASH | A | C | S2 | ||
| 26711-04-03 | 7/16"x20 | 5 | 03 | 14.5 | 9 | 15 |
| 26711-04-04 | 7/16"x20 | 6 | 04 | 15 | 9 | 15 |
| 26711-05-04 | 1/2"x20 | 6 | 04 | 15.5 | 9.5 | 17 |
| 26711-05-05 | 1/2"x20 | 8 | 05 | 15.5 | 9.5 | 17 |
| 26711-05-06 | 1/2"x20 | 10 | 06 | 15.5 | 9.5 | 17 |
| 26711-06-04 | 9/16"x18 | 6 | 04 | 15.5 | 10.5 | 19 |
| 26711-06-05 | 9/16"x18 | 8 | 05 | 15.5 | 10.5 | 19 |
| 26711-06-06 | 9/16"x18 | 10 | 06 | 15.5 | 10.5 | 19 |
| 26711-06-08 | 9/16"x18 | 12 | 08 | 16 | 10.5 | 19 |
| 26711-08-06 | 3/4"x16 | 10 | 06 | 17.5 | 11 | 24 |
| 26711-08-08 | 3/4"x16 | 12 | 08 | 18 | 11 | 24 |
| 26711-08-10 | 3/4"x16 | 16 | 10 | 19.5 | 11 | 24 |
| 26711-10-08 | 7/8"x14 | 12 | 08 | 18.5 | 13 | 27 |
| 26711-10-10 | 7/8"x14 | 16 | 10 | 20 | 13 | 27 |
| 26711-10-12 | 7/8"x14 | 20 | 12 | 20 | 13 | 27 |
| 26711-12-08T | 1.1/16"x12 | 12 | 08 | 19 | 15 | 32 |
| 26711-12-10 | 1.1/16"x12 | 16 | 10 | 21.5 | 15 | 32 |
| 26711-12-12 | 1.1/16"x12 | 20 | 12 | 21.5 | 15 | 32 |
| 26711-12-16 | 1.1/16"x12 | 25 | 16 | 23 | 15 | 32 |
| 26711-14-12 | 1.3/16"x12 | 20 | 12 | 21.5 | 15 | 36 |
| 26711-16-12T | 1.5/16"x12 | 20 | 12 | 18.5 | 16 | 41 |
| 26711-16-16 | 1.5/16"x12 | 25 | 16 | 23 | 16 | 41 |
| 26711-16-20 | 1.5/16"x12 | 32 | 20 | 24 | 16 | 41 |
| 26711-20-16T | 1.5/8"x12 | 25 | 16 | 23 | 17 | 50 |
| 26711-20-20W | 1.5/8"x12 | 32 | 20 | 26 | 17 | 50 |
| 26711-24-20W | 1.7/8"x12 | 32 | 20 | 26.5 | 20 | 55 |
| 26711-24-24W | 1.7/8"x12 | 40 | 24 | 26.5 | 20 | 55 |
| 26711-32-20T | 2.1/2"x12 | 32 | 20 | 27 | 23.5 | 75 |
| 26711-32-32T | 2.1/2"x12 | 50 | 32 | 27 | 23.5 | 75 |
Material of ferrule: carton steel 20#
Material of fitting: carton steel 45#
All of our machines are CNC machines
Carton: 5 layers corrugated carton 24cm X 24cm X 16cm
Wooden Case: 110cm X 80cm X 75cm
Usually 42 corragetd cartons are packed in a wooden case.
Q: Is it stainless steel fitting?
A: It is made of carbon steel, if you need stainless steel one, we also can produce it for you.
Q: Is it standard hydraulic fitting?
A: Yes, all of our hydraulic fittings are standard parts.Each of hydraulic hose can find our hydraulic fittings to fit for.
Q: Can you print model and our brand on the ferrule and fitting?
A: We can print model and your brand on the ferrule, but there is no enough space to print them on the fitting, just logo is ok.
Q: Can you produce fitting according to sample or drawings?
A: Yes, we can produce fitting according to your samples or drawings.
Q: Can you galvanize zinc in golden color?
A: Yes, it can be made in golden color, anyway, we suggest galvanizing it in siliver color, it is enviroment-friendly.
