12m, 2015 New Car Lifts for Home Garages /small Boom Lifts /air Hydraulic Car Lift

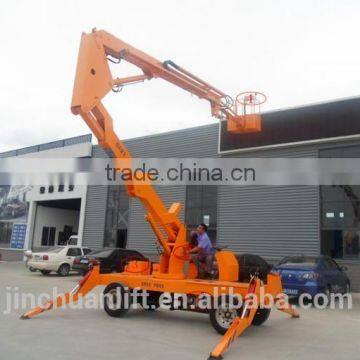

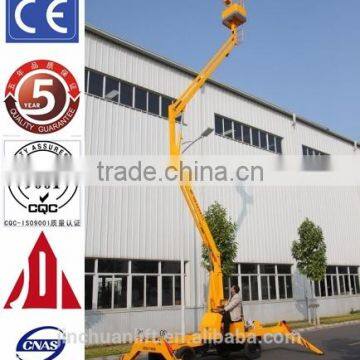

Hydraulic Boom Lift
1.Diesel driven, self-propelled, lift automatically, be operated both in the up platform and down.
2.With articulating boom structure, be rotary to 360°, having the special function which scissors type and telescope type have not --to work across the obstacles.
3.With 4 full-automatic hydraulic outriggers to support the balance of whole machine, equipped with the security system in case of the emergency.
4.Available for 2 persons working ,Widely used for cleaning the windows, installing and maintaining of the lights, decorating and repairing of the factory house, and some other operations of high-altitude.
Model No. | Platform Height (mm) | Platform Size (mm) | Maximum Working Height (mm) | Loading Capacity (kg) | Working Radius (mm) | Dimension (mm) | Weight (Kg) | Lifting Speed (m/s) | Wind-proof |
GKT-8 | 6000 | 750*600 | 10000 | 200 | 3000 | 3500*1700*2900 | 1400 | 0.05-0.09 | ≤5 |
GKT-10.5 | 8000 | 750*600 | 12000 | 200 | 3500 | 3700*1900*2900 | 1500 | 0.05-0.09 | ≤5 |
GKT-11.5 | 10000 | 750*600 | 13000 | 200 | 4000 | 3800*1900*2900 | 1600 | 0.05-0.09 | ≤5 |
GKT-12.5 | 12000 | 750*600 | 14000 | 200 | 5500 | 5100*1950*2950 | 1800 | 0.05-0.09 | ≤5 |
GKT-13.5 | 14000 | 750*600 | 15000 | 200 | 6000 | 5300*1950*3300 | 2000 | 0.05-0.09 | ≤5 |
1. As the substitute products of vertical and shear fork lift, the machine adopt diesel engine as power, and the battery using start, holding up its legs on its own, automatic lifting, autiomatic walking.
2. In high-altitude operations, It not only can cross a obstacle and also rotate 360 degree for a easier work.
3. Button control system: the upper and lower two-way operation (which greatly facilitate the maintenance staff and save the work time). At the same time, it is equipped of hydraulic lock protective deivce.
(That is: when in mechinery falure or desel engine without oil, It will not drop suddenly, bring security hidden danger)
We generally quote FOB price.About the shipping ,we promise to deliver goods within 7 days after receive payment.If the quantity of machine is small,we will do LCL and FCL if your order is one container.The shipping price will adjust according to the shipping.
We supply products with customized design by professionals
The English operation instruction will be attached before shipment
The professionals will be sent aboard for installation and instruction at customer's request
The warranty period of the machinery is 12 months
