Specifications
1. can be up to 64 Co lines 248 exts2. Caller ID Display
3. Manager-Secretary
4. Conference call
5. Conversation Time Alarm
Detailed Product Description

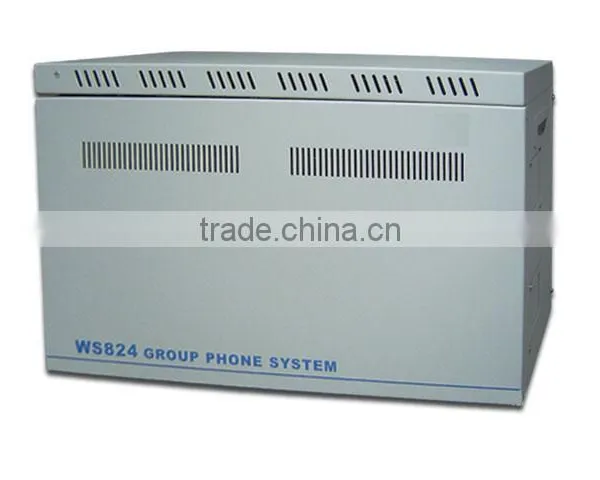

PBX System Info
Capacity:(5D)-1 can be up to 32 Lines 112 Exts.,(5D)-2 32 Lines 192 Exts.,(5D)-3 0 Lines 312 Exts to 64 Lines 248 Exts.
PBX System Function
| Model | WS824(5D)-1 | WS824(5D)-2 | WS824(5D)-3 |
| Photos | |||
| Basic Capacity | 8 Cos 16 Exts | 8 Cos 16 Exts | 8 Cos 16 Exts |
| Max Co Lines | 32 | 32 | 64 |
| Max Exts | 112/144 | 160/192 | 248/312 |
| Size(L*W*H)(mm) | 565*230*350 | 565*230*350 | 565*230*350 |
| Weight(kg) | 20 | 25 | 30 |
| Digital trunk 2M board (PRI) | optional 1 road | optional 1 road | optional 4 roads |
| Auto-attendant | 2 Road 6 Parts/ 6 Roads Expandable | 2 Road 6 Parts/ 6 Roads Expandable | 2 Road 6 Parts/ 6 Roads Expandable |
| Key Phone | 80 | 80 | 80 |
| Transfer to Cellphone | Y | Y | Y |
| Caller ID Display | Y | Y | Y |
| Incoming gain control | Y | Y | Y |
| Call Queuing | 8 Groups | 8 Groups | 8 Groups |
| Support Trunk Affiliate | Y | Y | Y |
| Voice Report Exts Number | Y | Y | Y |
| Billing software | Y | Y | Y |
| Managing software | Y | Y | Y |
| Back-up battery interface | Y | Y | Y |
| Exts flexible numbering | 1-9 leading | 1-9 leading | 1-9 leading |
| Auto Day/Night Service | Y | Y | Y |
| Mobile Account | 255 Groups | 255 Groups | 512 Groups |
| Auto IP economical route | Y | Y | Y |
| Paging | Y | Y | Y |
| Call to Exts when power off | N | N | N |
| Operator Record | 2 kinds | 2 kinds | 2 kinds |
| Multi-party Conference | 2 Groups 3 parties | 2 Groups 3 parties | 2 Groups 3 parties |
| 0 | Y | Y | Y |
| Manger-Secretary function | Y | Y | Y |
| Class of Services Restrict | Y | Y | Y |
| Conversation Time Limitation | Y | Y | Y |
| Setting Operator | Y | Y | Y |
| Reversed Polarity inspection | Y | Y | Y |
| Hotline Dialing | Y | Y | Y |
| Special Line for incoming and outgoing call | Y | Y | Y |
| External Music Port | Y | Y | Y |
| Call Cut-Off | Y | Y | Y |
| Extension charge Prepaid | Y | Y | Y |
| Extension Alarm | Y | Y | Y |
| Key Phone dispaly | English/Chinese | English/Chinese | English/Chinese |
| DISA Co line to Co line | Y | Y | Y |
| Auto Call Back if transfer with no-answer | Y | Y | Y |
| Call Hold Retrieve | Y | Y | Y |
| Do not Disturb | Y | Y | Y |
1. Multi-mode Call Transfer;
2. Built-in 6-duration Out-Going Message;
3. Built-in Caller ID function for intercom and outside Line number and number can be transferred display again and again.. An incoming call number can be displayed at 5 extensions at same time;
4. Economical Code auto-route
System can automatically switch to economical route code provided by different Telecom Carriers;
5. Select a CO Line directly without dialing digit 9;
6. Day/Night Service manually;
7. Flexible Extension Numbering;
8. 255 groups Walking Account Code;
9. Account available in different extensions with different class of service authority;
10. Manger/Secretary Call-group;
11. Conference Call;
12. Hot Dialing;
You can store one CO line number or extension number in the extension. When the user picks up the call without dialing in 5 seconds, system will dial the stored number automatically;
13. Auto. call-back on busy
When make outside or intercom call but busy, system can call back to this extension automatically when the desired CO Line or desired extension is free;
14. Multi Answer Mode
Including Auto-attendance and Operator manually , and it can connect external DISA recorder or voicemail too;
15. Call Forward
When the extension is busy or no-one answer , the incoming or intercom call to this extension can be forwarded to others. Including call forward directly, call forward when busy , call forward when no answer;
16. Setting Operator
Three operators can be set. Thus when operator 1 is busy ,call will ring at operator 2, operator 3 etc;
17. Call Pick-up
User can pick up his call at any another extension by inputting two digits;
18. Conversation Time Alarm
Power Specification:
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 80W(5A)
Cross-talk attenuation: >70db
Operating temperatures: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 95% without condensation
Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)
Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)
Connect with PC, connecting length:<30m
(1)Source of music:
Input impedance:600Ω
Input audio level:025Vpp-1Vpp
(2)Sound amplification output:
Output impedance:600Ω
Output audio level:025Vpp-0.4Vpp
(3)Battery backup supply:24VDC/7Ah
Signaling System
- No.1 signal [digital trunk ] (optional)
- No.7 signal [digital trunk ] (optional)
- PRI signal [digital trunk ] (optional)
Comapany Profile:
Shenzhen Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
