Specifications
Pbx call recording with 32 Co lines and 112 Exts for large Phone System Solutioncan be up to 64 lines 248 exts
Pbx call recording with 32 Co lines and 112 Exts for large Phone System Solution
PBX System Info
(5D)-3 0 Co lines and 312 Exts,or 64 co lines and 248 exts
PBX System Function

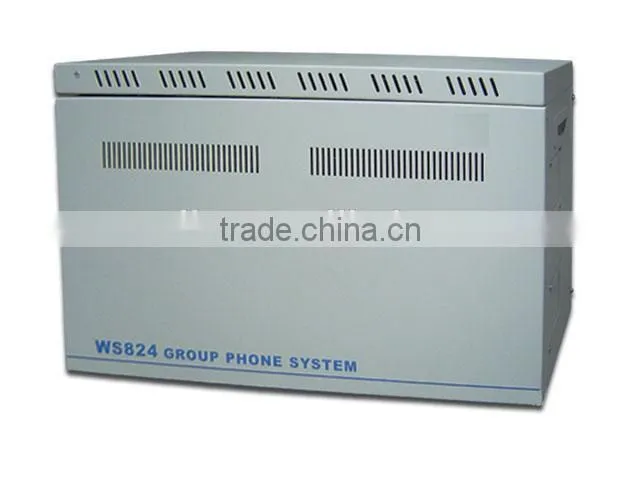

| Model | WS824(5D)-1 | WS824(5D)-2 | WS824(5D)-3 |
| Photos | |||
| Basic Capacity | 8 Cos 16 Exts | 8 Cos 16 Exts | 8 Cos 16 Exts |
| Max Co Lines | 32 | 32 | 64 |
| Max Exts | 112/144 | 160/192 | 248/312 |
| Size(L*W*H)(mm) | 565*230*350 | 565*230*350 | 565*230*350 |
| Weight(kg) | 20 | 25 | 30 |
| Digital trunk 2M board (PRI) | optional 1 road | optional 1 road | optional 4 roads |
| Auto-attendant | 2 Road 6 Parts/ 6 Roads Expandable | 2 Road 6 Parts/ 6 Roads Expandable | 2 Road 6 Parts/ 6 Roads Expandable |
| Key Phone | 80 | 80 | 80 |
| Transfer to Cellphone | Y | Y | Y |
| Caller ID Display | Y | Y | Y |
| Incoming gain control | Y | Y | Y |
| Call Queuing | 8 Groups | 8 Groups | 8 Groups |
| Support Trunk Affiliate | Y | Y | Y |
| Voice Report Exts Number | Y | Y | Y |
| Billing software | Y | Y | Y |
| Managing software | Y | Y | Y |
| Back-up battery interface | Y | Y | Y |
| Exts flexible numbering | 1-9 leading | 1-9 leading | 1-9 leading |
| Auto Day/Night Service | Y | Y | Y |
| Mobile Account | 255 Groups | 255 Groups | 512 Groups |
| Auto IP economical route | Y | Y | Y |
| Paging | Y | Y | Y |
| Call to Exts when power off | N | N | N |
| Operator Record | 2 kinds | 2 kinds | 2 kinds |
| Multi-party Conference | 2 Groups 3 parties | 2 Groups 3 parties | 2 Groups 3 parties |
| 0 | Y | Y | Y |
| Manger-Secretary function | Y | Y | Y |
| Class of Services Restrict | Y | Y | Y |
| Conversation Time Limitation | Y | Y | Y |
| Setting Operator | Y | Y | Y |
| Reversed Polarity inspection | Y | Y | Y |
| Hotline Dialing | Y | Y | Y |
| Special Line for incoming and outgoing call | Y | Y | Y |
| External Music Port | Y | Y | Y |
| Call Cut-Off | Y | Y | Y |
| Extension charge Prepaid | Y | Y | Y |
| Extension Alarm | Y | Y | Y |
| Key Phone dispaly | English/Chinese | English/Chinese | English/Chinese |
| DISA Co line to Co line | Y | Y | Y |
| Auto Call Back if transfer with no-answer | Y | Y | Y |
| Call Hold Retrieve | Y | Y | Y |
| Do not Disturb | Y | Y | Y |
Main Function:
1. Multi-mode Call Transfer;
2. Built-in 6-duration Out-Going Message;
3. Built-in Caller ID function for intercom and outside Line number and number can be transferred display again and again.. An incoming call number can be displayed at 5 extensions at same time;
4. Economical Code auto-route
System can automatically switch to economical route code provided by different Telecom Carriers;
5. Select a CO Line directly without dialing digit 9;
6. Day/Night Service manually;
7. Flexible Extension Numbering;
8. 255 groups Walking Account Code;
9. Account available in different extensions with different class of service authority;
10. Manger/Secretary Call-group;
11. Conference Call;
12. Hot Dialing;
You can store one CO line number or extension number in the extension. When the user picks up the call without dialing in 5 seconds, system will dial the stored number automatically;
13. Auto. call-back on busy
When make outside or intercom call but busy, system can call back to this extension automatically when the desired CO Line or desired extension is free;
14. Multi Answer Mode
Including Auto-attendance and Operator manually , and it can connect external DISA recorder or voicemail too;
15. Call Forward
When the extension is busy or no-one answer , the incoming or intercom call to this extension can be forwarded to others. Including call forward directly, call forward when busy , call forward when no answer;
16. Setting Operator
Three operators can be set. Thus when operator 1 is busy ,call will ring at operator 2, operator 3 etc;
17. Call Pick-up
User can pick up his call at any another extension by inputting two digits;
18. Conversation Time Alarm
In order to prevent from user talking too long on the phone, system can be set to calling-out limitation or calling-out and calling-in limitation. When conversation reach the restricted time, system will make an alarm and cut off the line automatically;
19. Interrupt and disconnect an outside call
For some emergency situation or no CO line available, the manager can interrupt an existing outside call conversation and disconnect it;
Specifications
POWER SUPPLY:
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 110W
Cross-talk attenuation: >70db
Transmission loss:<1db
ENVIRONMENTAL LIMITS
Operating temperatures: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 95% without condensation
CABLE REQUIREMENTS
Four-wire Key phone: < 100m(impedance<22.5Ω)
Two-wire Key phone: (2 pairs twisted wire 0.5@, impedance<200Ω)
Single line phone: < 1,000m(2 pairs twisted wire 0.4@, impedance<225Ω)
Connect with PC,connecting length:<30m
SOUND AMPLIFACITON OUTPUT
Output impedance:600Ω
Output audio level:250mV.
Signaling System
- No.1 signal [digital trunk ] (optional)
- No.7 signal [digital trunk ] (optional)
- PRI signal [digital trunk ] (optional)

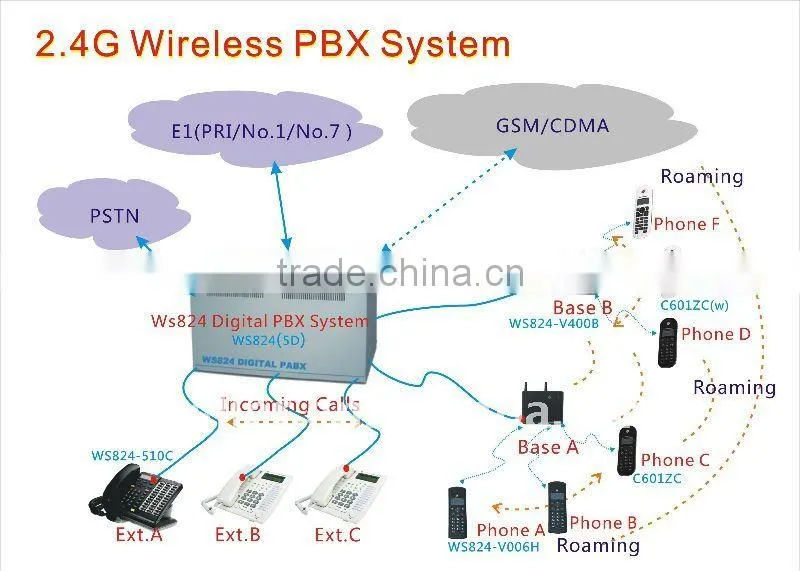

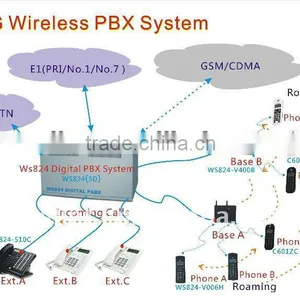

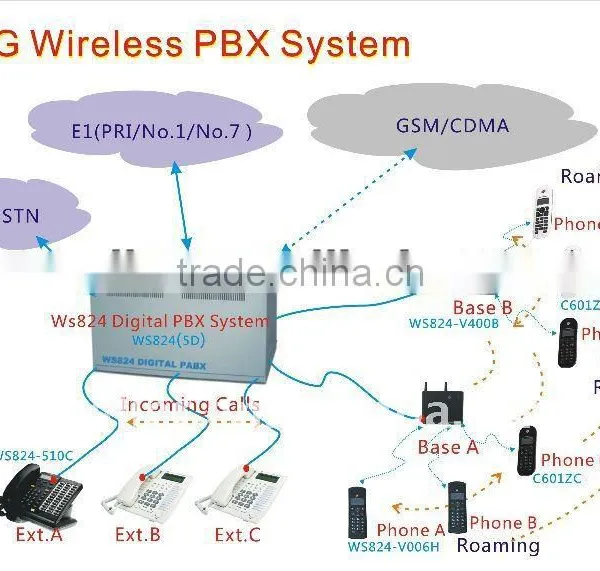

Product applications:
In the modern office environment, more and more staff will regularly leave their desk, walk around in the office environment, such as have a meeting in the conference room ,meet guests at the reception, to the workshop to find out about the situation, to the warehouse to take goods, or even between the toilet or drinking water. These regular walking staff, most in need with a wireless extension,to answer incoming calls or inside calls. When leaving the desktop, using the wireless extension to answer and play. Larger office environment (such as multi-floor office building), large plant, large shopping malls, hotels and retail stores, which are typical of the wireless station roaming applications.
Comapany introduction :
Shenzhen Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
