Specifications
1. 4~16 Co Lines 8~128 Exts2. 3S management software
3. Caller ID Display
4. Relay Chain Function
5. Back-up Battery

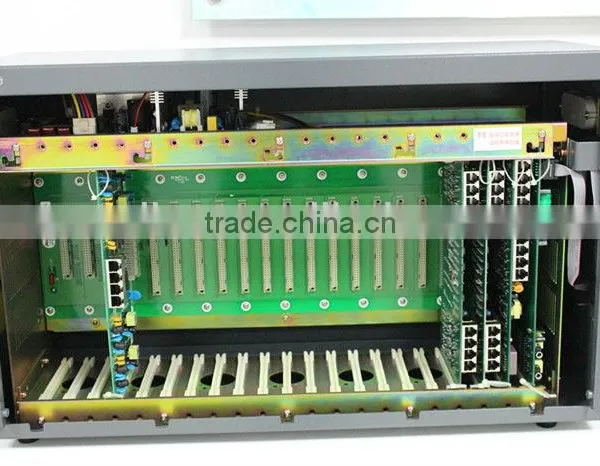

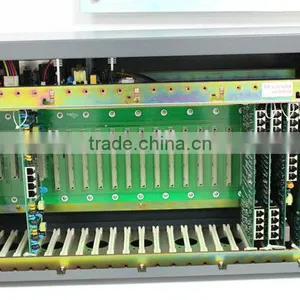

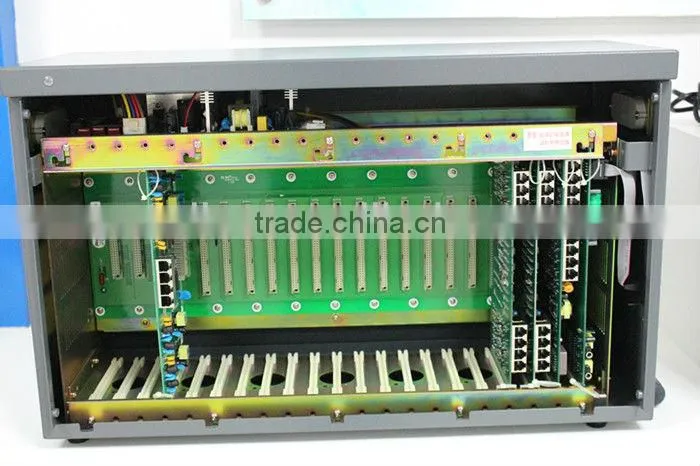

Detail Picture:
Main Function:
| Model | WS824(5)A |
| Basic Capacity | 4 Cos 16 Exts |
| Max Co Lines | 16 |
| Max Exts | 128 |
| Size(L*W*H)(mm) | 565*230*340 |
| Weight(kg) | 30 |
| Auto-attendant | 2 Road 4/6 Parts |
| Key Phone | 12 |
| Caller ID Display | Y |
| Call Queuing | 1 Group |
| Support Trunk Affiliate | Y |
| Voice Report Number | Y |
| Billing software | Y |
| Managing software | Y |
| Back-up battery interface | Y |
| Exts flexible numbering | 1-8 leading |
| Auto Day/Night Service | Y |
| Mobile Account | 255 Groups |
| Auto IP economical route | Y |
| Paging | Y |
| Call to Exts when power off | N |
| Multi-party Conference | 2 Groups 8 parties |
| Manger-Secretary function | Y |
| Class of Services Restrict | Y |
| Conversation Time Limitation | Y |
| Setting Operator | Y |
| Reversed Polarity inspection | Y |
| Hotline Dialing | Y |
| Special Line for incoming and outgoing call | Y |
| External Music Port | Y |
| Call Cut-Off | Y |
| Extension charge Prepaid | Y |
| Extension Alarm | Y |
| Key Phone dispaly | English/Chinese |
| DISA Co line to Co line | Y |
| Auto Call Back if transfer with no-answer | Y |
| Call Hold Retrieve | Y |
| Do not Disturb | Y |
1. Built-in 3S management software, which set the user control, program setting and modifying, billing system functions as one of the three in one software;
2. Can be connected with as much as 12 key phones, both key phone and ordinary telephone can set program. It is conveninent to control the Co lines and Exts by key phone;
3. Built in Caller ID display function both in Co Lines and Exts;
4. Relay chain function, external number is too much to record, this function can make all the exterior number into a number, you only need to publish a phone number. When the exterior line is not all occupied, outside calls can get through to enter, so, you do not have to worry about the outwire infiltrate often be busy . In order for this function, you should go to the local bureau to apply for unconditional transfer function for the number publishing;
5. Several Class of Services, which can make some limitation on any extentions for some calling in or out, it all depends on you;
6. Make China Telecom, China Unicom, China Netcom, China Jitong, input the IP card account, password one-time to the switching system. When dialing long distance call, system will go through IP Economical Routing automatically. It is very easy to operate, as well to save money at most;
7. 255 group passwords, It is convenient to distribute the passwords to the management so they can call out with their passwords at any extension;
8. Built in Double Road four section computer operator, convenient for the user at different working mode;
9. PA paging and transfer function, background music can be set;
10. Backup battery interface: system battery backup interface to ensure the normal working of the whole system when power off.
11. Can be connected with billing system, and prepaid for the call charge.
12. including all the basic functions other exchanges have.
Power Specification:
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 80W(5A)
Cross-talk attenuation: >70db
Operating temperatures: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 95% without condensation
Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)
Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)
Connect with PC, connecting length:<30m
(1)Source of music:
Input impedance:600Ω
Input audio level:025Vpp-1Vpp
(2)Sound amplification output:
Output impedance:600Ω
Output audio level:025Vpp-0.4Vpp
(3)Battery backup supply:24VDC/7Ah
Comapany Profile:
Shenzhen Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
