Help CenterCE Series 416 PABX Machine
Related Products
-
HB WS824 Phone System With Billing SoftwareUS$ 390 - 400MOQ: 30 Sets -
HB Pabx Telephone System Witth 128 Exts LinesUS$ 300 - 350MOQ: 30 Sets
-
Ipbx Gateway GsmUS$ 300 - 350MOQ: 30 Sets
-
HB Guowei 208 Mini PABX/SOHO PABX/telephone System/PABXUS$ 31 - 32MOQ: 100 Pieces
-
CESLLER PABX China ManufacturerUS$ 280 - 300MOQ: 30 Sets
Specifications
1. Caller ID2. Call Queuing
3. Automatic Economic Routing Function
4. 4 Co Lines 16 Exts
5. Mini Pbx System
Product Detail

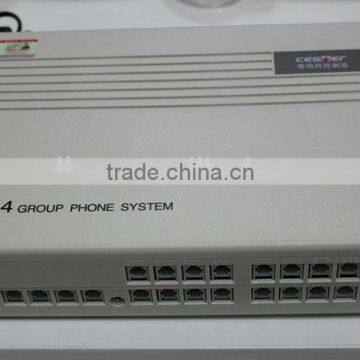

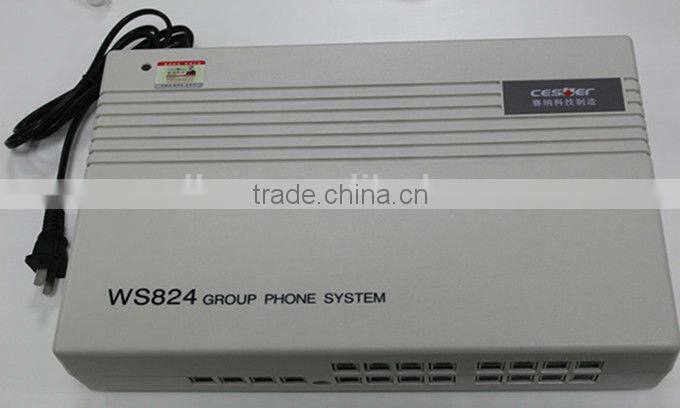

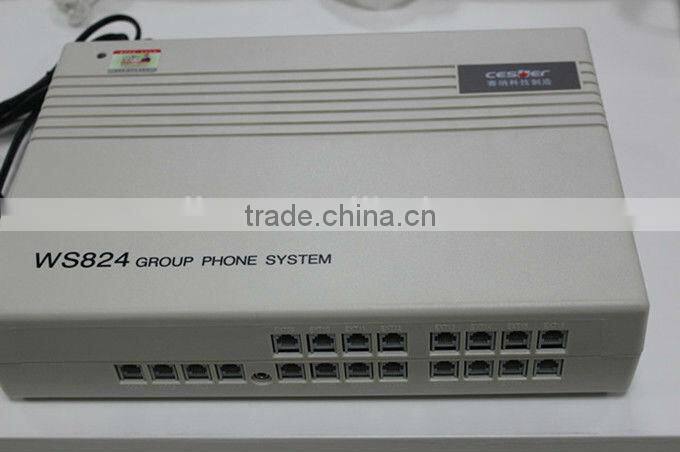

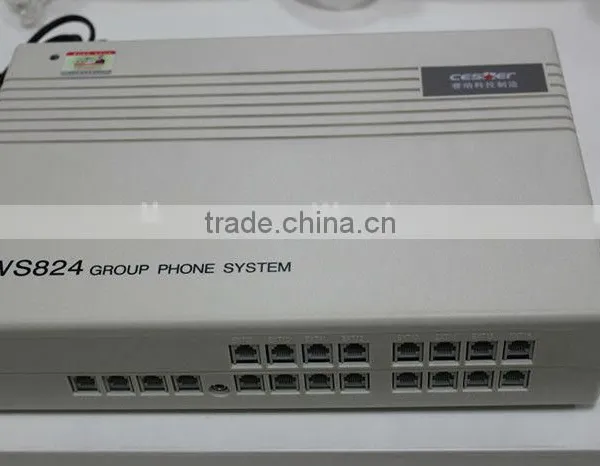

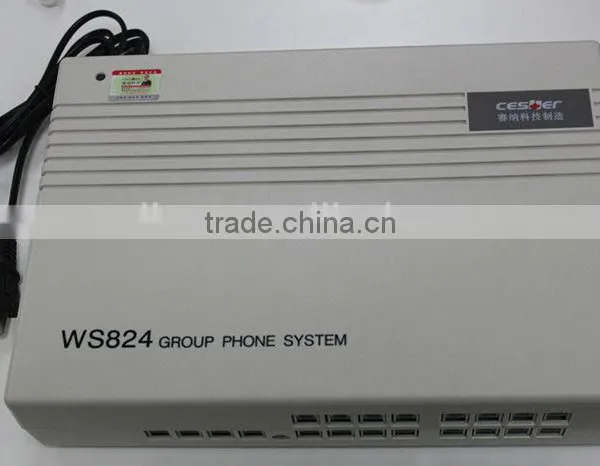

WS824-Q416 PABX machine

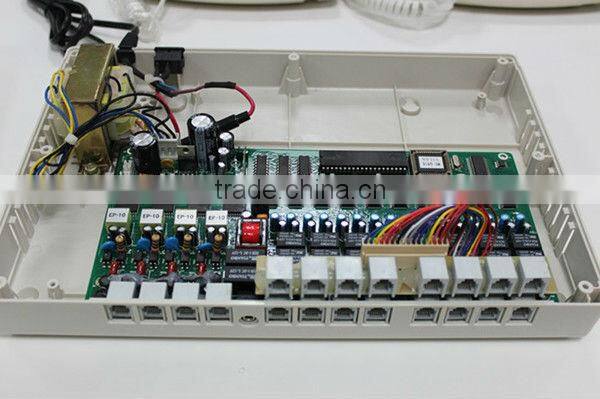

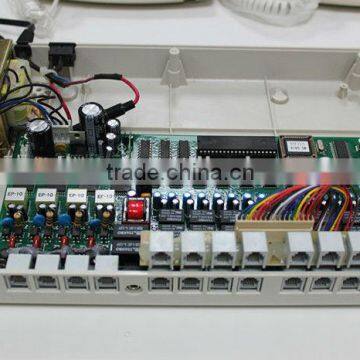

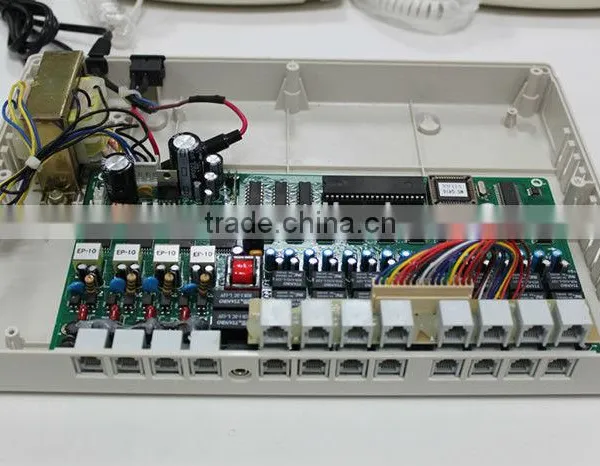

WS824-Q416 mother board
Main Feature:
1. Bulit-in Caller ID for Outside Line and Extension Line and can be tranfered again and again.
2. Call Queuing Can assign dense calls to difference extension averagely to be picked up. Thus, can save time of waiting. It is very useful for 800 hotline, and sales department. It can make sales get calls averagely.
3.Can be connected with one Key Phone.
4. Flexible Numberring Leading number is 1,2,8. The length is from 2 digits to 4 digits.
5. 6 Class of Services.
6. External Music Resource Port.
7. IP Econnomical Routing Can set two groups (No account code and no password) ,one is for domestic, the other is for international. When dialing long distance call, system will go through IP Econnomical Routing automatically. Operation is very simple and can save users money ad most.
8. Conference Call Can support 8 Parties.
9. Outgoing and Incoming Call Inquiry at Key Phone.
10.Self Recorded Outgoing Message.
POWER SUPPLY:
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 30W
Cross-talk attenuation: >70db
Internal feeding voltage: +28VDC, 30mA
Internal ringing voltage:75VAC/50Hz
External line port voltage: <60VDC
External line port ringing voltage: 35VAC/25Hz or >35VAC/50Hz
ENVIRONMENTAL LIMITS
Operating temperatures: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 95% without condensation
CABLE REQUIREMENTS
Feature phone: Maximum 100m(2 pairs twisted wire 0.5@)
Single line phone: Maximum 1,000m(1 pair twisted wire 0.5@)
Outgoing call: DTMF
Cross lose: > 70dBII
Comapany introduction :
Shenzhen Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
