• 10pcs for one carton
• Product box size(cm):20x15x6
• Carton size(cm): 47x36.5x20
• L/C T/T Western Union MoneyGram
• Planform (look form the bottom)
Special design with our logo CESLLER and customers' logo are optional on the basic of a certain of quantiry.

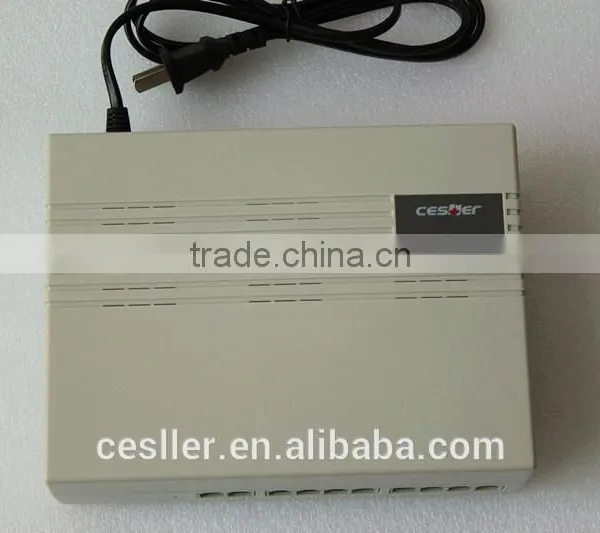

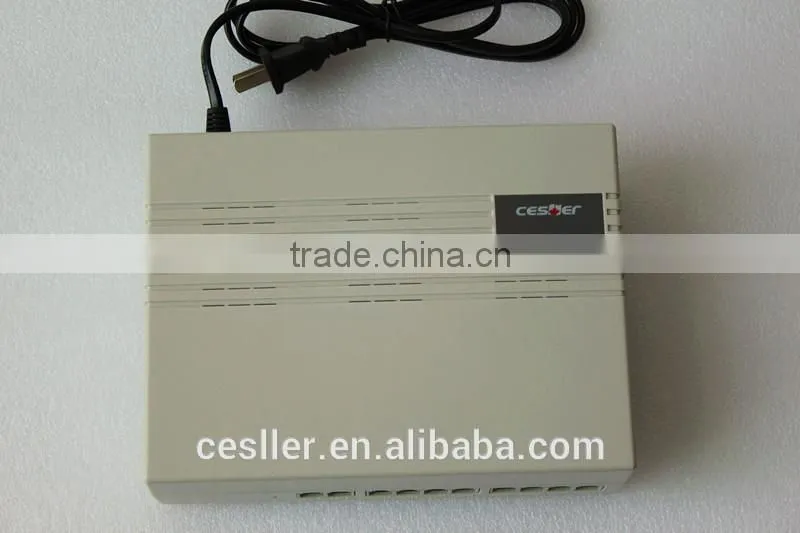

• Front view
Clearly show our customers 2 lines and 8 extensions , the most left is the indicator light.

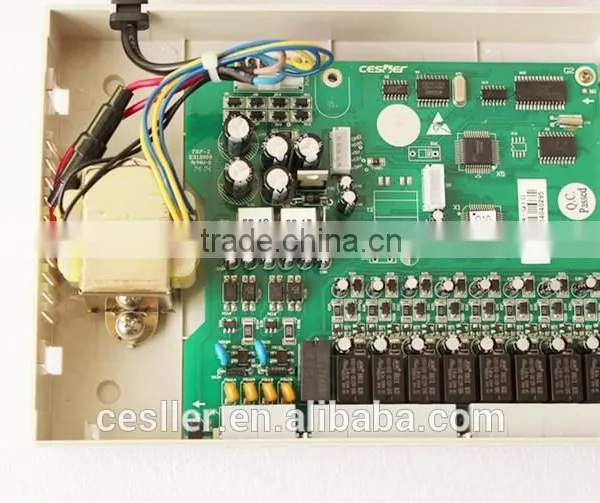

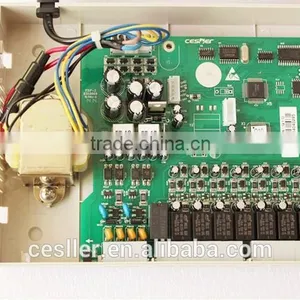

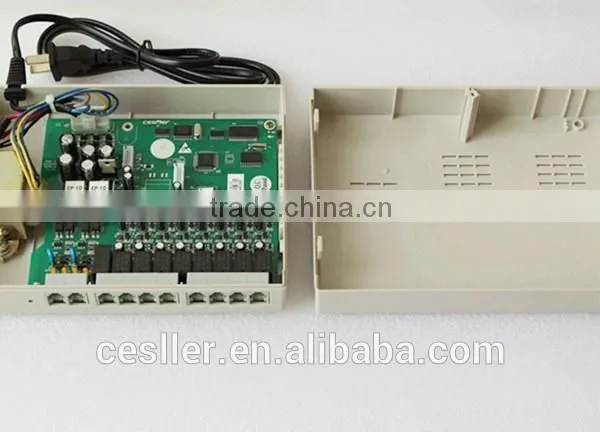

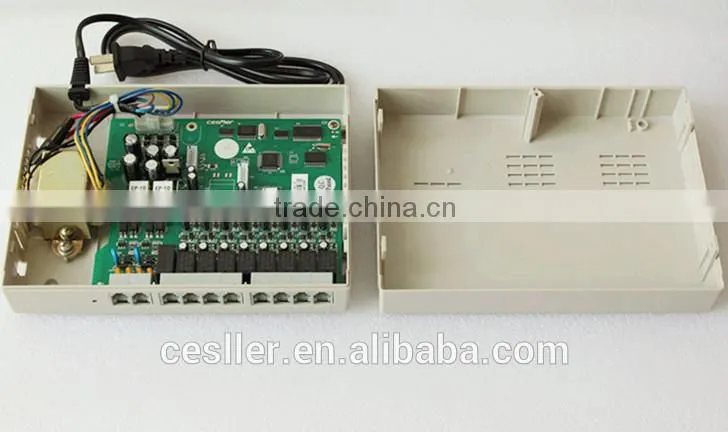

• Inside picture
Specific internal picture remove cusromers' misgiving, the cover is separate from the mainboard.
• Enable to record three sections of computer telephonist reminder tone , each for 30 seconds
• Caller ID Display for inside and outside line
• Enable to set three groups of auto-economical routing without account number and passward (international call ,demostic call and local call),system automaticly follow with economical routing to save money.
• Extensions call in and call out the key line
• Incoming telephone calls can not lost when transfer calls for many times
• Inquire extension number by caller ID Display
• Ringing replaces answering
• Enable to freely assign extension number with 1/2/8 as the leading number (2, 3 or 4 digits)
• Outside line ring by turns( allows assign extension ring by turns when has outside call),save the waiting time
• One ports for direct connection when power off
• Enable to limit time to calls
• Hotline dialing
• Unable to connect with one of ourselves telephone
• Carry with 32 groups of passward
• Do Not Disturb(DND)
Power supply voltage: 110VAC or 220 VAC,50/60 Hz
Maximum power consumption: 30W
Cross-talk attenuation: >70db
Internal feeding voltage: +28VDC, 30mA
Internal ringing voltage:75VAC/50Hz
External line port voltage: <60VDC
External line port ringing voltage: 35VAC/25Hz or >35VAC/50Hz
Operating temperatures: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 95% without condensation
