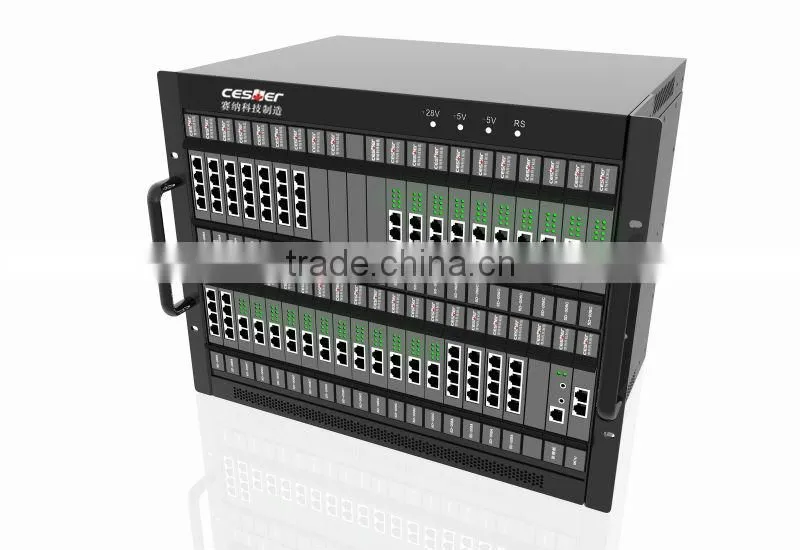

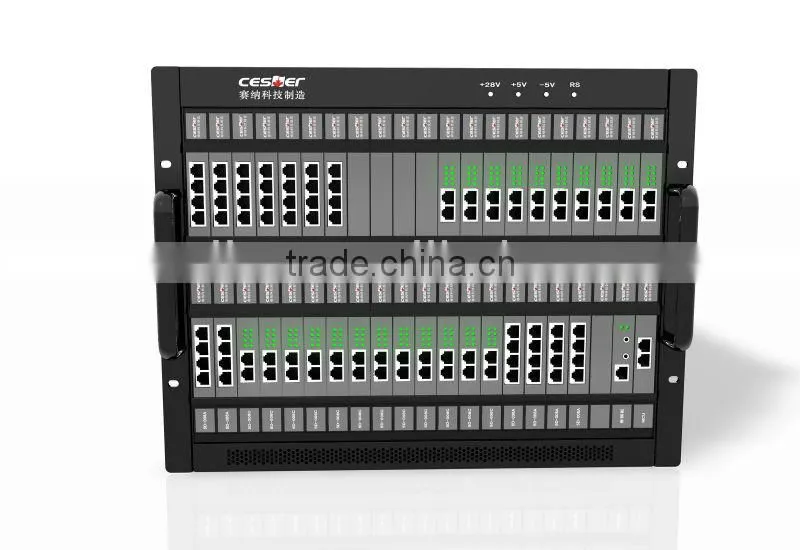

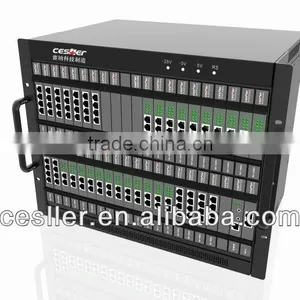

Help CenterHotel Pbx System With 312 Exts
Related Products
-
NSN9000L Wireless Telephone Pbx System Made in ChinaUS$ 1 - 1MOQ: 3 Pieces -
PBX TELEPHONE MAIN UNIT PABX EXCHANGE SYSTEMUS$ 1 - 500MOQ: 3 Pieces
-
NSN9000S Telephone PABX System With Call Centers Record CallsUS$ 1 - 500MOQ: 3 Pieces
-
Cesller Seires Digital PABX Phone System for HotelUS$ 440 - 450MOQ: 3 Pieces
-
Telephone ip Pbx With Large Capactiy PabxUS$ 1 - 1,000MOQ: 3 Pieces
Specifications
1.Telephone recording system.2.IVR voice navigation.
3.ws824 Wireless PABX System
4.Economic IP routing
5. Call forward
Hotel PBX System
GSM PBX System
IP PBX System
Main Function
1. Built-in Caller ID function for intercom and outside Line.
2. Busy Tone of Co Line Detection.
3. Support message light function.
4. Morning call function.
5. Co.Line Gain Adjustment(Co Line Gain can be reached to 3dB.)
6. Reverse polarity of Co line Detection.
7. Trunk number intergrated. ( need the support of telecommunication operator)
8. Operator can use the phone recording or recording interface to an external music
9. External music source inferface.
10.Voice report extension number or extension physical number.
11.Abbreviated code 100 group.
12.Multi-party conference call(support 2 group 3 party conference at most.
13.Paging function:Paging tone,there are two options.
14.Key phone group call.
15. Multi Answer Mode.
16. Interrupt ,disconnect a call and monitoring function.
17. 255 groups Walking Account Code.
18. .Day/Night Service manually.
19. Conversation Time Alarm.
20. Co line special call restriction.
21.Day/Night Exts to Co lines limition
22.Exts to Exts limition call
23 6 classes of serive.
24. Extension number can be numbered flexibly(from 2 digits to 4 digits), and the leading number can be “1”,“2”,“8”.
25. Multi-station tion.
26.No one answer/hold recall
27.Hot-call dialing
28.Incoming call limition.
29.Pick-up call
30. Manager-Secretary function.
31.Extension or mobile account.
32.Call forward
33.Inside/outside busy booking function.
34.UPS function
Specifications
1.POWER SUPPLY:
Power supply voltage: 110VAC/220 VAC ± 10%,50Hz~60 Hz
Exts port supply voltage:+30vdc/25mA
Voltage ringing:75VAC/25Hz
System power voltage:+24VDC
External line port voltage:<60VDC
External line port ringing voltage: 35VAC/25Hz/>35VAC/50Hz
System power consumption:150W
2.Exchange ways: times exchange
3 Environmental limits
Operating temperatures: 0°C to 45°C (32°F to 113°F)
Operating humidity: 10% to 95% without condensation
4.Cable requirments
Four-wire Key phone: < 100m(impedance<22.5Ω)
Two-wire Key phone: (2 pairs twisted wire 0.5@, impedance<200Ω)
Single line phone: < 1,000m(2 pairs twisted wire 0.4@, impedance<225Ω)
Connect with PC,connecting length:<30m
5.Sound amplification output:
Output impedance:600Ω
Output audio level:250mV. max 1V RMS
Signaling System
- No.1 signal [digital trunk ] (optional)
- No.7 signal [digital trunk ] (optional)
- PRI signal [digital trunk ] (optional)
Comapany introduction :
Shenzhen Cesller Technology Co.,Ltd,our headquarter lies in Canada. It is a hi-tech. Company, specializing in manufacturing, developing, selling of group-phone system and communication equipments. The managing idea is to provide continually communication products which joint global communication and synchronize to world communication.
