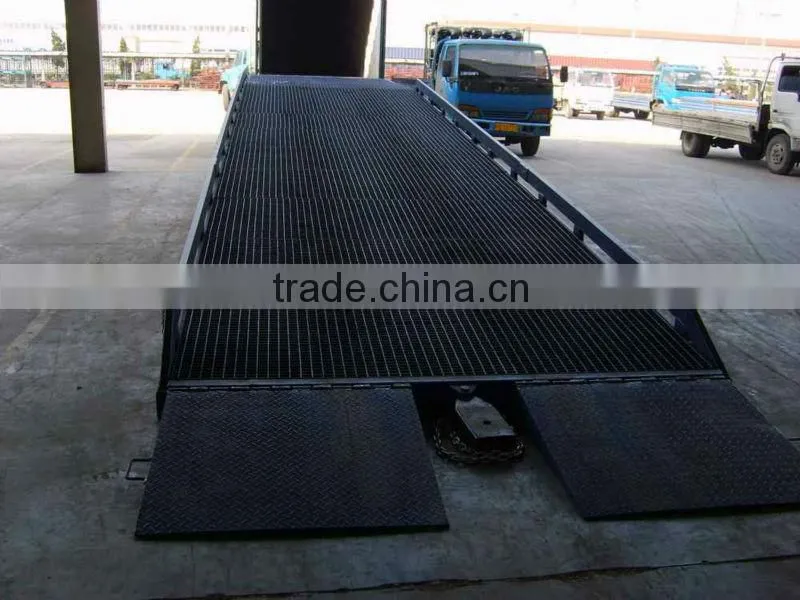

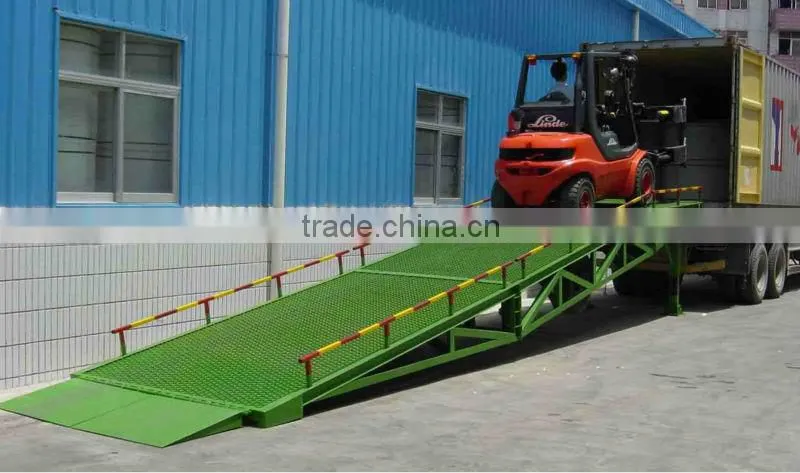

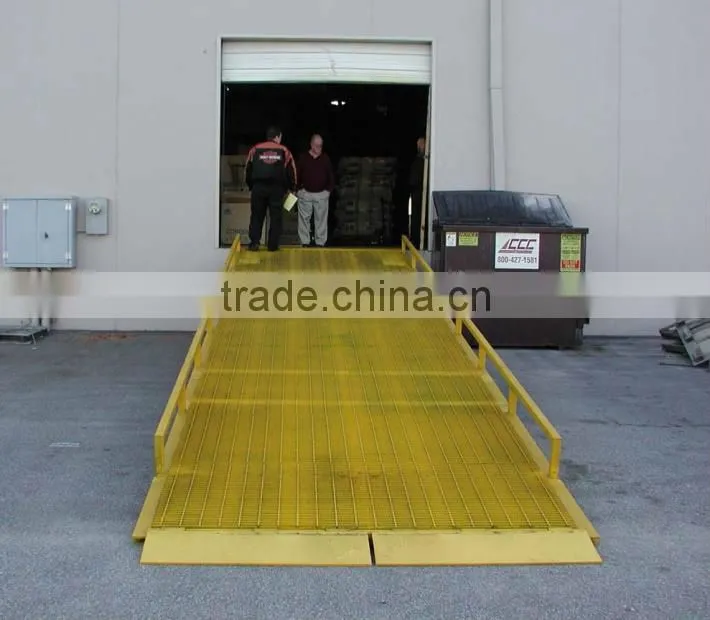

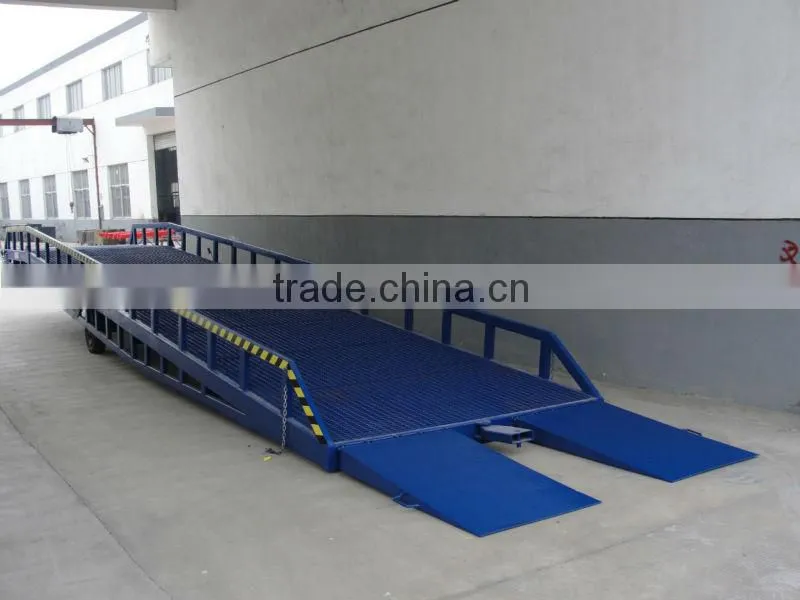

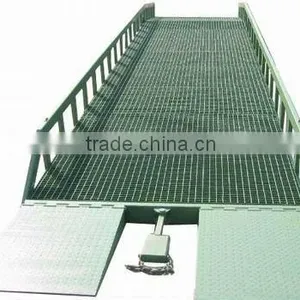

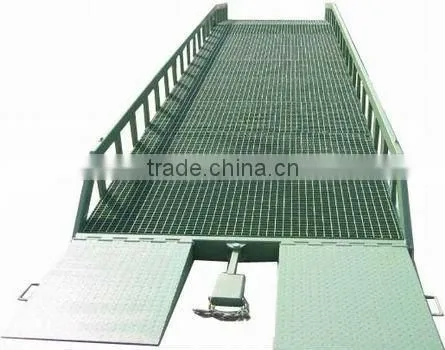

4000-12000kg mobile dock ramp
Product Introduction:
Mobile hydraulic dock ramp is cargo handling auxiliary equipment,is used together with the forklift truck.According to car compartments high-low adjustment height, forklift truck can directly through this equipment enter into car compartments to unload the goods.Only need one person operate, can realize the rapid loading and unloading goods.It makes the enterprise to reduce a large number of labor force, improve work efficiency, and gain greater economic benefit.
Platform uses special diamond mesh plate,has reliable strength,can ensure the long-term use without deformation.(Its diamond mesh,fully guarantee the excellent anti-skid performance structure,make forklift have better gradeability and manipulability. Even in the rain and snow weather, still can ensure normal use.)
Can adjust length of rope chain, and easily hook truck, make dock ramp and truck always closely jointed.
With using of the hand hydraulic pump as dynamic,not need external power supply,can easily realize the height adjustment of the dock ramp.
The configuration of the brake pad can effectively prevent dock ramp moving when truck loading and unloading goods
| Name | Model |
Lifting height(m) |
LIfting weight(kg) |
PLatform size(m) |
Overall dimension(m) |
Power(kw) |
Machine weight(kg) |
FOB USD in Qingdao($) |
| DCQY-4 | 0.9-1.7 | 4000 | 10.5*1.9 | 10.5*2 | Manual Operation | 2200 | 5645 | |
| mobile | DCQY-6 | 0.9-1.7 | 6000 | 10.5*1.9 | 10.5*2 | Manual Operation | 2300 | 5807 |
| dock | DCQY-8 | 0.9-1.7 | 8000 | 10.5*1.9 | 10.5*2 | Manual Operation | 2400 | 5968 |
| ramp | DCQY-10 | 0.9-1.7 | 10000 | 10.5*1.9 | 10.5*2 | Manual Operation | 2600 | 6291 |
| DCQY-12 | 1.9-1.6 | 12000 | 10.5*1.9 | 10.5*2 | Manual Operation | 2800 | 6613 |
Note:The above price is only for reference.
