Help CenterMovbale Type Hydraulic Dock Ramp/container Mobile Loading Dock Ramp
Related Products
-
Movbale Hydraulic Electric Dock Leveler Suitable for Container and Warehouse Use to Load and Unload GoodsNegotiableMOQ: 1 Piece -
Movbale Hydraulic Manual Forklift Dock LevelerNegotiableMOQ: 1 Piece
-
Jinchuan Brand DCQY Hydraulic Moving Boarding RampsNegotiableMOQ: 1 Set
-
Warehouse Mobile Container Loading and Unloading Dock RampNegotiableMOQ: 1 Set
-
Jinchuan DCQY Hydraulic Mobile Dock RampsUS$ 2,000 - 20,000MOQ: 1 Set

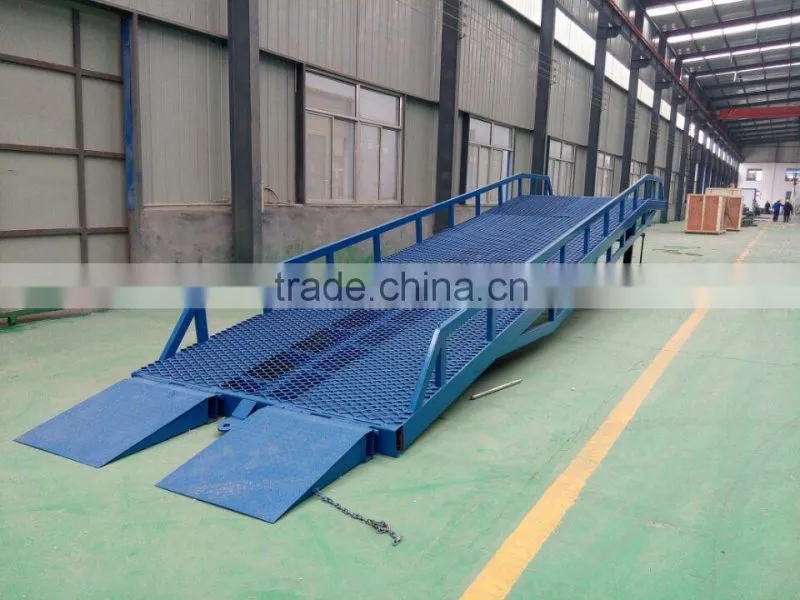

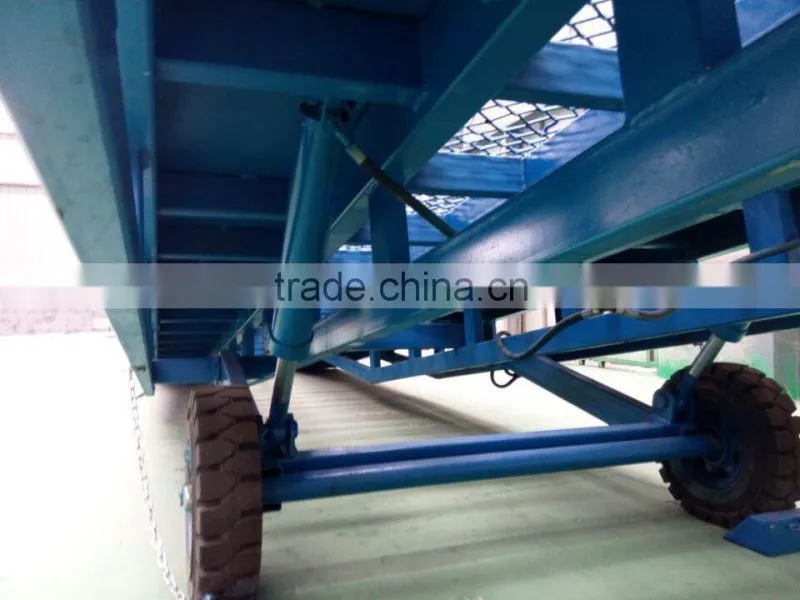

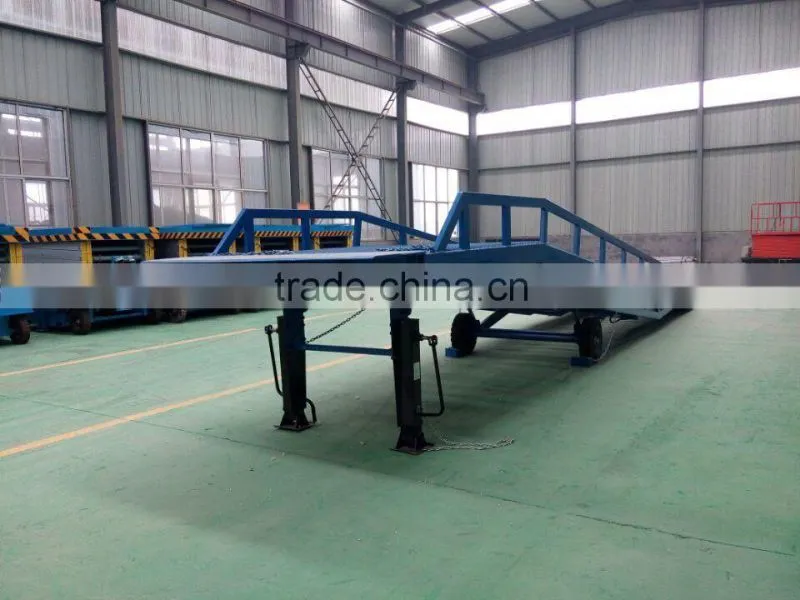

Mobile Hydraulic Dock Ramp is special auxiliary equipment and very suitable for loading and unloading of goods rapidly . Its height can be adjusted and this feature allows forklifts and other moving vehicles to enter into the truck directly and handle the goods. The dock ramp is movable and can be controlled by manual hydraulic system, so only one person could operate it conveniently. It enables you to reduce the amount of labor and raise working efficiency.
Specifications of 6t load capacity dock ramp
1. Overall size: 11000mm*1900mm
2. Body: 7500mm*2500mm
3. Forklift suspensive board: 2500mm*2000mm
4. Leading board: 500mm* 600mm
5. Junction: 400mm*2000mm
6. Capacity: 6 000kg
7. Moving model: pulled
8. Adjusting: manual
9. Elevations: ≤13o
10. Self weight: 2700kg
Our common products list
| DCQG series | Load(T) | Working height(m) | Working grade | Dimensions(m) | Support legs | Driving force | |
| DCQY-4 | 4 | 0.9 - 1.7 | ≤13° | 10.5*2*0.9 | Yes | Manual | Motor Drive |
| DCQY-6 | 6 | 0.9 - 1.7 | ≤13° | 10.5*2*0.9 | Yes | ||
| DCQY-8 | 8 | 0.9 - 1.7 | ≤13° | 10.5*2*0.9 | Yes | ||
| DCQY-10 | 10 | 0.9 - 1.7 | ≤13° | 10.5*2*0.9 | Yes | ||
| DCQY-12 | 12 | 0.9 - 1.7 | ≤13° | 10.5*2*0.9 | Yes | ||
| DCQY-14 | 14 | 0.9 - 1.7 | ≤13° | 10.5*2*0.9 | Yes | ||

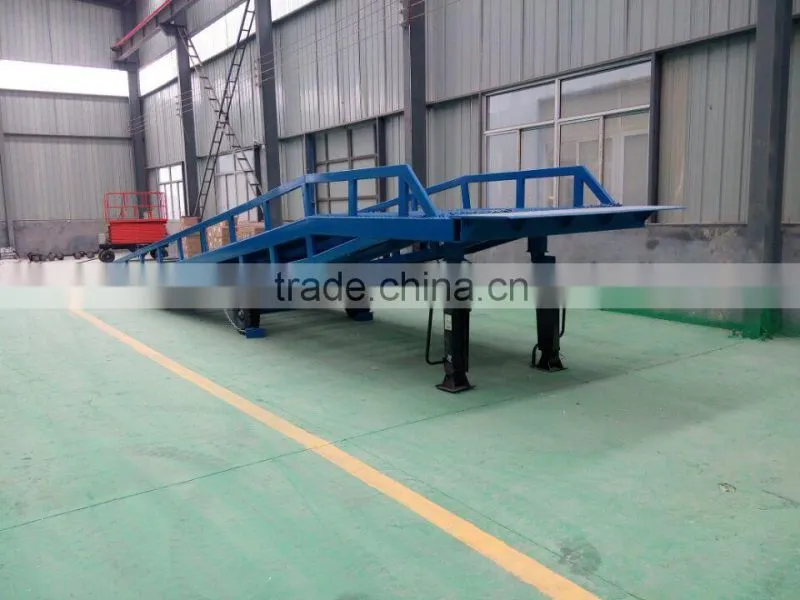

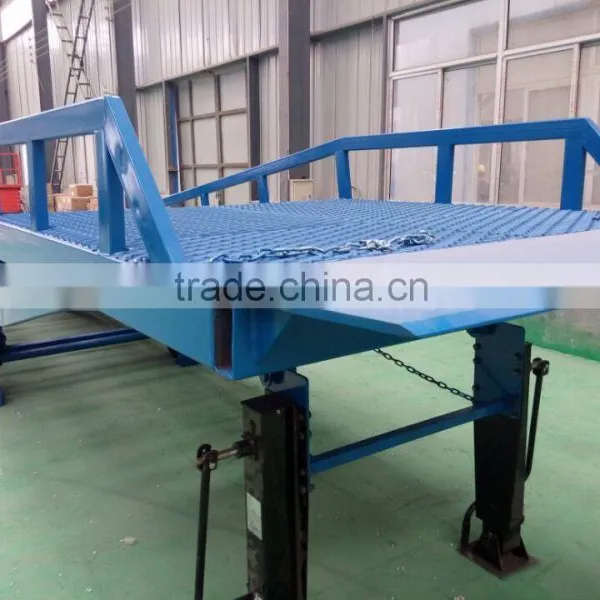

Product show
Jinan Jinchuan Hydraulic Machinery Co.,LTD is one manufacturer of dock ramp and lift platform located in Taixing road,Jitang development,Jiyang County,Jinan,Sahndong who has more ten years' experience in the lift table equipment field and more 4 years' experience on Alibaba business.
Our main products:
Movable dock ramp ,load from 4000kgs-14000kgs
Stationary dock ramp ,load from 4000kgs-14000kgs
Movable scissor wheels platform lift ,load from 300kgs-1500kgs,lift from 3m-16m
Self-propelled movable scissor platform
360 degree crank movable platform lift ,load 200kgs,lift from 4-14m

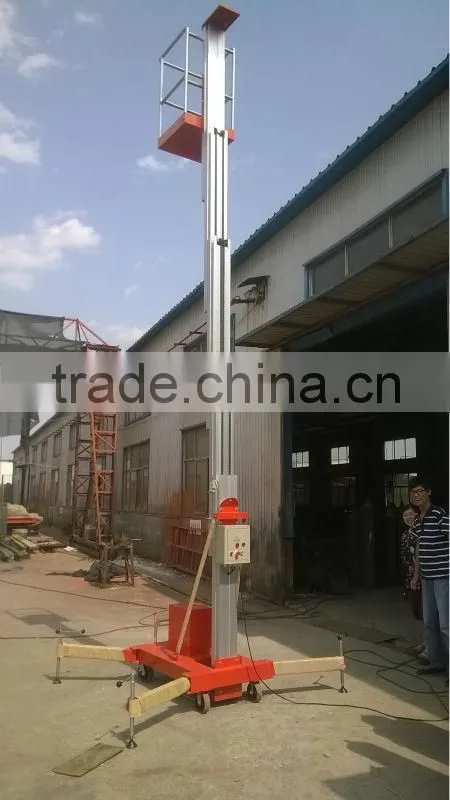

Single mast aluminum alloy lift platform,laod 100kgs,lift from 4m-10m

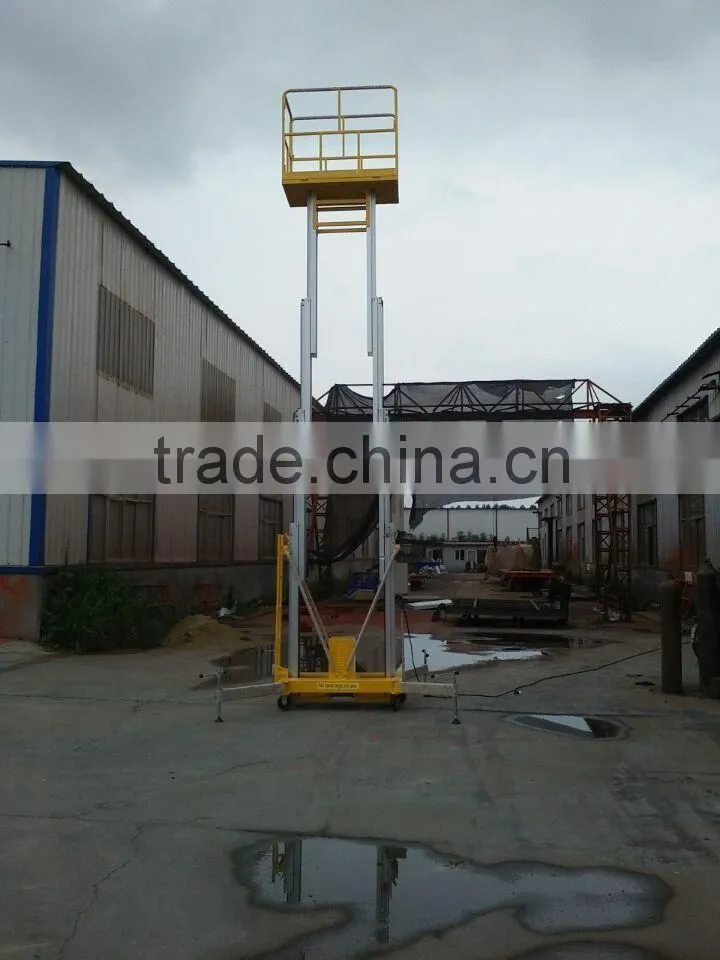

Two mast aluminum alloy lift platform,laod 200kgs .lift from 4m -16m
Four mast aluminum alloy lift platform,load 300kgs ,lift from 4m- 16m
Car lift table

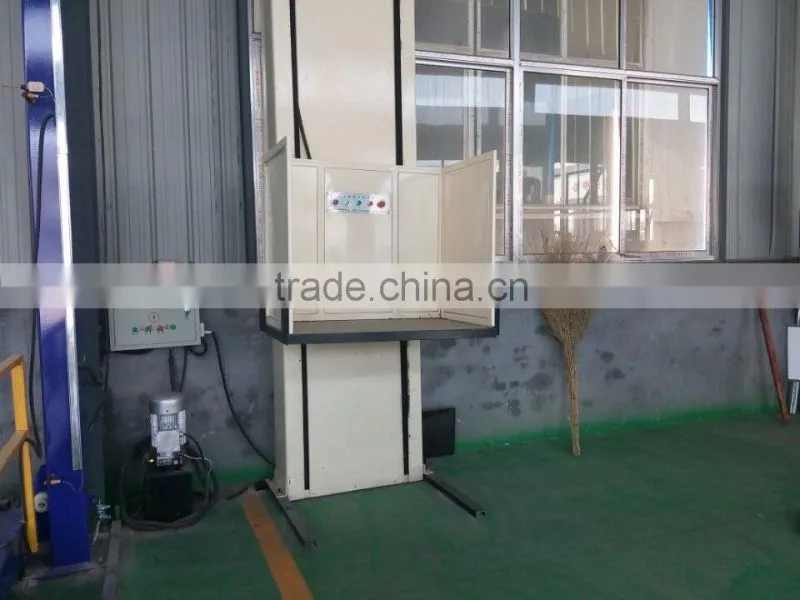

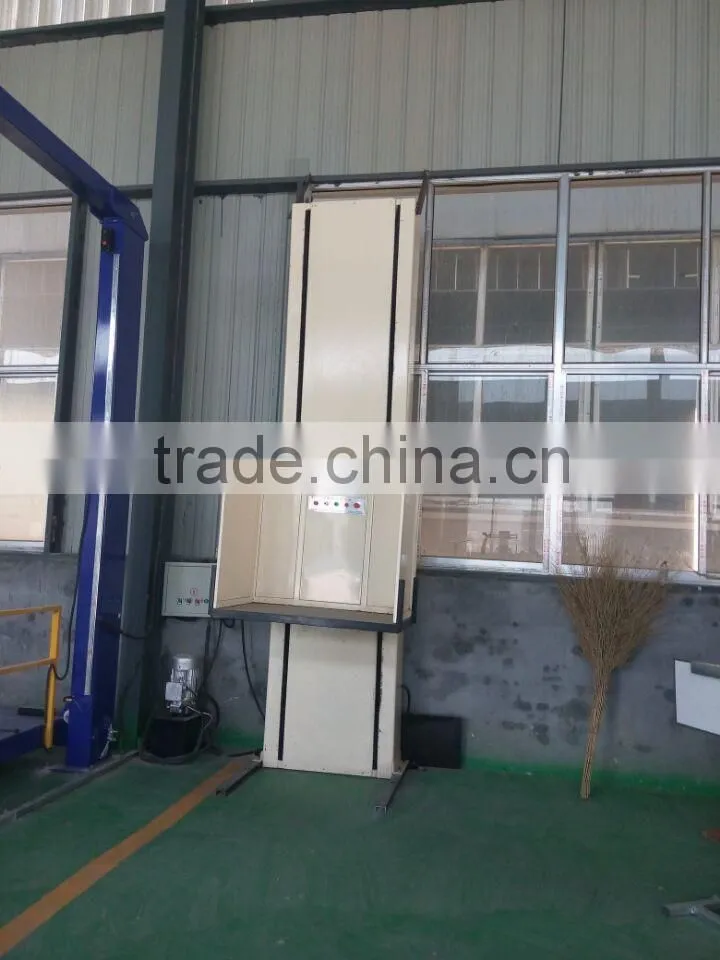

Lift for the disabled and elderly
Our certificate
The package is made by plywood case.We do standard export package. Please have a look at physical
Q 1.Order information:
You can send your demand(the type or model of lift table,the size you need and your local power)
Q2.Delivery time
If products in stock,deliver immediately.If no products in stock because of the need of other clients,we will overwork and promise 7 days to deliver goods
Q3.The quantity of order
The more,the merrier.We can produce more than 300 sets if we open the ability of production.So dont worry about the time.
Q4.Contact information.
