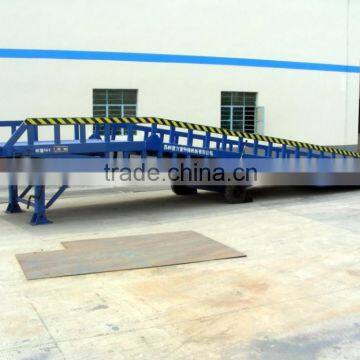

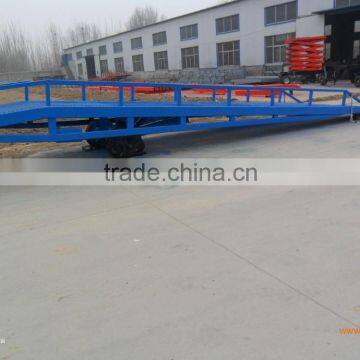

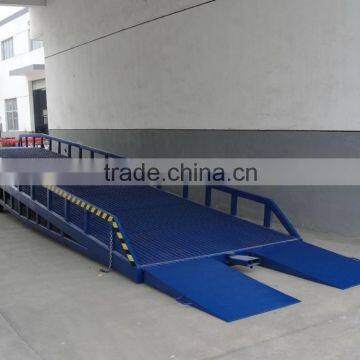

Floating Adjustable Loading Dock Dock Leveler Ramp For Sale
Hydraulic system:
1.With handle pump, screw the return valve clockwise. dock leveler
2.Move the handle stick, to lift the ramp slowly. dock leveler
3.When the return valve is screwed counterclockwise, the hydraulic oil will go back, and the ramp will fall down on its own weight.
Operation process:
1. Fasten the return vavle and press the handl to move the ramp over the truck soleplate. Unfold the landing legs to working height.
2.Drive the car under the plate. dock leveler
3.Release the return valve, and the ramp will fall down onto the afterbody of the truck, then fasten the ramp and the truck with the chain. The hyraulic system and the tyres of ramp do not carry the weight.
4.Operating starts. dock leveler
5.When the operation finishes, untie the fixing chains. Lifting the ramp by the handle stick, and then drive out the truck.
6.Uplifting the afterbody of the ramp to move around hang on the truck. dock leveler
Technology parameters:
similar production:
Major features:
1.Heavy-duty mobile tyre
Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.
2.Adjustable height supporting legs
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles
3.Manual hydraulic elevator system
It's equipped with handle hydraulic device adjusting the working height directly ,which don't need electricity.
4.Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile cllimbing.
5.Adjustable length Hinge
Chains hook vehicles, make cllimbing and vehicles even shift always close together.
6.Bridge body structure
Bridge body strength, high bearing capacity bridge by high strength manganese steel body : compound high strength, the characteristics of large carrying capacity.
7.Antiskid steel nets
Adopting special rhombic grid plate can ensure excellent slip resistance ,which benefit forklift to climb. Even through the work meets rain or snow, antiskid platform can ensure work not to be affected.
8.Safety crack-proof valve dock leveler
24hours service for you
