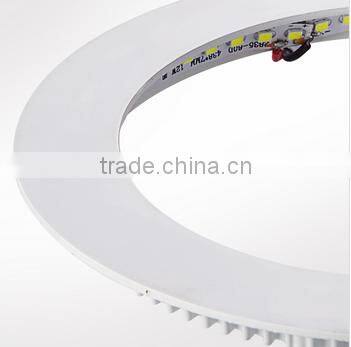

Office ceiling recessed 12W round led panel light for bathroom kitchen dia170mm
LED round panel light Features
1. Use 2835SMD LED round panel light-EPISTAR SMD LED
2. Efficient housing design results in 93% light utilisation
3. Aluminum base design, heat dissipation excellent
4. Life Span>50, 000 hours average
5. High Power Factor LED round panel light
6. 95% efficient integrated LED driver-LIFUD
7. Warm white,natural white,cool white colour temperatures, CRI > 80
8. Direct Use in AC85-265V, also can do in 100-277V
Technical Details
| Model | Power | Size | Cutout | SMD Type or Led Qty | Luminous Flux | Working Voltage |
| AR-PLR3 | 3W | 85mm | 72mm | 2835-15P | 165lm | 85~265V |
| AR-PLR6 | 6W | 120mm | 105mm | 2835-30P | 390lm | 85~265V |
| AR-PLR9 | 9W | 146mm | 136mm | 2835-45P | 620lm | 85~265V |
| AR-PLR12 | 12W | 172mm | 160mm | 2835-60P | 860lm | 85~265V |
| AR-PLR15 | 15W | 190mm | 180mm | 2835-75P | 1080lm | 85~265V |
| AR-PLR18 | 18W | 225mm | 215mm | 2835-90P | 1480lm | 85~265V |
| AR-PLR24 | 24W | 300mm | 280mm | 2835-120P | 1700lm | 85~265V |
| AR-PLS3 | 3W | 85*85mm | 72*72mm | 2835-15P | 165lm | 85~265V |
| AR-PLS6 | 6W | 120*120mm | 105*105mm | 2835-30P | 430lm | 85~265V |
| AR-PLS9 | 9W | 146*146mm | 136*136mm | 2835-45P | 650lm | 85~265V |
| AR-PLS12 | 12W | 172*172mm | 160*160mm | 2835-60P | 880lm | 85~265V |
| AR-PLS15 | 15W | 190*190mm | 180*180mm | 2835-75P | 1180lm | 85~265V |
| AR-PLS18 | 18W | 225*225mm | 210*210mm | 2835-90P | 1600lm | 85~265V |
| AR-PLR24 | 24W | 300mm | 280mm | 2835-120P | 1700lm | 85~265V |

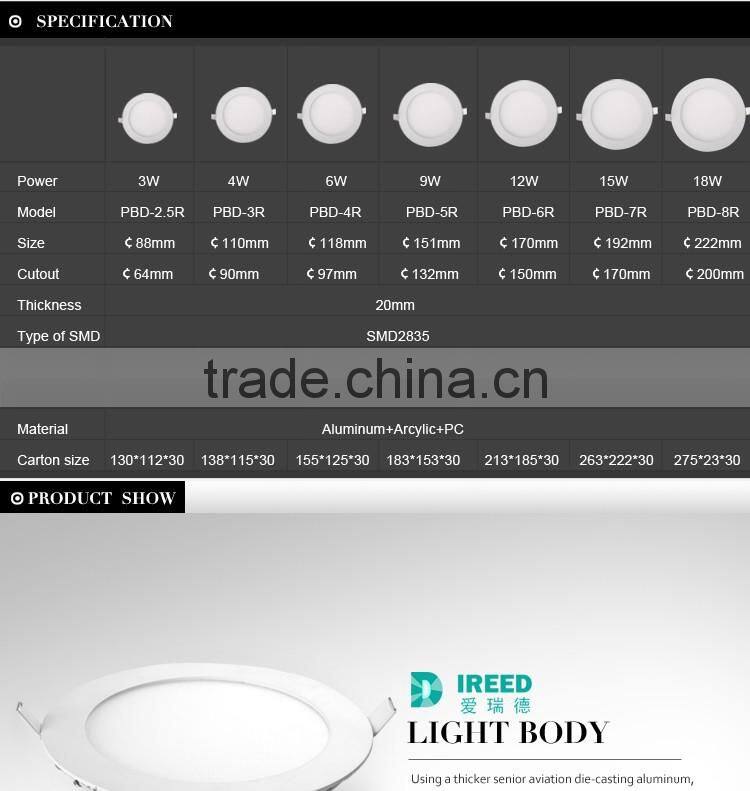

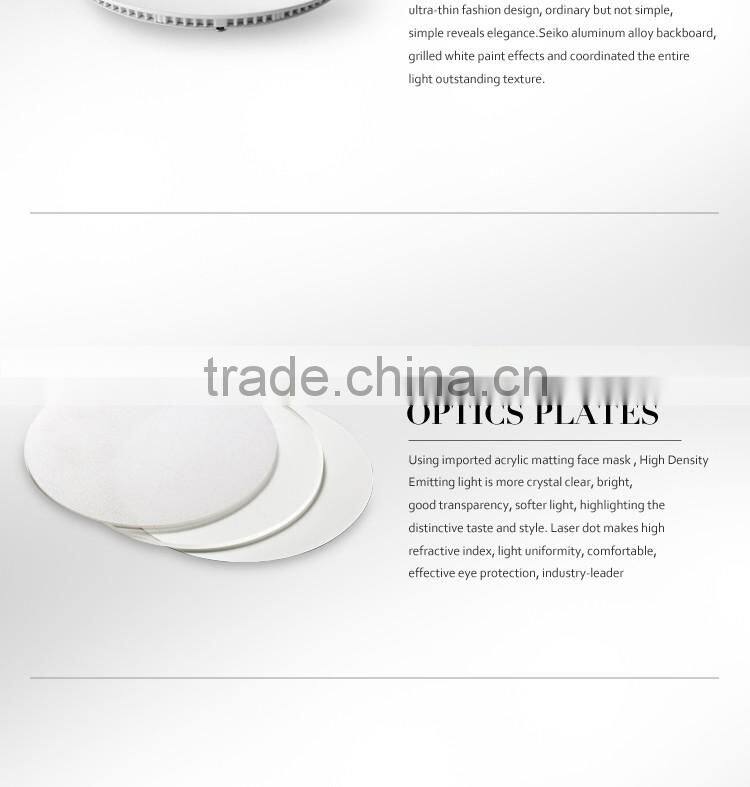

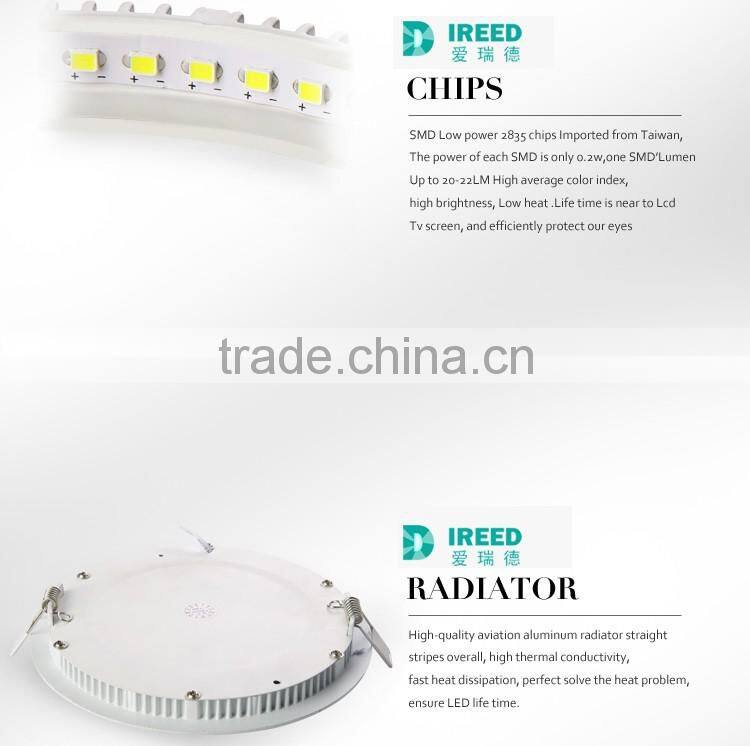

Pictures for LED panel light details
How to check the quality of LED panel light without testing machine?
The structure for LED ceiling panel is simple, it mainly consists of 3 parts mainly, let's do it one by one.
Part One. Aluminum body
1. Weight- for aluminum, the more heavy, the more thick the body , the better
2. Material- Aluminum is better than plastic or mix materials
Part Two. LED
1. Brand- There're many brands, Epistar(Taiwan brand) is the most competitive, San'an is best in Chinese brands.
2. Testing by aging equipment is more direct way
3. Brightness- this is complex, <50lm/W and >120lm/W are neither good. Low lumens means low brightness, >120lm/W maybe high decay=short lifespam.
4. Average of lightoutput- When you look at the light, it is average, but not somewhere dark, somewhere bright.
Part Three. Driver
1. Components- If you open the cover by screwing,the more components it has, the safer/better.
2. PF - the higher, the better.
3. Appearance, weight, which you can check also.
Specifications
Package
1. Each piece packed in a color box separately.
2. Outer carton contain 20-30pcs of products depends on size.
Delivery:
1.Sample takes 3-10 days to prepare.
2.Mass order with QTY>100pcs(MOQ) will finish 15-45 days for QTY<100K pcs.
1. Recessed square LED panel light
2.Recessed round LED panel light
3.Wall mounted round LED panel light
4. Wall mounted square LED panel light
Your Satisfaction, Our mission
Specialied in LED panel lights and industrial lights.
Our Products
1.LED square ceiling panel light
2.LED round slim panel light
3.LED industrial light such as LED street light, flood light, high bay, tunnel light, mainly modular LED module as light source
Major Market
1.European areas
2.Middle East, Russia, South America areas
OEM
Can print your LOGO on our product
Scale
About 200 workers and manufacture of LED lamps
Certificate
CE certificate and ROHS for European countries
UL listing for American market
SAA for Austrialia
Belief
We believe in honest and principle and quality more than profit only.
A Company You Can Trust
Built in 2007, Hangzhou Areeklighting Technology Co., Ltd., is a new established branch company of a co-established German brand Corporation. We are dedicated to lighting design and product development with technical support, adhering to the head office's mission statement of "dedication oriented, honesty-based, and determined to lead the lighting revolution with green, environment-friendly and energy-saving lighting fixtures". Our head office, has been engaged in lighting manufacture for 11 years, with capital assets of over hundreds of millions RMB and workshops covering an area of over 40000 square meters. It has got the certificates of ISO9001, CCC, CE, TUV-GS and ETL. The products have won praise from customers worldwide.
We always focus on pursuing advanced technology, perfect products and satisfactory customer services. We never compromise before any technical and quality problems.
Quality and Safety
We have implemented a strict and complete quality control system, which ensures that each product meet the quality requirements of customers. Besides, all of our products have been strictly inspected before shipment.
R&D group
Maybe you are not an expert of LED fixtures, but you surely agree that different designers determine different product styles and quality. We have 17-24 engineers who have years' work experience. Their strict attitude towards work ensures that we always lead the line with new product styles and technology.
Your Satisfaction, Our mission
Our aim is to help customers realize their goals. Service is something we never overlooked. When our products delivered to your hands, it is just the beginning of our essential service. We are making great efforts to achieve win-win situation and we sincerely welcome you to join us.
CE certificate
QUALITY Control
1. Aging test will keep the lamps lighting up >24 hours
2. Photometric Testing Machine(EVERFINE brand)
3. Light-distribution photometer
4. Production Line(workers wear long sleeves clothes and hats to avoid dust or hair)
5. Dust-free room
1. Yours own design are acceptable.
2. 3 years warranty.
3. Labling, Packing Service.
4. Samples will be gald to send for your reference.
5. Reply yours questions within 24 hours.
6. Small Orders are acceptable for the long cooperation.
7. Protection of your sales area,ideas of design and all your private information.
Q1. Are you a manufacturer or a trading company?
We are a manufacturer, providing OEM & ODM service.
Q2. What is the delivery date for a sample?
Usually about 3-5 days for items with general requirements.
Q3. Are your products conforming to our standards?
Yes, our products pass the testing as you request.
Q4. How do you control the quality?
We control the product quality by IQC, tests on production lines, 100% aging testing before packaging.
Q5. What's MOQ?
MOQ is 100 pcs. Of course,we could accept small trial orders for certain items.
Q6. Can you give us a favorable discount?
Of course, a favorable discount will be offered during our discussion for reliable customer.
Q7. How do you ship the goods and how long does it take?
We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 4-5 days to arrive.By air,by sea are also supported.
