Hydraulic Platform Truck Platform Lift Table With Roller
- 100 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
-
China easy operated scissor lift platform, truck mounted platform scissor lift
-
China low cost hydraulic elevating platform, truck mounted platform scissor lift
-
2015 hot sale double ladder stop type hydraulic scaffolding lift
-
Big discount offered 8m lift self propelled hydraulic outdoor aerial work platform scissor lift
-
China factory direct sale self propelled scissor lift table / hydraulic scissor lift
-
China good working performance hydraulic scissor lift table, electric mini scissor lift
Product Details
Place of Origin: | Shandong, China | Brand Name: | JIchuan | Model Number: | DCQY-12 |
Lift Mechanism: | Other, mobile dock ramp | Lift Drive / Actuation: | Hydraulic | Power: | according to customer's requirements |
Rated Loading Capacity: | 12000kg | Min. Lifting Height: | 0.9m | Max. Lifting Height: | 1.7m |
Table Size: | 10500*1900mm | Overall Dimensions: | 10500*2000mm | Weight: | 2800, 2800kg |
Certification: | CE;ISO9001:2000 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

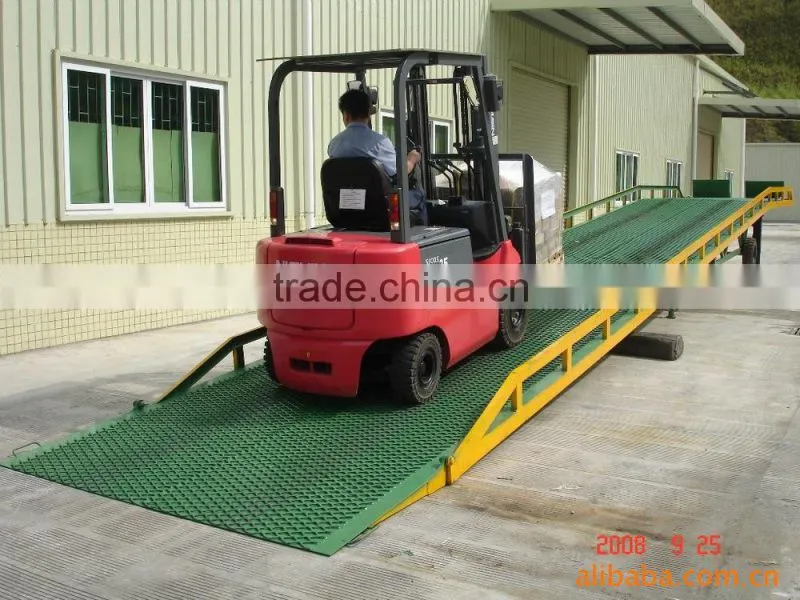

Hydraulic Platform Truck Platform Lift Table With Roller
Hydraulic system:
1.With handle pump, screw the return valve clockwise. platform lift
2.Move the handle stick, to lift the ramp slowly. platform lift
3.When the return valve is screwed counterclockwise, the hydraulic oil will go back, and the ramp will fall down on its own weight.
Operation process:
1. Fasten the return vavle and press the handl to move the ramp over the truck soleplate. Unfold the landing legs to working height.
2.Drive the car under the plate. platform lift
3.Release the return valve, and the ramp will fall down onto the afterbody of the truck, then fasten the ramp and the truck with the chain. The hyraulic system and the tyres of ramp do not carry the weight. platform lift
4.Operating starts. platform lift
5.When the operation finishes, untie the fixing chains. Lifting the ramp by the handle stick, and then drive out the truck. platform lift
6.Uplifting the afterbody of the ramp to move around hang on the truck. platform lift

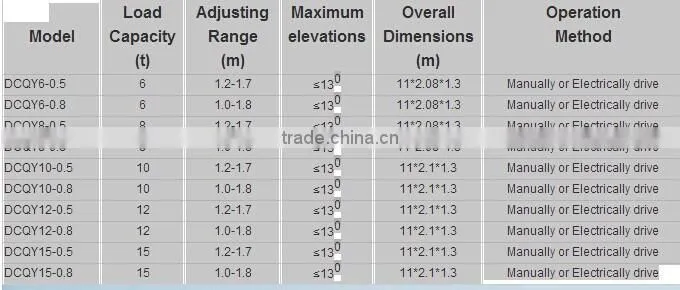

Technology parameters:

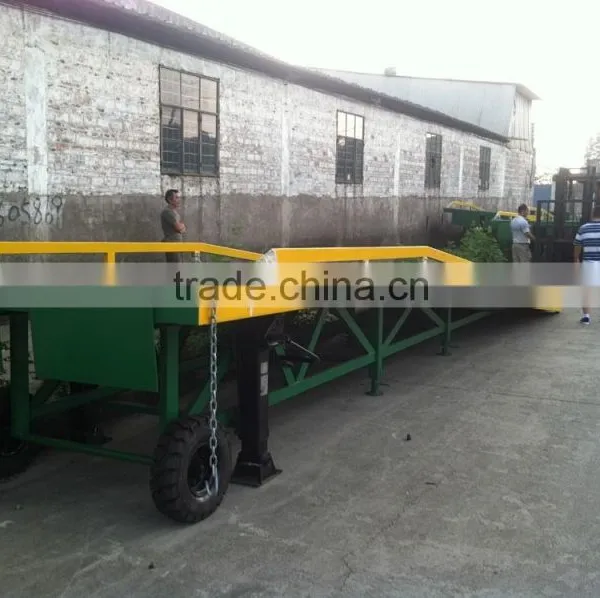

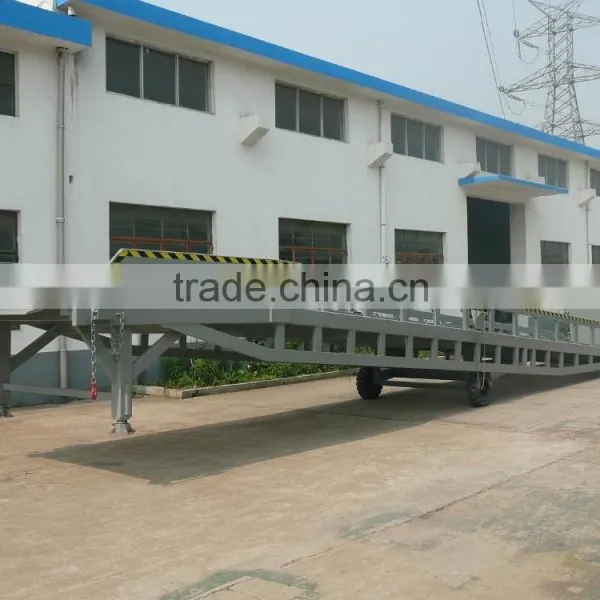

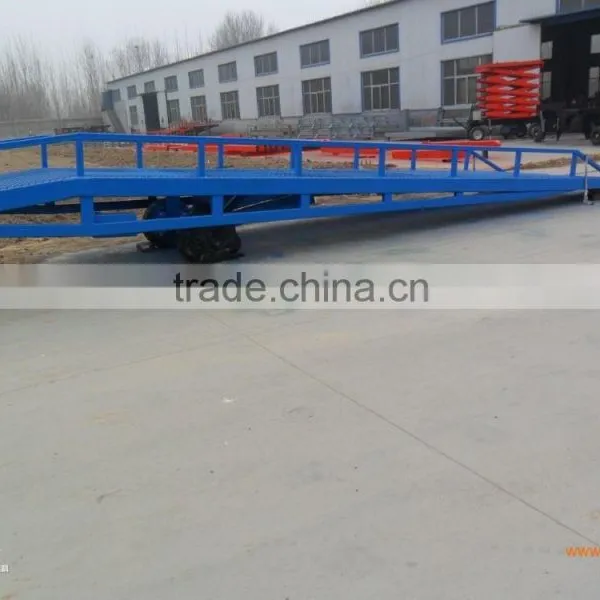

similar production:
Major features:

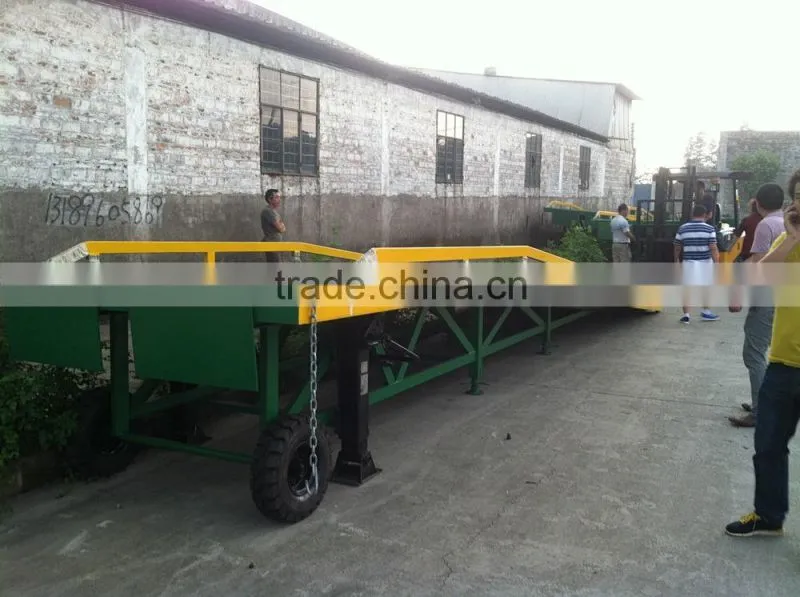

1.Heavy-duty mobile tyre
Mobile wheels adopt solid tyres, need not inflatable, durable, cooperate to brake pad, guarantee the operation safety.

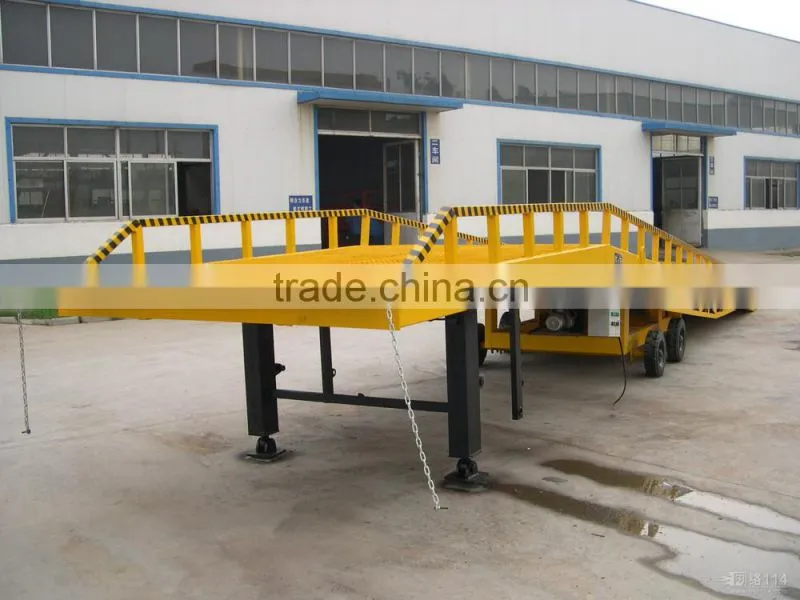

2.Adjustable height supporting legs
Prevent forklift into vehicle gravity concentrate on vehicle tail produce car overturned. Can fully guarantee the operation safety. The different height to vehicles, suitable for height adjustment of vehicles
3.Manual hydraulic elevator system
It's equipped with handle hydraulic device adjusting the working height directly ,which don't need electricity.

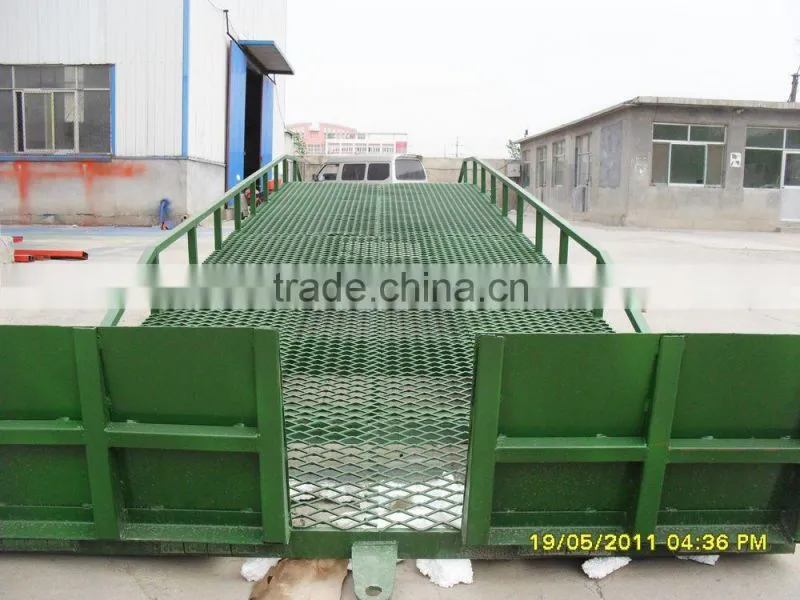

4.Fold-down transition board
The tail and transition plate and forklift folding hook can be convenient mobile cllimbing.
5.Adjustable length Hinge
Chains hook vehicles, make cllimbing and vehicles even shift always close together.
6.Bridge body structure
Bridge body strength, high bearing capacity bridge by high strength manganese steel body : compound high strength, the characteristics of large carrying capacity.

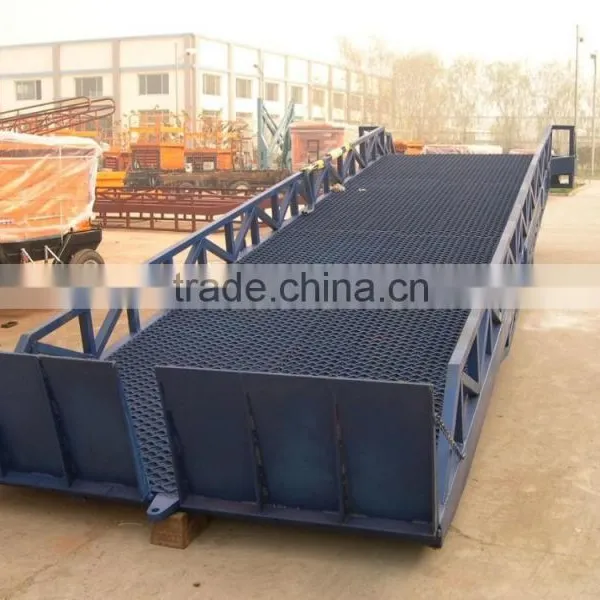

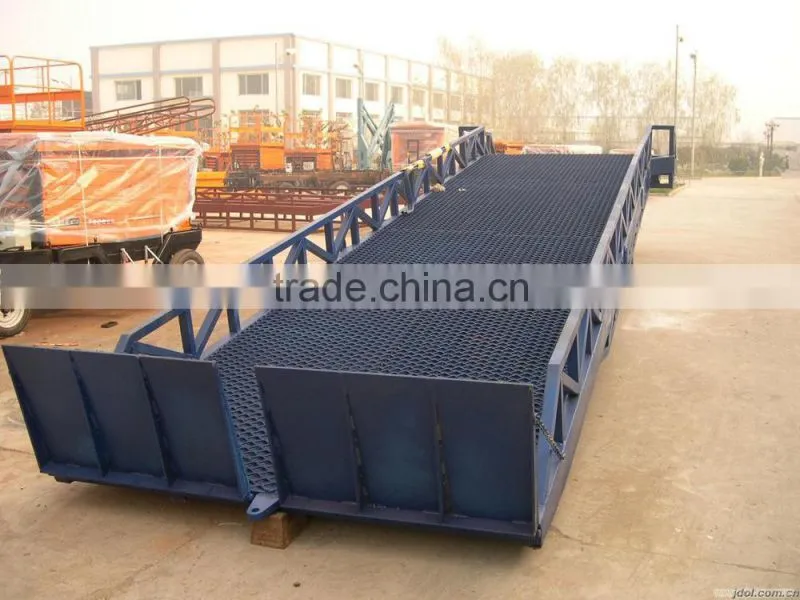

7.Antiskid steel nets
Adopting special rhombic grid plate can ensure excellent slip resistance ,which benefit forklift to climb. Even through the work meets rain or snow, antiskid platform can ensure work not to be affected.
8.Safety crack-proof valve platform lift
Jinan Jinchuan Hydraulic Machinery Co., Ltd., located north Longhai Road Economic Development Zone, advanced production equipment, advanced technological process, product quality product excellence. Production of aluminum lift, has developed and produced mobile, fixed, Crank, sets of cylinder, vehicle-mounted, battery type, engine power, courtyard, can be brought down style, can be angled to self-propelled, vehicle-mounted, Ramps, loading bridge, unloading platform, manual lifts and other products, all products have passed the national special equipment inspection station inspection, the performance and technical indicators have reached the national industry standard. With the pace of the years of reform and opening, the company has been the rapid development of products sold at home and abroad, Asia is the present, the Company has integrity-based, quality first, technology innovation, customer-oriented business philosophy, nearby all my colleagues, to join hands and forge ahead create brilliant. platform lift
