Specifications
mould use for boby toys productsS136 mold steel,LKM mold standand
--OEM available
precision plastic injection toys mould

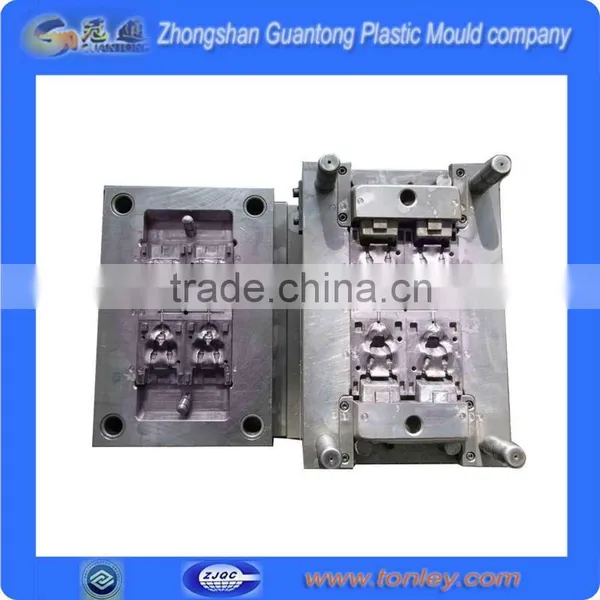

precision smal plastic toy molds (OEM):
Name |
precision smal plastic toy molds |
Mould material |
45#, 50#, P20, H13, 718, 2738, NAK80, S136, SKD61 etc. |
Mould base |
LKM, HASCO , 50# ect |
Cavity |
according to customer's request |
Runner |
Hot/cold |
Design software |
UG, PROE, CAD, CAXA ect. |
Plastic material |
PP, PC, PS, PE, PU, PVC, ABS,POM,PMMA ect |
Mould life |
300,000-6,000,000 shots |
Delivery time |
30-60days |
Specification |
Depends on customer's requirements. |
Mould manufacturing services:
Before processing: |
we’ll provide the detailed mould structure drawings,2D and 3D drawings (including the details of the structure, the ejection way, cooling effect, etc.) |
Machining process: |
we’ll provide the processing progress photos and the relevant materialscertificate informations on time. |
Test process: |
we’ll provide the mould testing process parameters and video the whole process. |
After the test: |
in order to save your time,we’ll provide the product dimension report, important assembly dimension and critical dimension. Then send out the samples and reports to customers. |
Before shipment: |
we’ll according to customers’ requirements to conduct a comprehensive inspection of internal and external dimensions, the mould appearance which should conform to the requirements of the shipment.Also prepare the spare parts and drawings with the shipment to customers. |
| mould machine list | ||
| type | name | quantity |
| computer control machining | CNC | 5 |
| engraving machine | 3 | |
| spark forming machining | spark machine | 11 |
| wire cutting machine | 5 | |
| machining in general | plain milling machine | 12 |
| radial drilling machine | 1 | |
| radial drilling machine | 1 | |
| center lathe | 1 | |
| bench drilling machine | 1 | |
| bench drilling machine | 1 | |
| precision machining | flat grinder | 1 |
| precision grinder | 1 | |
| Plain grinding machine | 1 | |
| Plain grinding machine | 1 | |
| injection machine list | ||||||
| specification | quantity | intercolumniation(MM) | clamping force | max ejection | ||
| X | Y | (KN) | (G) | (OZ) | ||
| CJ80M3V | 3 | 355 | 300 | 800 | 153 | 5.4 |
| CJ120M3V | 2 | 410 | 360 | 1200 | 204 | 7.2 |
| CJ150M3V | 1 | 455 | 425 | 1500 | 312 | 11 |
| LS80 | 3 | 340 | 340 | 800 | 153 | 5.4 |
| UN100 | 2 | 355 | 355 | 1000 | 162 | 5.7 |
| UN140 | 1 | 410 | 410 | 1400 | 241 | 8.5 |
| UN180 | 1 | 460 | 460 | 1800 | 298 | 10.5 |
| UN220 | 2 | 510 | 510 | 2200 | 509 | 18 |
| UN300 | 2 | 610 | 610 | 3000 | 858 | 30 |
| HTF600W2 | 1 | 880 | 880 | 6000 | 2547 | 90 |
| HTF360*2 | 1 | 710 | 710 | 3600 | 972 | 33 |
| HTF320*2 | 1 | 680 | 680 | 3200 | 845 | 30 |
| HTF300*2 | 2 | 660 | 660 | 3000 | 853 | 30 |
| HTF250*2 | 3 | 570 | 570 | 2500 | 535 | 18.9 |
| HTF200*2 | 2 | 510 | 510 | 2000 | 412 | 14.5 |
| HFT160*2 | 2 | 455 | 455 | 1600 | 320 | 11 |
inspection measuring list | |||||
| Name | Specification | Quantity | Name | Specification | Quantity |
| CMM | YXB-500 | 1 | Micrometer | 25-50 | 5 |
| Projector | ETV-200 | 1 | Marble test bench | 1200*800 | 2 |
| Digimatic Caliper | 0~200~300 | 15 | Electronic scale | 100KG | 7 |
