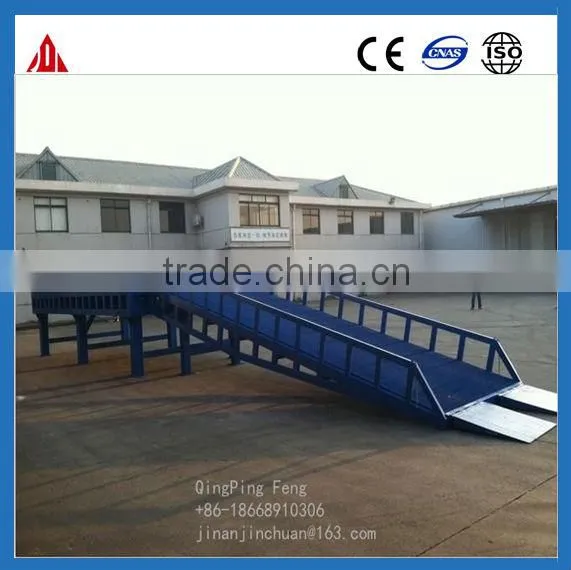

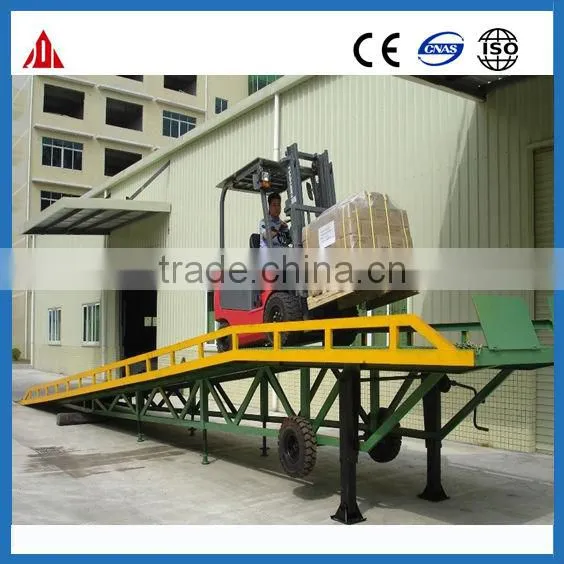

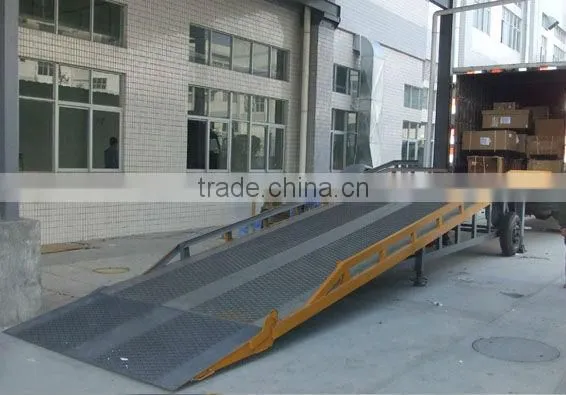

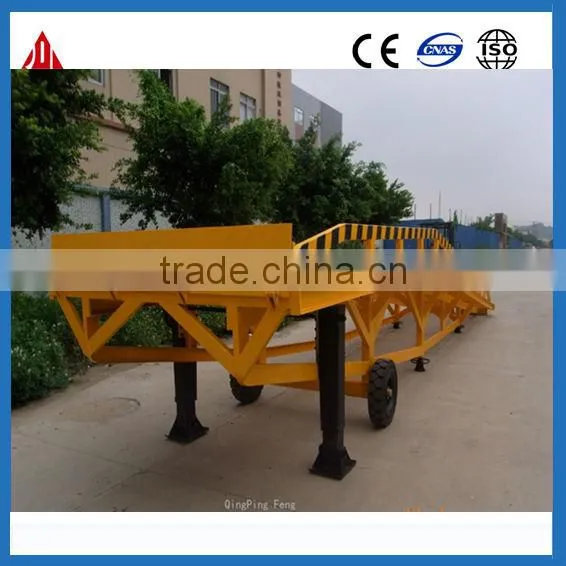

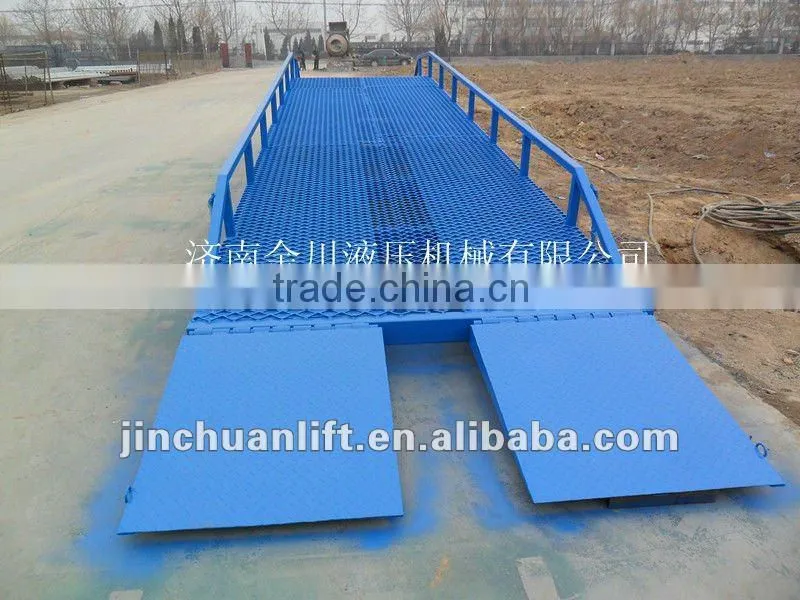

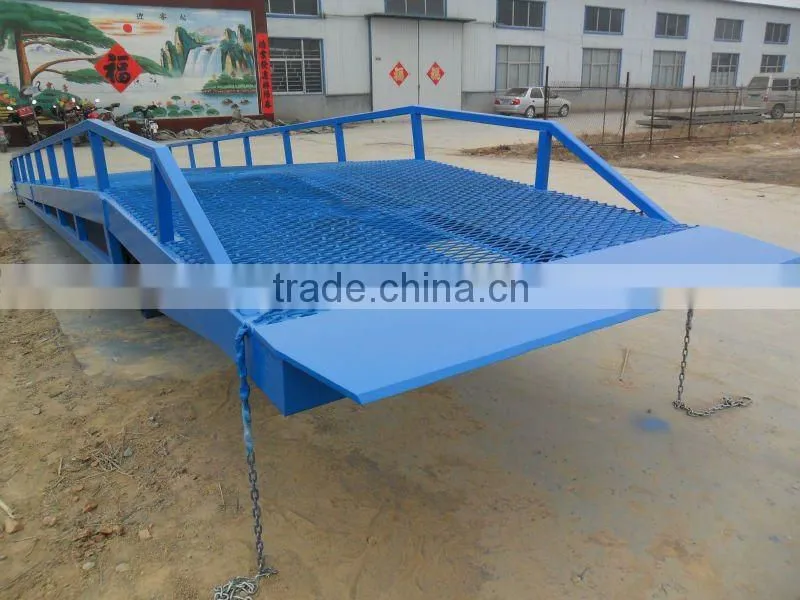

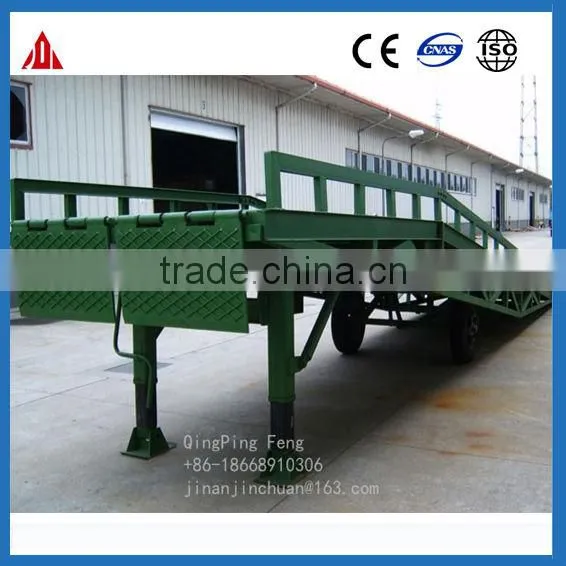

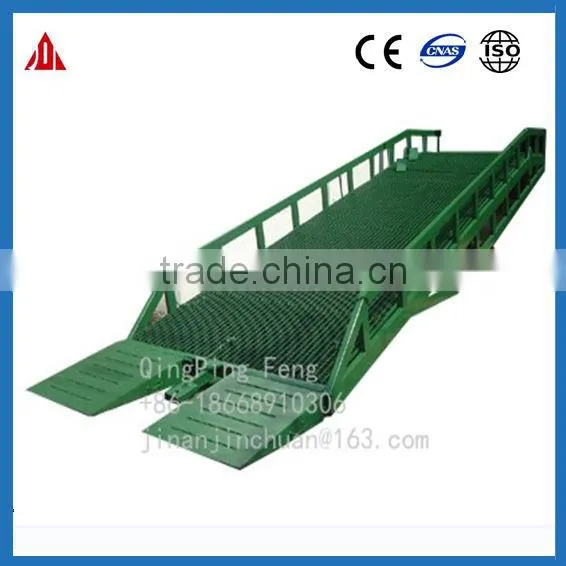

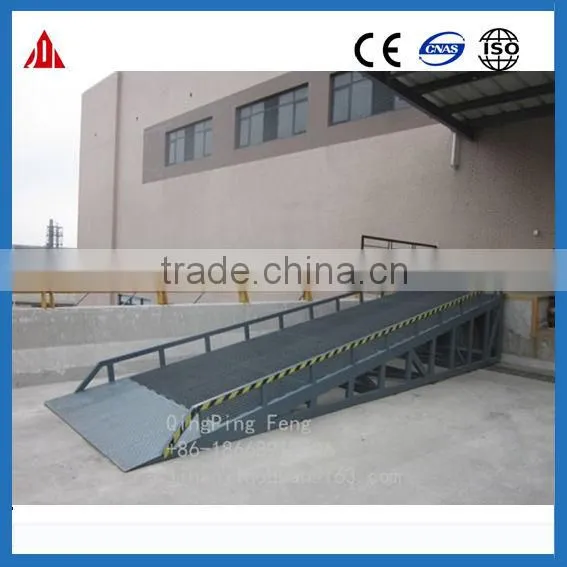

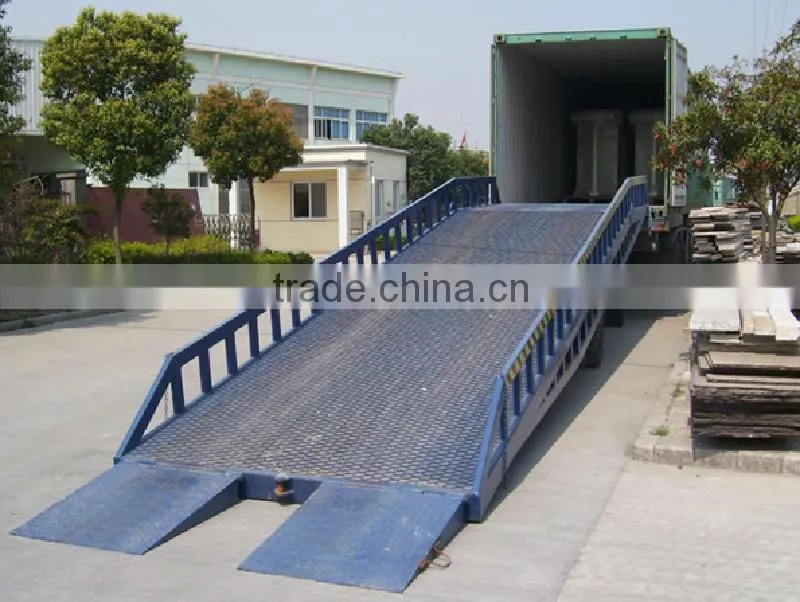

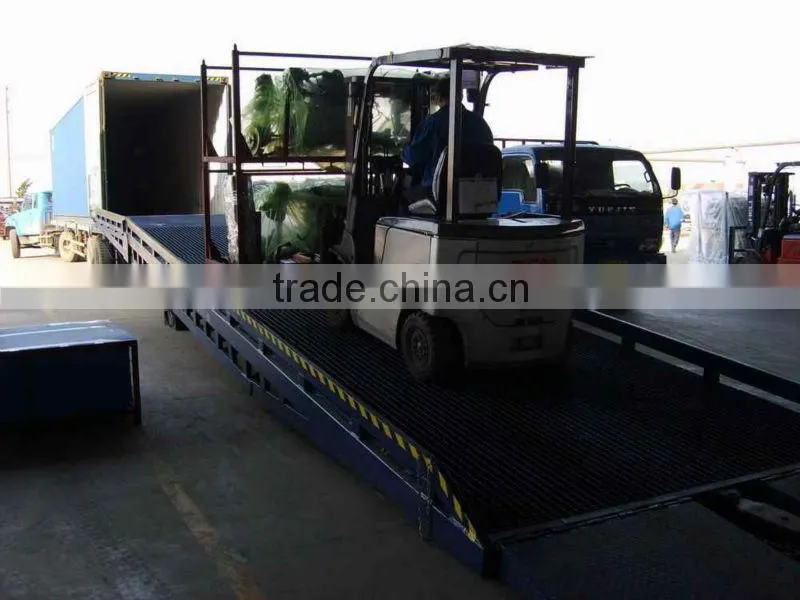

8T Mobile Hydraulic Yard Ramp/loading Dock Ramp Leveler
US$ 6,000 - 8,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Jinchuan
Model Number:
DCQY-12
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Loading/ Unloading Mobile Ramp With 10 TonsUS$ 6,000 - 6,500MOQ: 1 Set -
10000KG Mobile Dock Ramp/Hydraulic Dock Ramp/Loading Skateboard RampUS$ 6,000 - 6,500MOQ: 1 Set
-
Mobile Container Forklift Loading Ramp 10000KG CapacityUS$ 6,000 - 6,500MOQ: 1 Set
-
Forklift Truck Used Load Unload Mobile Hydraulic Yard Ramp Load Ramp 10tUS$ 6,000 - 6,500MOQ: 1 Set
-
10 Ton Hydraulic Container Loading Ramp / Manual Mobile Yard RampUS$ 6,000 - 6,500MOQ: 1 Set
Place of Origin
Shandong, China
Brand Name
Jinchuan
Model Number
DCQY-12
Lift Mechanism
Telescoping Lift
Lift Drive / Actuation
Hydraulic
Power
Manual
Rated Loading Capacity
12000kg
Min. Lifting Height
0.9m
Max. Lifting Height
1.6m
Table Size
10500*1900mm
Overall Dimensions
10500*1900mm
Weight
2800kg
Certification
ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Hydraulic loading ramp for container truck / mobile yard ramp / dock leveler
Mobile Hydraulic Dock Yard Ramp Specifications
1. Mobile Hydraulic Yard Ramp has been tested and debugged, and all the parameters has been reached on the designed requirements. The hydaulic system does not need adjusting.
2. Yard ramp’ s hydraulic system and tyres should be examined carefully before the working to make sure that without the leak of oil and the weak pressure of tyres.
3. The yard ramp should be landed onto the hard ground and to fasten the fixing chains to the truck.
4. The yard ramp should be operated without load for 1-3time, and then to do loaded work.

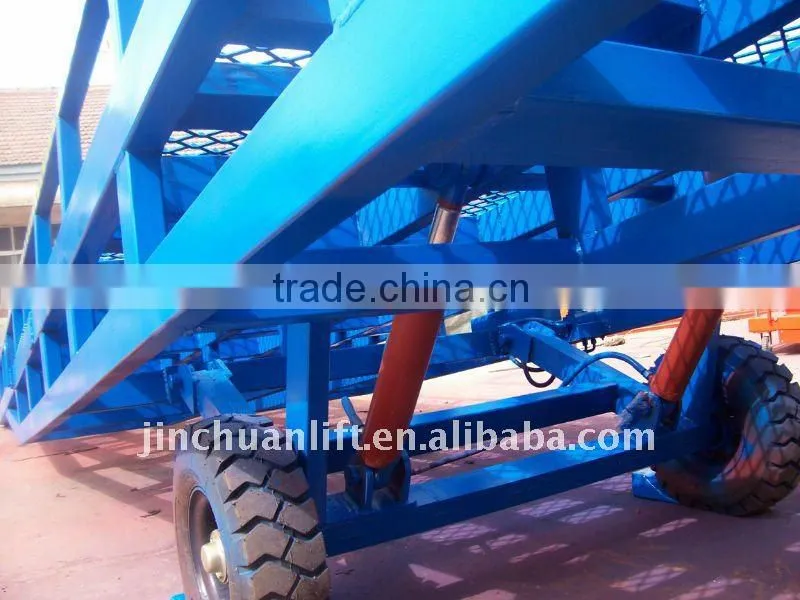

Hydraulic system:
1. With handle pump, screw the return valve clockwise.
2. Move the handle stick, to lift the ramp slowly.
3. When the return valve is screwed counterclockwise, the hydraulic oil will go back, and the ramp will fall down on its own weight.
Operation:1. Fasten the return vavle and press the handl to move the ramp over the truck soleplate. Unfold the landing legs to working height.
2. Drive the car under the plate.
3. Release the return valve, and the ramp will fall down onto the afterbody of the truck, then fasten the ramp and the truck with the chain. The hyraulic system and the tyres of ramp do not carry the weight.
4. Operating starts.
5. When the operation finishes, untie the fixing chains. Lifting the ramp by the handle stick, and then drive out the truck.
6. Uplifting the afterbody of the ramp to move around hang on the truck.
Advantages
- The platform are fully hydraulic drive,easy operation, operational reliability.
- Their height vary with the change of the height of the wagon box, and they keep close contact with
- the wagon box all the time.
- The platform is high strength U shaped beam design,which guarantees that it will not deform under
- high load and long time operating.

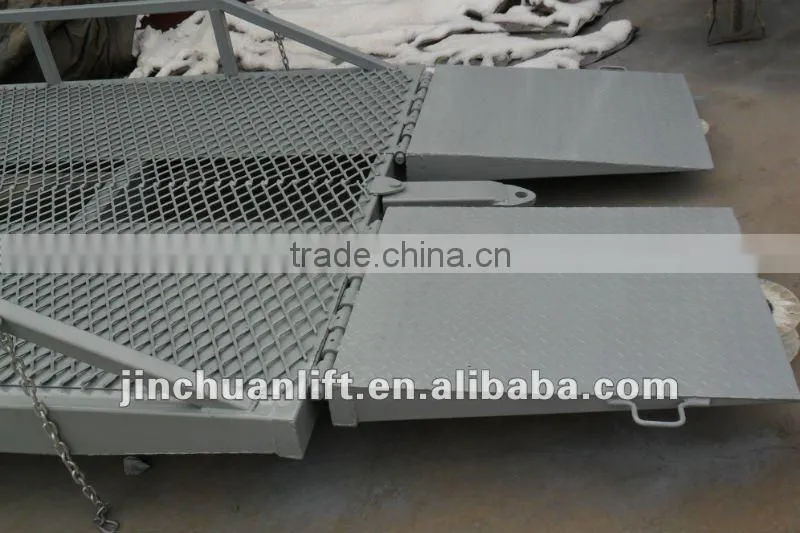

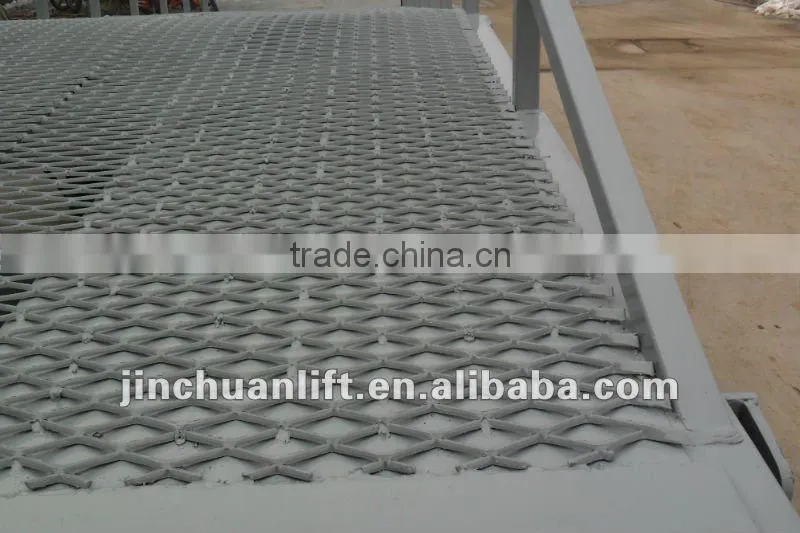

- The surface board of the platform is antislip ruffled plate,which can guarantee that forks will not slip when driving on the platform.
- Both sides of the platform are fitted with safety guard board to prevent tiptoes from being accidently
- injured when stretching into the platform.
- The hydraulic yard ramp has a safety support rod that enables the platform to stay opened, allowing
- personnel to get inside the leveler to do maintenance work conveniently.
Specification
