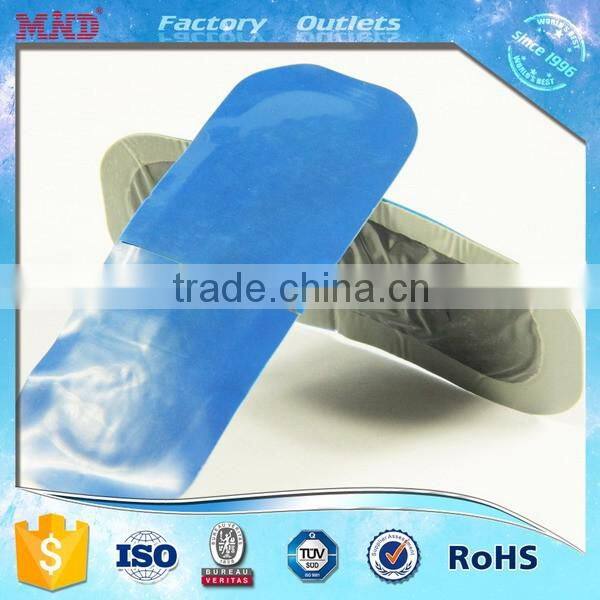

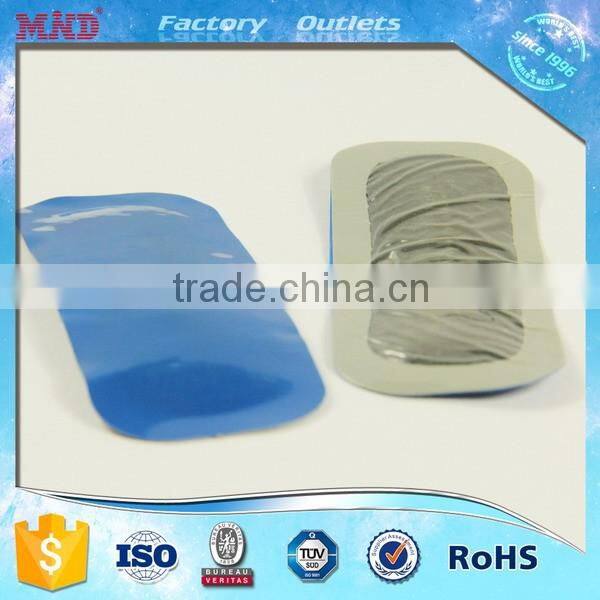

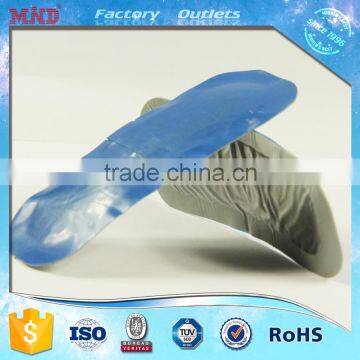

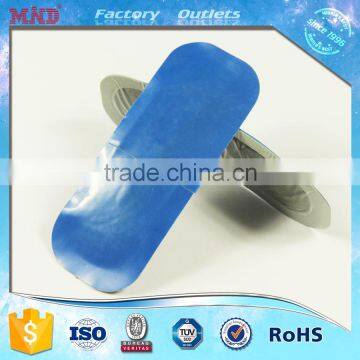

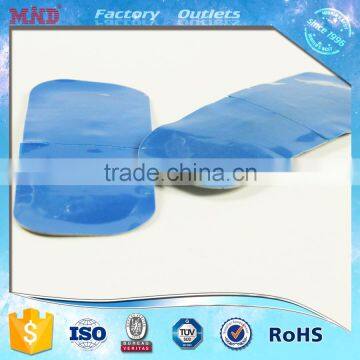

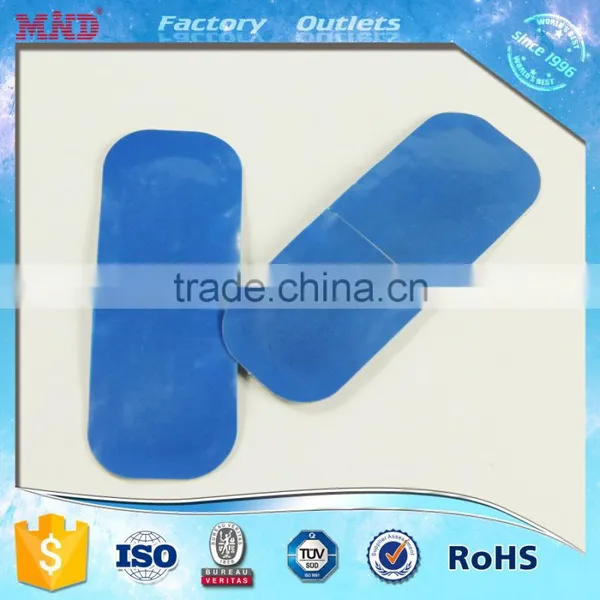

MDT002 Newest Best Quality Rfid Tire Tag
Introduction
- 860-960 MHz frequency range for worldwide application.
- 0~2m read range when mounted on the tire .
- Flexible construction to withstand tire deformation in the total lifetime of the tire.
- Mounted on the inner side-wall of the tire.
- Tag protocol is EPC class 1 generation 2, with 96bits EPC and 512bits user memory.
- Can read and write data into tag’s user memory bank.
- The factory programmed tag identification number is unique to prevent cloning.
Features
1. UHF RFID Tire tag,accord with EPC Class1 Gen2/ISO18000-6C
2. The tag survives the high temperatures encountered in the tire retreading process and is sturdy enough to remain operational throughout the operating life of the tire.
3. The tag has finished thousands of kilometers actual road test, did not lead to potential tire defects.
Specification
Model | TT-020 Tire Tag |
Protocol | EPC class 1 generation 2/ISO 18000-6C |
Frequency | 860—960MHZ |
Read distance | 0-2 M |
Memory | 96bits EPC,512bits user memory |
Read/write | Can read/write data into the tag |
Unique ID | The factory programmed tag identification number is unique to prevent cloning. |
Installation | mounted inner side of the tire |
Dimension | 110mm*55mm*3mm |
Weight | 8.5g |
Installation method
1. Check the general area where the patch will stick.
2. Cleaning the surface of the inner liner in the area where the patch will stick.
3. Removing molded-in features such as ridges (strias) or texture (“alligator skin”)
4. Marking the exact location where the patch will stick
5. The distance between the patch center and the lip of the bead will be 105 – 115 mm
6. Applying Vulcanizing Cement and allowing the solvent to dry
7. Applying the patch to the prepared inner liner and applying pressure (“stitching it down”) to assure intimate contact.
8. There will be no bubbles under neath the patch
9. The patch will be tightly adhered to the tire all the way around its periphery.
10. Waiting for appropriate time and make the adhesive system vulcanization (depending on temperature).
Main Products: NFC/RFID smart card, Contact IC card, Epoxy Tag, Magnetic stripe card, ABS key Fob, Silicon/Woven/Nylon RFID wristband etc.
Many avaliabe crafts for clients free chioce.
1. Adopting raw material from the supplier of national citizen id card , which is safety and environmental protection of PVC material.
2. Anti scratch, more durable with overlay and protect film.
3. Best printing machine: Germany Heidelberg four-color printer, exquisite printing quality.
-Why Choose us?
-Cuz we have best sevice and quality!
1. Warranty date: 3 years
2.Free Replacement: If have inaccurate card within order, Chengdu Mind Golden System CO., LTD will provide free replacements.
3. On-time Delivery Guarantee: delay over 1 week, provide 3% free cards; delay over 2 weeks, provide 6% free cards.
Many Chinese and international partners around the world. We are looking forward to cooperate with you soon...
Our Partners:
By Sea, by air and express, client can choose what you want!
Carton size:
| Quantity | Carton Size | Weight(KG) | volume(cbm) | |
| 1000 | 27*23.5*13.5cm | 6.5 | 0.009 | |
| 2000 | 32.5*21*21.5cm | 13 | 0.015 | |
| 3000 | 51*21.5*19.8cm | 19.5 | 0.02 | |
| 5000 | 48*21.5*30cm | 33 | 0.03 | |
Established in 1998, Chengdu Mind Golden Card System Co.,Ltd has own factory with 20000 sqaure meters. It is a leading card manufacturer. Chengdu Mind is specialized in the designing, researching, manufacturing and selling of RFID products and PVC cards over 16 years.
Our Team and Factory:
Short delivery time for dozens of production lines as followings
We are looking for long terms cooperation access control and security systems wholesalers, resellers, importers, agents worldwide!
