Home > Products > mobile dock ramp > movable dock leveler/hydraulic dock leveler
movable dock leveler/hydraulic dock leveler
- 200 Set / Sets per Month
- Qingdao
- T/T
- China easy operated scissor lift platform, truck mounted platform scissor lift
- China low cost hydraulic elevating platform, truck mounted platform scissor lift
- 2015 hot sale double ladder stop type hydraulic scaffolding lift
- Big discount offered 8m lift self propelled hydraulic outdoor aerial work platform scissor lift
- China factory direct sale self propelled scissor lift table / hydraulic scissor lift
- China good working performance hydraulic scissor lift table, electric mini scissor lift
Product Details
Place of Origin: | Shandong, China | Brand Name: | Jinchuan | Model Number: | DCQY-12 |
Lift Mechanism: | Other, hydraulic | Lift Drive / Actuation: | Hydraulic | Power: | Manual hydraulic |
Rated Loading Capacity: | 12000kg | Min. Lifting Height: | 1000mm | Max. Lifting Height: | 1800mm |
Table Size: | 11000*2000mm | Overall Dimensions: | 11000*2000*1400mm | Weight: | 2300kg |
Certification: | CE ISO9001 | Warranty: | 12 Months | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
jinchuan hydraulic movable dock ramp
Brief introduction:
Movble ramp are used with the forklift loading and unloading equipment, according to the passenger compartment of the vehicle height adjusting height, forklift truck can directly through the device into the interior of the bulk cargo loading and unloading, only a single operation, can realize the rapid loading and unloading of cargo. It enables enterprises to reduce the amount of labor, improve work efficiency, to obtain greater economic benefits
Movble ramp feature:
1. The table uses a special diamond grid plate has reliable strength, to ensure the long-term use without deformation. It 's a rhombic reticular structure, and fully guarantee the excellent antiskid property, so that the forklift has better climbing and maneuverability. Even in the rain, snow, can ensure normal use.
2. The adjustable length of the cable chain can conveniently hooked truck, make ramp and van always tightly.
3. Using the hand hydraulic pump as power, no need of external connection power supply can easily realize the height adjustment of the boarding bridge.
4. Configuration of the brake pad can effectively prevent the truck loading and unloading when ramp shift.
5.The tire can be inflated rubber tire or solid rubber tires
Mobile Ramp use:
widely used without loading and unloading equipment places, is convenient for forklift truck with loading and unloading cargo compartment of a motor vehicle auxiliary equipment, according to the level of regulation, is suitable for loading vehicles frequently, a large enterprise, warehouse, wharf, warehousing logistics base.
Mobile Deng Ramp models:
Model | Rated load (kg) | Lift range (mm) | The bridge is long(mm) | The bridge is wide(mm) | Operation | The quality of machine(kg) |
DCQY-6 | 6000 | 1000-1800 | 11000 | 2000 | Manual | 2300 |
DCQY-8 | 8000 | 1000-1800 | 11000 | 2000 | Manual | 2480 |
DCQY-10 | 10000 | 1000-1800 | 11000 | 2000 | Manual | 2750 |
DCQY-12 | 12000 | 1000-1800 | 11000 | 2000 | Manual | 2950 |
We warmly welcome all the friends call, letter inquiries, purchase

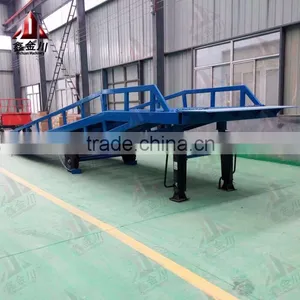

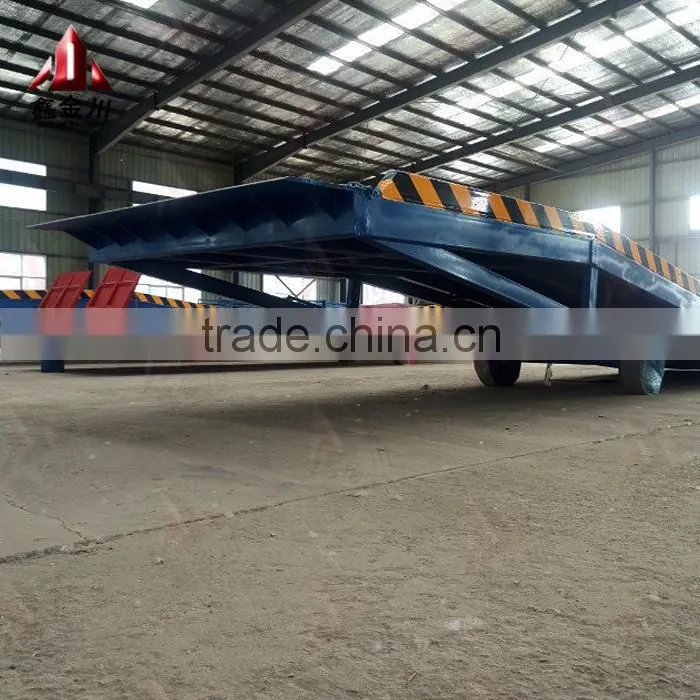

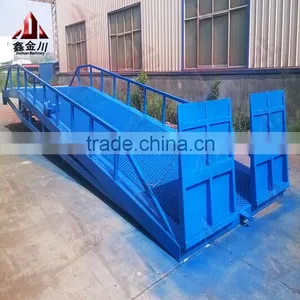

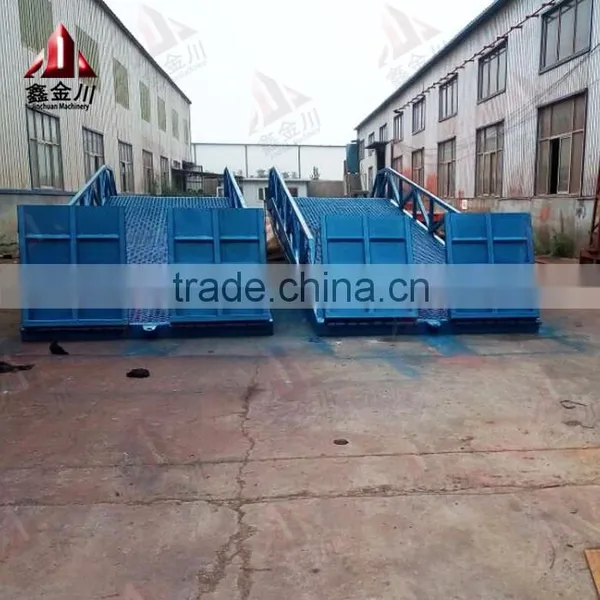

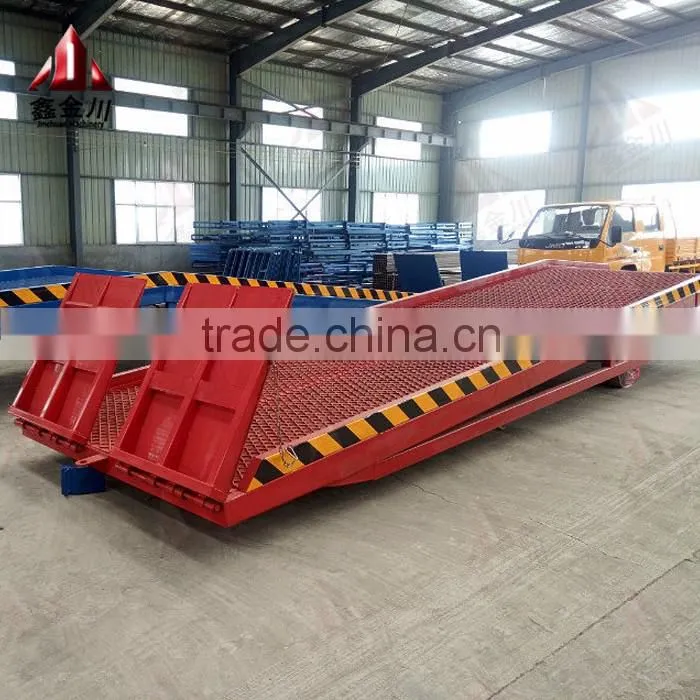

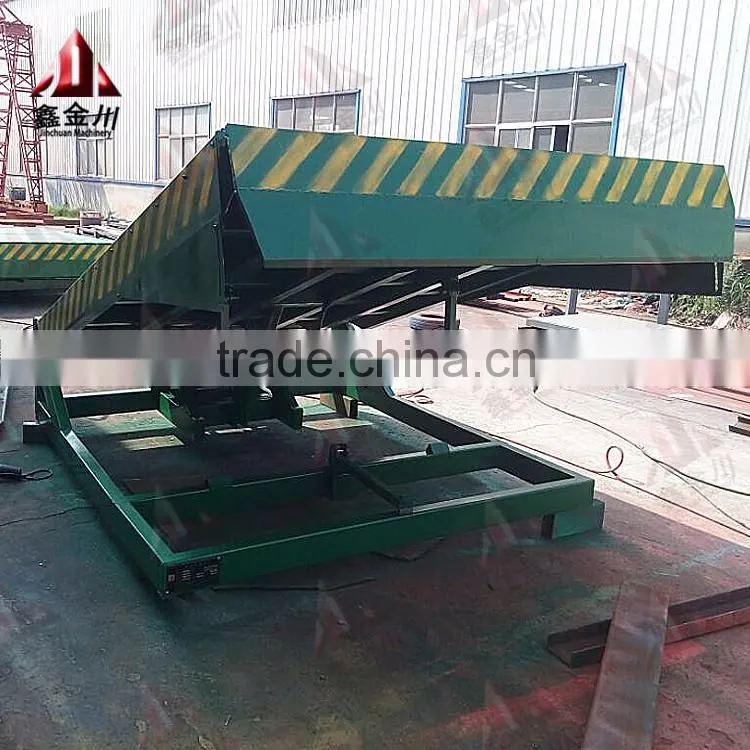

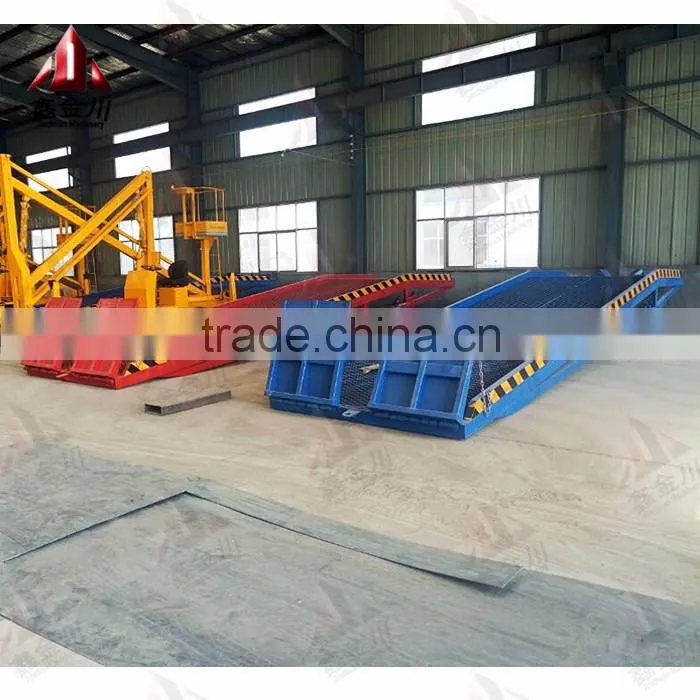

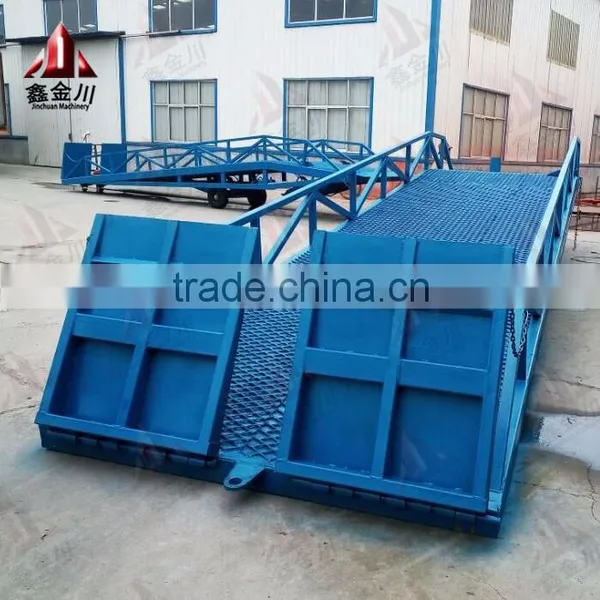

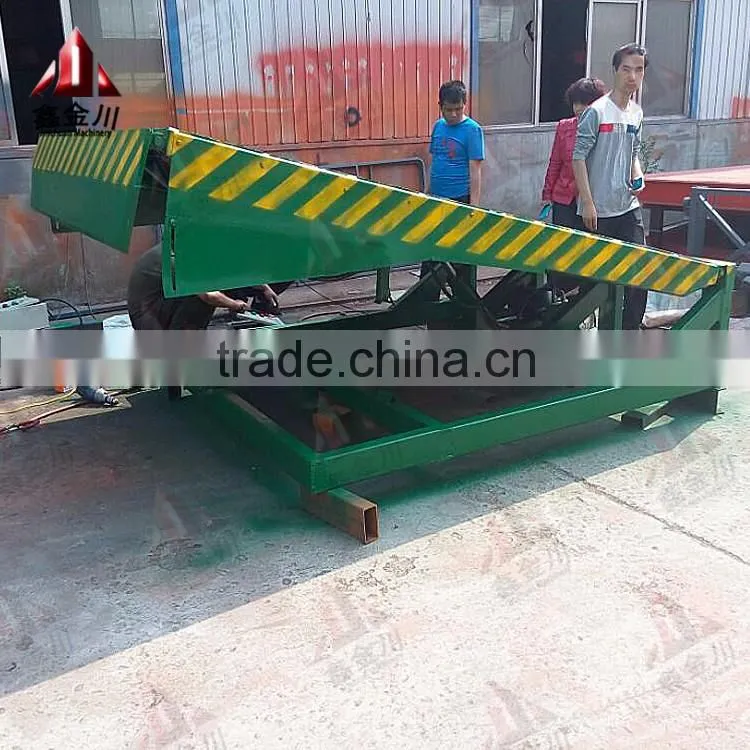

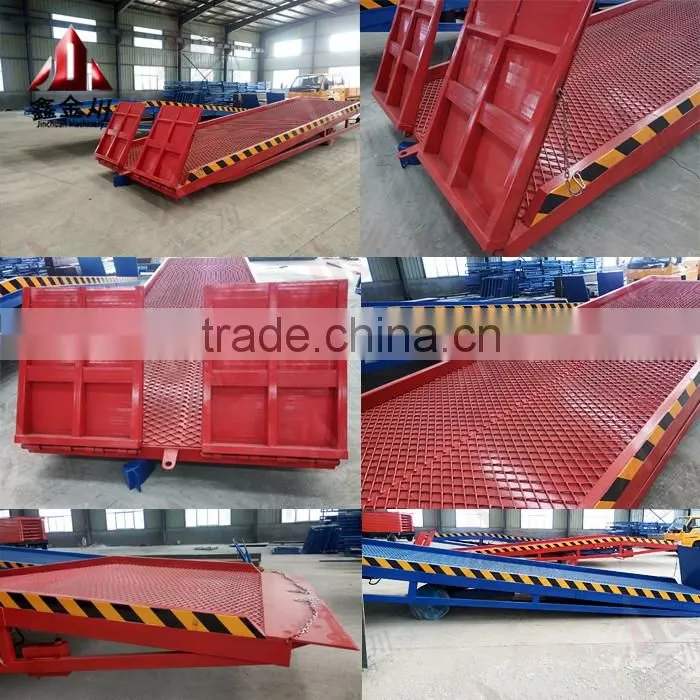

Products show:
Certificate:
Contact us:
Send us inquiry or contact us directly
Jinan Jinchuan Hydraulic Machinery Co.,Ltd
Taixing Road,Jibei Development Zone,JIyang County, Jinan, China.
CEO:Abery
Mobile: +86-18668910306
Tel:+86-0531-84233376
Fax:+86-0531-84233276
Skype: jinchuanlift
Wechat:jinchuan18668910306
QQ:2814559393
Customized service:Yes,only need the below data you demand
1.lifting height
2.platform size:length and width
3.your local power
4.How much load you need
